Summary of Contents for Oakcastle IR100
- Page 1 Instruction Guide IR100 | Internet Radio...
-
Page 2: Table Of Contents
Settings: Alarm Clock ��������������������������������������������������������������� 19 Settings: Alarm Features ��������������������������������������������������������� 20 Settings: Additional Features ���������������������������������������������������22 Remote Control App ����������������������������������������������������������������24 Additional Setting Options �������������������������������������������������������25 Specification ���������������������������������������������������������������������������� 27 Warranty ��������������������������������������������������������������������������������� 27 Safety Information������������������������������������������������������������������� 28 year Register your product for a FREE 3-year warranty warranty at www.oakcastle.co.uk... -
Page 3: Box Contents

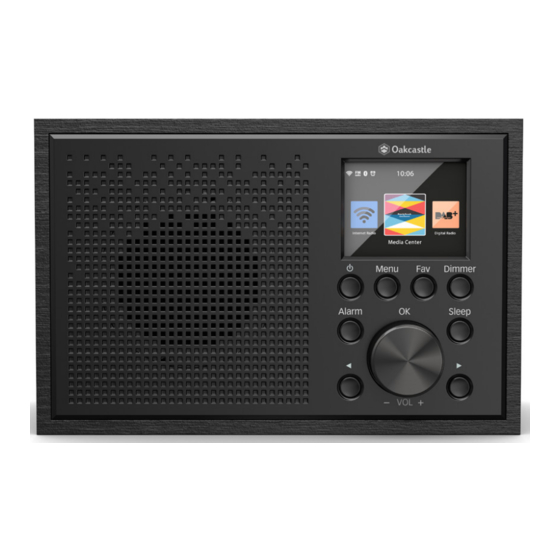

Box Contents What’s in the Box? Oakcastle IR100 Internet Radio Power Adapter Instructions Guide... - Page 4 Controls & Functions Front View/Control Buttons Display screen Navigate/Volume +/- On/Standby Forward button Menu Sleep Alarm Favourite Back button 10. Dimmer button...
-
Page 5: Controls & Functions
Controls & Functions Back View/Control Buttons DC IN LINE OUT 5V 1A 11. On/Off 12. DC in 13. Line Out 14. USB slot... -
Page 6: Support
Support Support Thank you for your purchase of the Oakcastle IR100 internet radio. Please follow the guidance of the manual to set up your new purchase and begin enjoying its features. If you require further assistance with your new radio, please contact our info@oakcastle.co.uk... -
Page 7: Navigation Settings
Instructions Guide Navigation Settings Standby button: This should be used to turn your radio on and off. The Standby screen will display the date, time and any settings set such as alarms. To turn your radio on, press the Standby button to be taken to the home screen or the last station used. -
Page 8: Basic Operation
Plug the adaptor connector into the back of the system labelled ‘DC in’ (Ref.12) and turn the power on from the mains. Switch the button at the back of the radio to ‘ON’ (Ref.11) to display the Oakcastle welcome screen. -
Page 9: Instruction Guide
Instruction Guide Manual WiFi Set-up If you select YES, you will be able to select your chosen WiFi network and enter the WiFi password in the next display screen. Type letters/ numbers by scrolling with the select dial (Ref.6) until the correct digit is displayed and click ‘>’... -
Page 10: Wifi Connection Complete
Instruction Guide WiFi Connection Complete! Once your WiFi is connected by manually entering your WiFi password or via WPS, you will be taken to the main menu screen and the WiFi signal will appear in white at the top left. Your internet radio is now set... -
Page 11: Internet Radio
Instruction Guide Internet Radio Go to the main menu screen by selecting ‘Menu’ (Ref.3) followed by selecting ‘Internet Radio’ . Select ‘Internet Radio’ on the display screen by turning and pressing the Select dial (Ref.6) When in the ‘Internet Radio’ screen there will be multiple options: My Favourite: Your favourite stations will be saved here for easy listening. - Page 12 Instruction Guide Internet Radio Service: Search for an internet radio station or add a new station. To search a new station, select ‘Search Radio Station’ to go to the search tool. Turn the Select dial to highlight the chosen character and click ‘>’...
-
Page 13: Media Centre
Once you have selected UPnP, select the radio from your device to connect and from your phone you may need to select the radio. Both your device and the IR100 radio will need to be connected to the same WiFi network. - Page 14 Instruction Guide Media Centre My Playlist: You can create a playlist of favourite music or media from UPnP. When you are playing the media, press and hold the Select dial from unit or remote control to save it into My Playlist. Access ‘My Playlist’...
-
Page 15: Spotify Connect
Press the ‘Menu’ button (Ref.3) and scroll to the Spotify Connect function. Listen out loud with Spotify Connect Connect your IR100 to your Wi-Fi network Open up the Spotify app on your phone, tablet or laptop using the same wifi network Play a song and select Devices Available. -
Page 16: Information Centre
Instruction Guide Information Centre Go to the main menu screen by selecting ‘Menu’ (Ref.3) followed by selecting ‘Information Centre’ . Weather Information: To select the weather information for a desired place, first select the continent by using the Select dial (Ref.6) to scroll and select. -
Page 17: Connections
Instruction Guide Connections Line Out At the back of the radio, the ‘Line Out’ (Ref.13) port allows for an external amplifier/stereo. Simply connect an AUX cord from the ‘Line Out’ port to the amplifier/ stereo. Begin playing audio from the Internet Radio, Media Centre, Spotify Connect AUX or Bluetooth setting. -
Page 18: Bluetooth
Go to your device settings to connect your device to the radio via Bluetooth. The internet radio’s device will display as ‘Oakcastle IR100’ . Select this radio to connect and your radio should make a short sound, meaning that it is connected. -
Page 19: Configuration Settings
Instruction Guide Configuration Settings Select ‘Configuration’ on the main display screen to browse through a range of display, performance and audio settings. Network: Select this for WiFi and network options Wireless Network Configuration On the Network settings, you can set up a Wi-Fi connection by selecting Wireless Network Configuration. -
Page 20: Settings: Date & Time
Instruction Guide Settings: Date & Time Manually setting date and time There is the option to manually set the time and date instead of using auto-detect to set this up. Go to ‘Configuration’ settings and select ‘Date&Time’ by scrolling and selecting with the Select dial (Ref.6). -
Page 21: Settings: Alarm Clock
Instruction Guide Settings: Alarm Clock Setting Alarm 1/Alarm 2 To set an alarm on your radio, go to ‘Configuration’ settings and scroll through to select ‘Alarm’ or click the ‘Alarm’ button on the front of the radio (Ref.4). After this, select Alarm 1 or Alarm 2 and highlight ‘Turn On’ and select this option (Ref.6). -
Page 22: Settings: Alarm Features
Instruction Guide Settings: Alarm Features 00:00 Everyday Once 00:00 00:00 00:00 00:00 Turn On Repeat: Everyday Time Alarm 1 (Turn O ) Alarm 2 (turn O ) Turn O Time: 00:00 NAP Alarm (Turn O ) Sound: Melody 00 : 00 HH : MM Alarm Volume Input... - Page 23 Instruction Guide Settings: Alarm Features How to put your alarm on snooze When your alarm is sounding, press the ‘Select’ dial (Ref.6) or any other button except ‘Standby’ or ‘Alarm’ to stop the sound and put into Snooze mode. The Snooze function will make the radio sound again in 5 minutes.
-
Page 24: Settings: Additional Features
Instruction Guide Settings: Additional Features The following options are available in Configuration settings: Timer In ‘Configuration’ settings, select the option for ‘Timer’ and a screen with 00:00 will display. To go up in seconds, click the ‘>’ button (Ref.7). To go down in seconds, click the ‘<’... -
Page 25: Software Update
Instruction Guide Settings: Additional Features Software Update Will show here if a software update is available for the radio. If one is available, please select for the update to initiate. Reset to default Select this option to reset your radio and revert all of the settings and presets made. -
Page 26: Remote Control App
Once the app is downloaded, open the app and ensure that your radio is switched on and out of standby mode. The app should then automatically connect to your Oakcastle internet radio. You can now begin controlling your radio via the App. -
Page 27: Additional Setting Options
Instruction Guide Additional Setting Options Time display - Select Analog or Digital Scheduled Playing - Set the radio to start and finish at specified times. Language - Select your chosen language within the list Display - Choose the display to be Colour or Monochrome Power management - Select this to configure the radio to go into standby mode automatically after a set time of inactivity or if there is no WiFi signal. - Page 28 Ensure that you are on Bluetooth mode on the radio and your Bluetooth on your device is switched on. Select the Bluetooth connecting device ‘Oakcastle IR100’ and you should now be able to play audio. Spotify not connecting - Check that your device and your radio are both connected to the same WiFi connection.
-
Page 29: Specification
Weight 690g Warranty All products come with a standard 12 month warranty. All items must www.oakcastle.co.uk be registered on for the warranty to be valid. Once on the web page, use the menu to find “register your product”. You will also be given the chance to extend your warranty for an additional... -
Page 30: Safety Information
