Specifications:
1/4" Mini Angle Die Grinder
Grinder Capacity: .................................1/4"
Free Speed: ........................................ 20,000 rpm
Average Air Consumption: ...................... 2.2 CFM
Operating Pressure: ...............................90 psi
Air Inlet Size: .......................................1/4"
Air Hose: . ..........................................3/8" ID
A-Weighted Sound Pressure Level: ............ 84.1dBA
Sound Power Level: .............................. 95.1 dBA
Vibration in the Handle: .......................... 0.8m/s2
ATD-2122

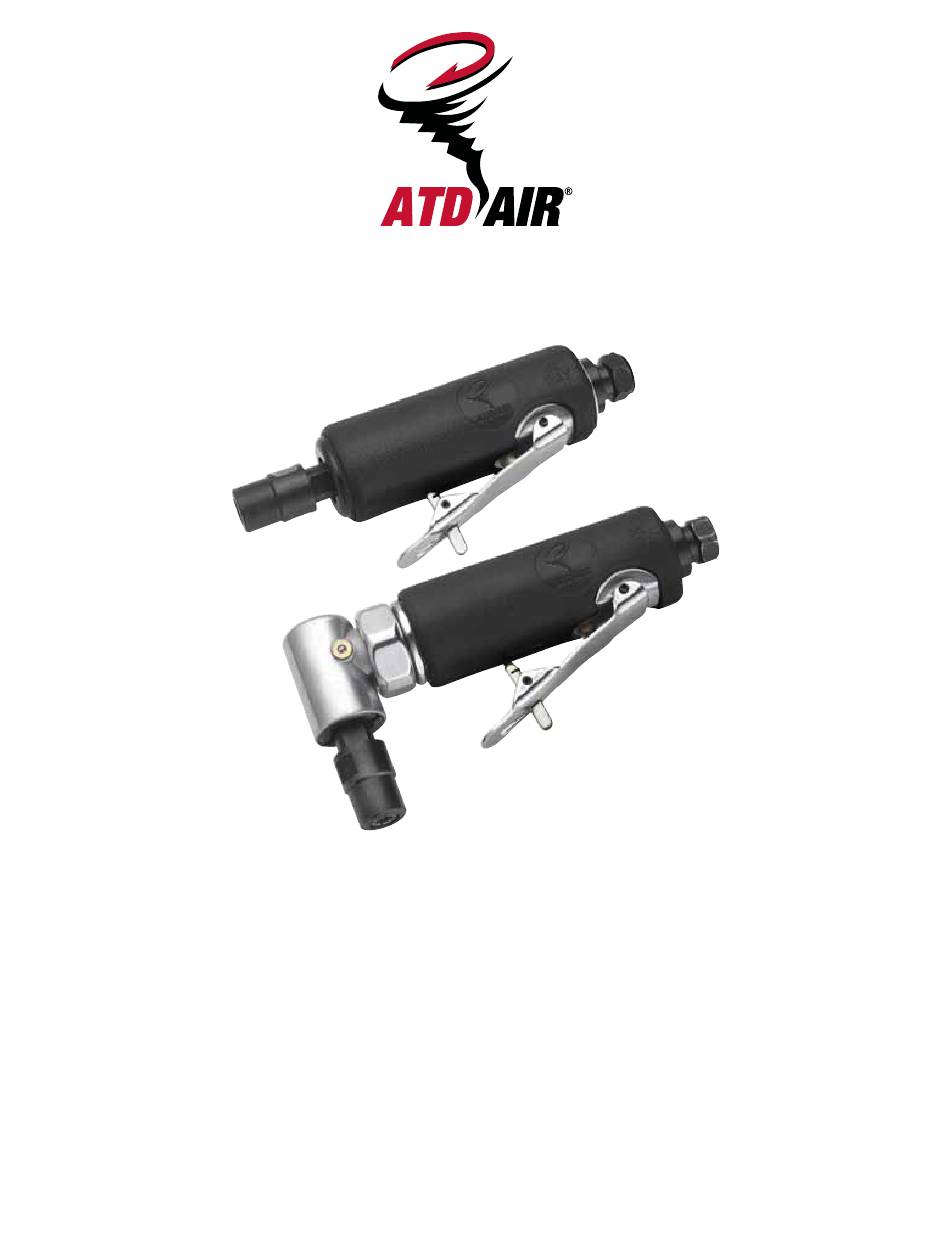

2 Piece Air Die Grinder Set
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
1/4" Mini Die Grinder
Grinder Capacity: .................................1/4"
Free Speed: ........................................ 25,000 rpm
Average Air Consumption: ...................... 3 CFM
Operating Pressure: ...............................90 psi
Air Inlet Size: .......................................1/4"
Air Hose: . ..........................................3/8" ID
A-Weighted Sound Pressure Level: ............ 84.1dBA
Sound Power Level: .............................. 95.1 dBA
Vibration in the Handle: .......................... 0.8m/s2
ATD2122_rev_0118
Advertisement
Table of Contents
Related Manuals for ATD AIR ATD-2122
Summary of Contents for ATD AIR ATD-2122
- Page 1 ATD-2122 2 Piece Air Die Grinder Set Specifications: 1/4” Mini Angle Die Grinder 1/4” Mini Die Grinder Grinder Capacity: ……………………………1/4” Grinder Capacity: ……………………………1/4” Free Speed: ………………………….……… 20,000 rpm Free Speed: ………………………….……… 25,000 rpm Average Air Consumption: …………….…… 2.2 CFM Average Air Consumption: …………….…… 3 CFM Operating Pressure: ………………………….90 psi...
-
Page 2: Safety Instructions
Safety Instructions: 1. When grinding always wear safety goggles, an appropriate face mask and respiratory equipment. 2. Always ensure air tools are switched OFF before connecting to air supply. 3. Disconnect any air tool from the air supply before changing accessories or before servicing any type of air tool. 4. - Page 3 Typical Air Supply Instal Air Supply Whip Hose Filter Do Not Install Nipple Quick Coupler Nipple Here Quick Coupler Lubricator Regulator Leader Hose Drain Daily Figure 1 Loading and Operation: WARNING: Ensure you read, understand and apply safety instructions before use. 1.
-
Page 4: Troubleshooting
Troubleshooting: The following form lists the common operating system with problem and solutions. Please read the form carefully and follow it. WARNING: If any of the following symptoms appear during operation, stop using the tool immediately, or serious personal injury could result. Only qualified persons or an authorized service center can perform repairs or replacement of tool. Disconnect tool from air supply before attempting repair or adjustment. - Page 5 1/4” MINI ANGLE DIE GRINDER PARTS BREAKDOWN ITEM# ORDERING PART# DESCRIPTION ITEM# ORDERING PART# DESCRIPTION PRT2122-01 HOUSING PRT2122-22 ROTOR PRT2122-02 VALVE STEM SEAT PRT2122-23 ROTOR BLADE PRT2122-03 TRIGGER PRT2122-24 CYLINDER PRT2122-04 TRIGGER THROTTLE PRT2122-26 BUSHING PRT2122-05 SPRING PRT2122-27 FRONT PLATE PRT2122-06 TRIGGER RING PRT2122-28...
- Page 6 1/4” MINI DIE GRINDER PARTS BREAKDOWN ITEM# ORDERING PART# DESCRIPTION ITEM# ORDERING PART# DESCRIPTION PRT2122-44 HOUSING PRT2122-17 MUFFLER COVER PRT2122-02 VALVE STEM SEAT PRT2122-18 AIR INLET PLUG PRT2122-03 TRIGGER PRT2122-19 BEARING 625Z PRT2122-47 TRIGGER THROTTLE PRT2122-63 END PLATE PRT2122-48 SPRING PRT2122-21 PIN 2*6 PRT2122-49...
- Page 7 INVOICE/RECEIPT NUMBER: _________________________________________ Your ATD-2122 is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
