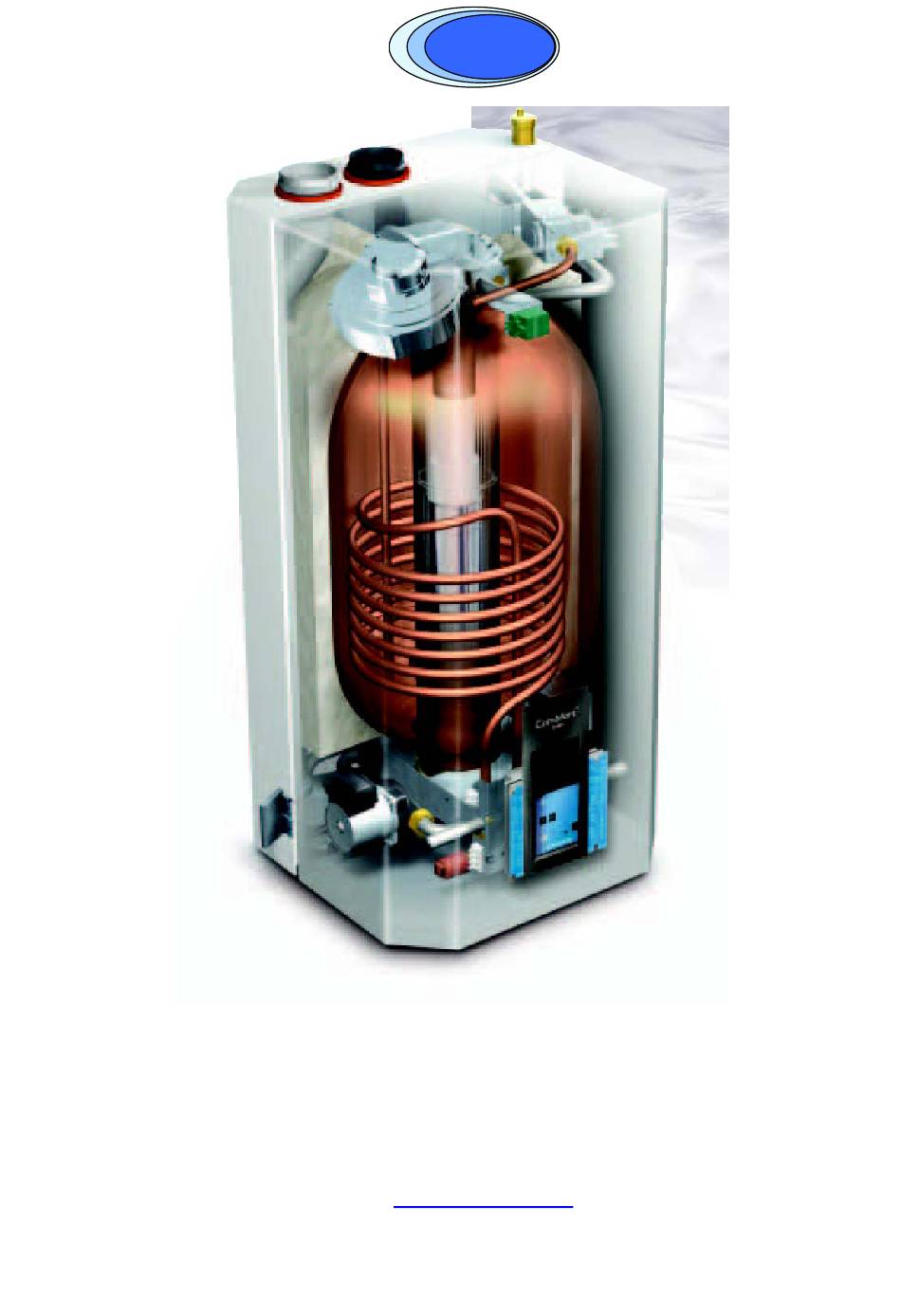

- Page 1 Atmos Multi ATMOS ATMOS Installation of Weather Dependant Control Atmos Heating Systems West March Daventry Northants, NN11 4SA Tel: 01327 871990 Fax: 01327 871905 e-mail: sales@atmos.uk.com internet: www.atmos.uk.com MK2 Issue 7.12.05...
- Page 3 • Installation manual Please note The Atmos Multi is supplied with. • Two holes of 13mm for the PG7 cable glands • Holes to fit the cable connector • A cable socket on the controller to take the K4b cable plug...
- Page 4 Preferably, the outside sensor should be mounted to a north facing wall. Don’t put the sensor somewhere where it might be affected by (the warmth of) sun light, chimneys, air vents or an open window. ATMOS MULTI Weather Dependant Control Page 4...
- Page 5 (top left) should be connected to a time clock, or linked out to give continuous operation. Note that this is a 24volt circuit and must only be connected to voltage free contacts. Fig 4 Fig 5 ATMOS MULTI Weather Dependant Control Page 5...
- Page 6 6) Proceed though the remainder of the functions in the same manner: - • Different function : Press ‘Hot water’ button • Next setting Press ‘Set’ button • Different value Press ‘Hot water’ button • Exit sub-program Press ‘Reset’ button (or automatically after 5 mins) ATMOS MULTI Weather Dependant Control Page 6...
- Page 7 Note: Fine tuning of the settings may be necessary over several weeks. It is recommended not to readjust the setting until two or three days have elapsed. Fig 6 ATMOS MULTI Weather Dependant Control Page 7...
