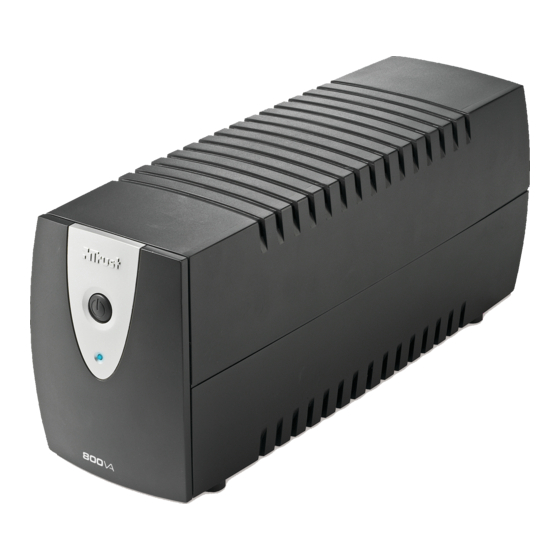

PW-4040T/4050T/4060T/4080T 400VA/500VA/600VA/800VA UPS

Product information

A: On/Off button
B: Status LED
- AC power: Lit steady
- Battery power: Lit flash

Installation

1 PC off
Use power cable from PC to connect UPS to AC socket
Use loop through cable (I) to connect PC to UPS Backup output (H)
2
Device connected to Surge Only output (G) does not get UPS backup!
UPS least 20cm away from monitor!
UPS on
3
The UPS might be battery low due to its self-discharge characteristic; suggest to charge 8 hours before using
battery power!
4 PC on

Replacing fuse

5 UPS completely off
Use fuse of same rating (250V, 8A)!
(B) stores a backup fuse!
6
Open fuse holder
Replace a proper fuse at position A

Reminder

UPS is charged only when AC power is supplied and UPS is on!
Fully discharge then recharge the battery every 3 months for longer battery life!
Connect incoming analogue phone line to D; Connect a telephone or modem to C!
Backup time is related to the connected devices and battery condition!
UPS does not have dial-up function nor smart management like message alarm!
Conductive device, like laser printer, is suggested to connect to the Surge Only output!
Specif
ication
Model
Operation type
Output capacity
C: Phone/Modem out
D: Phone line in
E: AC input
F: Fuse holder
14395
14422
400VA /240W
500VA / 300W
1
G: Surge only output
H: Backup output
I: Loop through cables
14396
Line Interactive
600VA /360W
UK
14397
800VA /480W
