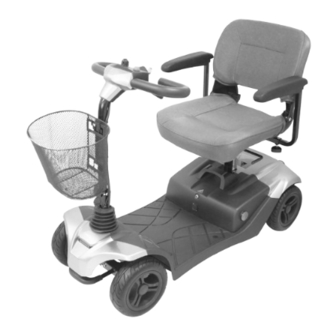

MOBILITY SCOOTER
MOBILITY SCOOTER
MOBILITY SCOOTER
EW-M41
Instruction Booklet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW-M41 and is the answer not in the manual?

Questions and answers

Summary of Contents for EWheels Medical EW-M41

  • Page 1 MOBILITY SCOOTER MOBILITY SCOOTER MOBILITY SCOOTER EW-M41 Instruction Booklet...
  • Page 2: Table Of Contents

    EW-M41 Instruction Booklet TABLE OF CONTENTS INTRODUCTION ----------------------------------------------------------1 ------------------------------------------2 IMPORTANT PRECAUTIONS SAFETY INFORMATION ON ELECTROMAGNETIC INTERFERENCE (EMI) --------------------------------------------------3 -------------------------------------------5 IDENTIFICATION OF PARTS --------------------6 SAFETY WARNING & INSTRUCTION LABELS ---------------------------------------7 OPERATING YOUR SCOOTER CHARGING THE BATTERIES ----------------------------------------10 DISASSEMBLING YOUR SCOOTER -------------------------------12...
  • Page 3: Introduction

    Scooter. It is designed to provide you with transportation ability indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction. We sincerely hope you enjoy your Ewheels Medical Mobility Scooter.
  • Page 4: Important Precautions

    EW-M41 Instruction Booklet IMPORTANT PRECAUTIONS •Only one person at a time could ride a Ewheels Medical Mobility Scooter. •Maximum load is 136 kg / 300 Ibs pounds. •Turn the key off before getting on or off. •Always drive carefully and be aware of others using the same area.
  • Page 5: Safety Information On Electromagnetic Interference (Emi)

    EW-M41 Instruction Booklet SAFETY INFORMATION ON ELECTROMAGNETIC INTERFERENCE (EMI) CAUTION : It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorised scooter. Powered wheelchairs and motorised scooters may be susceptible to electromagnetic...
  • Page 6 EW-M41 Instruction Booklet Motorised Scooter Electromagnetic Interference : Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorised scooter control system while using these devices.
  • Page 7: Identification Of Parts

    Figure 1 - EW-M41 Front View Rear Light (Optional Accessory) Self-Diagnostic Warning Light Battery Gauge Horn Button Reflectors Free- Wheeling Lever Speed Dial Knob Throttle Main Key Switch Anti-Tip Wheels Figure 2 - EW-M41 Top Control Panel Figure 3 - EW-M41 Back View...
  • Page 8: Safety Warning & Instruction Labels

    Instruction Booklet SAFETY WARNING & INSTRUCTION LABELS Serial no. EU representative label Power warning label Instruction of battery lock nut label Figure 4 - EW-M41 Front View Warning label Keep hands away Instruction label Dismantling the front and rear frame of scooter...
  • Page 9: Operating Your Scooter

    EW-M41 Instruction Booklet OPERATING YOUR SCOOTER Before operation, please remove the Lock Nut (A) and press button of Circuit Breaker (B) to activate the system. FUNCTION OF PARTS: Main Key Switch (C) 1.Turn the key to the right Turn the scooter on.
  • Page 10 EW-M41 Instruction Booklet Tiller Angle Adjustment : 1.Turn the Cap (I) (outward upward) to disengage the pin. 2.Simultaneously, adjust the tiller fore-and-aft to the most comfortable angle. Release Cap (I) and ensure the pin is fully engaged to lock the tiller in position.
  • Page 11 EW-M41 Instruction Booklet Basket assembling and disassembling : 1.Place the Front Basket (M) to the bracket on the tiller. 2.Remove the Front Basket (M) and place it aside. 3.Weight : 3kg Armrest assembling and angle adjustment : 1.Adjust armrest to most comfortable length, then lock the Knob (N).
  • Page 12: Charging The Batteries

    Instruction Booklet CHARGING THE BATTERIES Your Ewheels Medical scooter is equipped with two sealed, maintanence free 12V. 22ah lead acid. rechargeable batteries and one EW-M41 24V/5A charger. Batteries must be charged before using the scooter for first time and should be recharged after each day's use. Ensure the power switch is in the OFF position and free-wheeling lever is not in freewheel mode.
  • Page 13 EW-M41 Instruction Booklet Keep in mind these rules: •Fully charge the batteries at least once a month, or more if you use scooter regularly. Charge after each trip exceeding 3 kilometers. •If storing your scooter for some time (1 month or more), make sure that batteries are fully charged, and on returning, charge them again before using the scooter.
  • Page 14: Disassembling Your Scooter

    EW-M41 Instruction Booklet DISASSEMBLING YOUR SCOOTER I. Seat Disassembling : Remove seat by lifting Seat Rotation Lever (J). Then rotate Seat (K) and lift up away from scooter. II. Battery Pack Disassembling : As indication, pull Battery Pack Handle (R) to remove Battery Box (S) from scooter.
  • Page 15: Troubleshooting

    EW-M41 Instruction Booklet TROUBLESHOOTING Flash Description Meaning Battery Low The batteries are running low. •Recharge the batteries Low Battery Fault The batteries have run out of charge. •Recharge the batteries. High Battery Fault Battery voltage is too high. This may occur if overcharged &/or traveling down a long slope.
  • Page 16: Care And Maintenance

    EW-M41 Instruction Booklet CARE AND MAINTENANCE Recommended maintenance procedures : 1.Before using the mobility scooter, make sure all nuts and bolts are tight. Check all parts for damage or wear and replace where required. Check all parts for correct placements and adequate adjustments.
  • Page 17: Caution

    EW-M41 Instruction Booklet CAUTION 1.Obstacle Climbing : Your scooter can climb obstacles and kerbs of up to 40mm / 1.6" in height. Never attempt to overcome an obstacle when on an uphill or downhill gradient! Always approach obstacles straight on! Ensure that the front wheels and rear wheels move over the obstacle in one stroke, do not stop halfway! 2.The maximum gap the scooter can drive over is 100mm / 4",...
  • Page 18: Specification

    EW-M41 Instruction Booklet SPECIFICATION Overall Length 44" Overall Width 23" Overall Height 37" Front Wheels 9" Rear Wheels 9" Weight W/ Batteries 121 lbs 38 lbs Weight Of Heaviest Piece Max. Speed 5 mph Weight Capacity 300 lbs Ground Clearance 2"...
