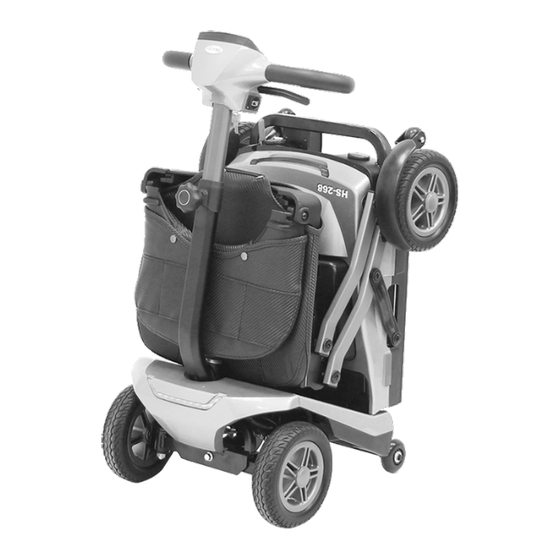

- Page 1 MOBILITY SCOOTER MOBILITY SCOOTER MOBILITY SCOOTER REMO AUTO-FLEX Instruction Booklet...
-
Page 2: Table Of Contents
REMO AUTO-FLEX Instruction Booklet TABLE OF CONTENTS 01.INTRODUCTION ..................1 02.IMPORTANT PRECAUTIONS ..............2 2-1 BEFORE DRIVING SCOOTER 2-2 CAUTIONS WHEN DRIVING 2-3 CAUTIONS WHEN FOLDING / UNFOLDING SCOOTER 2-4 CAUTIONS WHEN DRIVING ON INCLINE 2-5 CAUTIONS WHEN CLIMBING 2-6 ELECTROMAGNETIC INTERFERENCE AND WARNINGS 2-7 SAFETY WARNING AND INSTRUCTION LABELS 03.IDENTIFICATION OF PARTS... -
Page 3: Introduction
We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction. We sincerely hope you enjoy your Ewheels Medical mobility scooter. Please read and observe all warnings and instructions provided in owner’s manual before your operate the various functions of this scooter. -
Page 4: Important Precautions
REMO AUTO-FLEX Instruction Booklet 2.IMPORTANT PRECAUTIONS 2-1 BEFORE DRIVING SCOOTER •Before take the first trip with mobility scooter, you should familiarize yourself well with the operation of mobility scooter and with the operation elements. Please take your time to read this introduction booklet. -
Page 5: Cautions When Driving
REMO AUTO-FLEX Instruction Booklet •Be certain that the power is turned off when get in, get out. This will eliminate the possibility of accidentally activating the wigwag controls and causing injury. •Keep your weight toward the middle of the deck. Putting most or all of your weight on the edge of the deck may cause an unstable condition. -
Page 6: Cautions When Folding/Unfolding Scooter
REMO AUTO-FLEX Instruction Booklet •When turning, reduce your speed and maintain a stable center of gravity. This greatly reduces the possibility of a tip or fall. •Do not bounce or jam on the footplate. •Please always set the speed control to its lowest speed when you start to drive, and observe all relevant rules and regulations pertaining to pedestrians and road users at all times. -
Page 7: Cautions When Driving On Incline
REMO AUTO-FLEX Instruction Booklet •When folding or unfolding, you must place and lay down the scooter on a flat ground (Fig. 2) Figure 1 Figure 2 •Do not place scooter on a slope •Place and laydown the scooter when scooter is folded and standing. -
Page 8: Electromagnetic Interference And Warnings
REMO AUTO-FLEX Instruction Booklet 2-6 ELECTROMAGNETIC INTERFERENCE AND WARNINGS It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your mobility scooter. Mobility scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and mobile phones. -
Page 9: Safety Warning And Instruction Labels
REMO AUTO-FLEX Instruction Booklet Following the warnings listed below should reduce the chance of unintended brake release or mobility scooter movement which could result in serious injury. 1.Do not operate hand-held transceivers (transmitters-receivers), such as citizens band (CB) radios, or turn ON personal communication devices, such as mobile phones, while the mobility scooter is turned ON;... -
Page 10: Identification Of Parts
REMO AUTO-FLEX Instruction Booklet 3. IDENTIFICATION OF PARTS Figure 4 ITEM ITEM Steering Seat Tiller Height Adjustment Seat Backrest Head Light Seat Knob Front Wheels Battery Box Footplate Cover Battery Box Handle Seat Springs Charging Port (battery box) Supporting Wheels... -
Page 11: Introduction & Operation Of Scooter
REMO AUTO-FLEX Instruction Booklet 4.INTRODUCTION & OPERATION OF SCOOTER 4-1 IDENTIFICATION & OPERATION OF CONTROL PANEL Figure 5 - REMO AUTO-FLEX Control Panel ITEM FUNCTION Speed Deceleration Press to decrease speed Power Switch Press to turn on / off the power... - Page 12 REMO AUTO-FLEX Instruction Booklet Digital Unlock Your Scooter： •Press the power switch, the power (red light) will be on standby for you to unlock. •To unlock, enter your password on the number pad (D), light indicator (C) will light up each time when the number is entered.
-
Page 13: Operation Of Main Switch
REMO AUTO-FLEX Instruction Booklet Battery / Error Light Indicator： The light will be showing the battery status or errors of scooter. If scooter has errors, the light indicator will be flashing (see section 8). This light indicator is also the indication of battery status (see section 6-3). -
Page 14: Operation Of Throttle
REMO AUTO-FLEX Instruction Booklet 4-3 OPERATION OF THROTTLE Throttle： •Pull the right throttle (F) to move scooter forward. Pull the left throttle (G) to move scooter backward. This can be reserved if required by local dealer. (Figure 16) •These are also your accelerator. The further you depress them, the faster you go. -
Page 15: Folding / Unfolding Your Scooter
REMO AUTO-FLEX Instruction Booklet Seat Dismantle (Figure 21.22)： 1.Loosen the screws (L) by hex wrench (Fig.21) 2.Remove the springs (K) connected on the seat slide bracket. 3.Pull down and hold the seat springs (I) and push the seat by thumbs towards the back of scooter to release the seat from latch (J). - Page 16 REMO AUTO-FLEX Instruction Booklet •The remote is not designed to be water-proof, please keep it away from humid environment. •Best transmit range of remote is within 10m. (The reading range will be affected due to the environment, barrier, and weather).
-
Page 17: Battery Gauge & Charging The Batteries
REMO AUTO-FLEX Instruction Booklet Figure 26 •Please turn off the power before folding / unfolding, the scooter can only be folding / unfolding when it is power off, the folding / unfolding light indicator will be orange. •There is protection for tapping error; scooter cannot be unfolding when it is in standing position. -
Page 18: Cautions For Battery & Charger
REMO AUTO-FLEX Instruction Booklet 6-2 CAUTIONS FOR BATTERY & CHARGER Lithium Battery： •Only certain type and voltage of battery can be used on the scooter. Your scooter may supply with standard lithium battery or optional lead-acid battery. •Scooter can be charged when it’s folded or unfolded •Only use the lithium battery charger (under 4 Amps) supplied with your scooter for lithium... -
Page 19: Battery Gauge
REMO AUTO-FLEX Instruction Booklet •Be aware that the battery charger case may become hot during charging. Please avoid skin contact. •Do not cover charger by any objects. Use the charger in a well-ventilated area. Do not smoke as explosive gases may be generated while charging the batteries •Keep the charger stored in a well-ventilated area, do not drop the charger. - Page 20 REMO AUTO-FLEX Instruction Booklet Lead-acid Battery Charger： •Output Voltage: 100V~240V (Figure 30) 1.Charger output cable, 3pins connector (U) 2.AC power cord (V) 3.LED Indicator(W) - RED LIGHT ON : Pre-charging - ORANGE LIGHT ON : Normal Charging Figure 30 - GREEN LIGHT ON: Fully Charged.
-
Page 21: Care And Maintenance
REMO AUTO-FLEX Instruction Booklet 5.When unplug, please make sure to remove the AC cord from the wall first, and then charger output cable from the charge port. 6.put the cap back to cover charging port before install the battery box back to scooter. -
Page 22: Cleaning And Maintenance
REMO AUTO-FLEX Instruction Booklet WEEKLY CHECK Check point Inspection What to do if the inspection is failed Check if the parts are clean and firmly tighten to the scooter and do not Armrests Contact your dealer. wobble. Tighten the screw knob that holds the armrest. - Page 23 REMO AUTO-FLEX Instruction Booklet Tire : Only use damp cloth to wipe. Do not use abrasive cleaners as this will damage the parts. User should inspect the tires frequently for damage, the presence of foreign bodies, unusual wear and sufficient tread depth. If replacement of tires are needed, please contact the nearest dealer.
-
Page 24: Trouble Shooting
REMO AUTO-FLEX Instruction Booklet 8.TROUBLE SHOOTING Here are some suggestions about solving problems you may have with your scooter. There is a self-diagnostic warning light on the control panel. To check the self-diagnostic warning light, turn on the key (power) switch (see section 4-2) and count the number of blinks on the warning light. - Page 25 REMO AUTO-FLEX Instruction Booklet Folding / Unfolding Errors： Here are some suggestions about solving problems you may have when folding / unfolding your scooter. The scooter will stop the folding / unfolding actions if errors are detected. Please refer to below table and correct the problems.
-
Page 26: Other Information
REMO AUTO-FLEX Instruction Booklet 9.OTHER INFORMATION 9-1 Options We offer below options to add functionality for your scooter, please contact the authorized dealer for more information. •We reserve the rights to modify or change the accessories. •Please read through the cautions for battery and charger (section 6) if optional lead- acid battery is purchased. -
Page 27: Technical Specifications
REMO AUTO-FLEX Instruction Booklet 10.TECHNICAL SPECIFICATIONS Specification Auto-folding Folded : 30.5" Overall Length Unfolded : 37.5" Folded : 19.4" Overall Width Unfolded : 19.7” Folded : 20.1" Overall Height Unfolded : 37.8" Front Wheels 8” Rear Wheels 8” Weight W/ Batteries 67.5 lbs...
