Summary of Contents for Roca GEORGIA

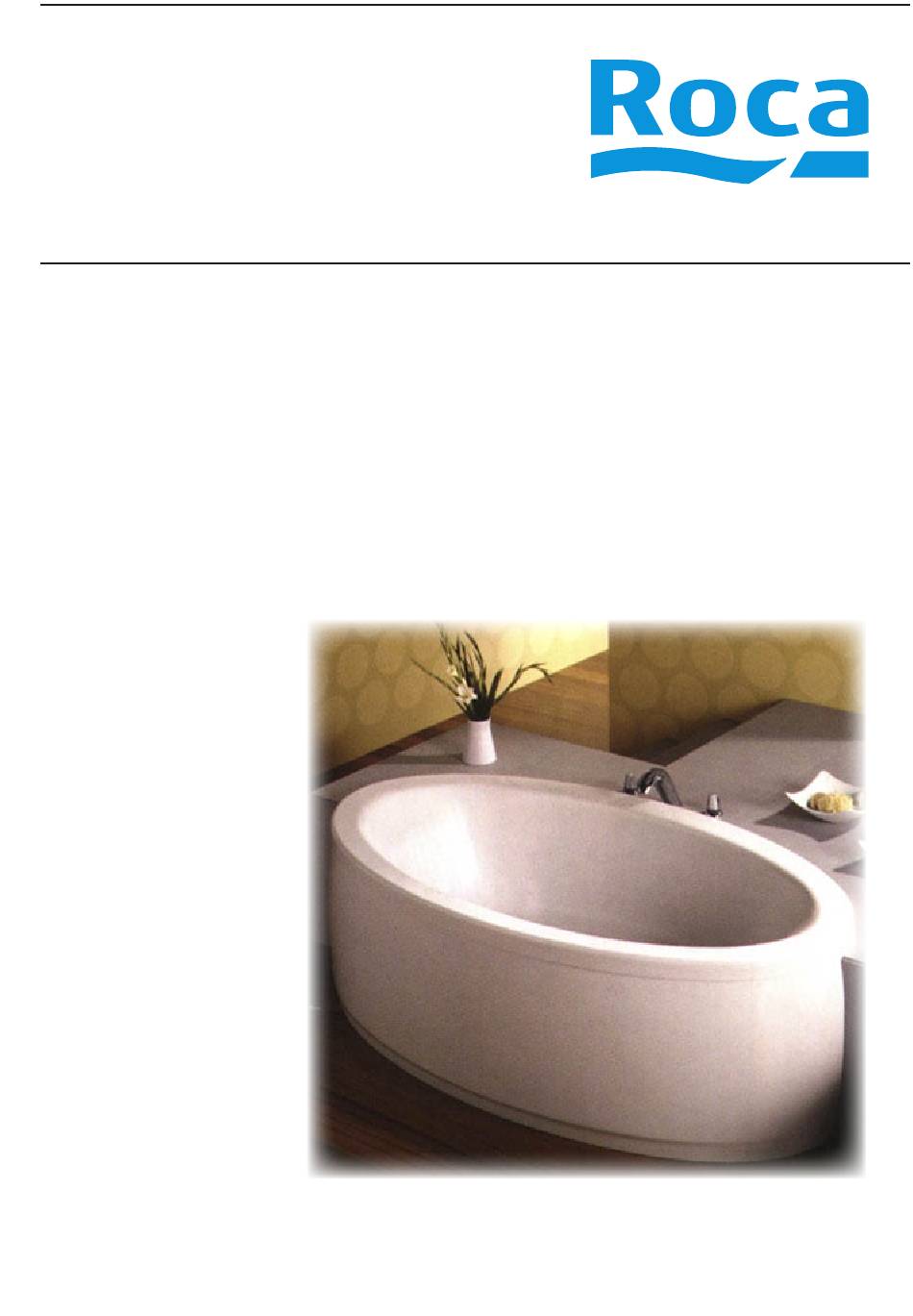

  • Page 1 Installation instructions Front panel GEORGIA...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. DESCRIPTION OF MATERIAL ......................... 2. PREPARING THE BATHTUB ........................3. ASSEMBLING THE FOUR SUPPORTS FOR THE FIRST PANEL ............3.1. Central support units ........................3.2. End support units ..........................4. ASSEMBLING THE FIRST PANEL ......................5. ASSEMBLING THE SECOND PANEL ......................
  • Page 3 ���� � � � � � � � � � � � � � � � � � � � ��� �� � � ����� ���� � ������� � ������ ���� � ���� � ������� ������� ����� ��� ������� ����� �...
  • Page 4: Description Of Material

    Congratulations on your choice and thank you for purchasing the Georgia panelled bathtub by Roca. This manual is a basic guide for correct installation. Besides this manual, you should also consult the Georgia bathtub User and Installation Manuals for complete installation. 1. DESCRIPTION OF MATERIAL...
  • Page 5: Assembling The Four Supports For The First Panel

    3. ASSEMBLING THE 4 SUPPORTS OF THE FIRST PANEL Ensuring you do not alter the level, remove the upper locknuts (A) and the flat washer on the rods that form part of the tub legs (B). Then place the supplied serrated washer and screw the nut back on, leaving a space between the levelling crosspiece of the legs and the serrated washer with the nut, so that the panel support units (C) can be later fitted (see figure 4, close-up of the central unit).
  • Page 6 The left central support shall be seated approximately 60˚ to the left in relation to the bathtub leg (see photo III). Approx. 60˚ LEFT CENTRAL SUPPORT The right central support shall be seated approximately 60˚to the right in relation to the bathtub leg (see photo IV). Approx.
  • Page 7: End Support Units

    Once the fittings are at the correct angle, place the stop (W) as shown in photo V and Ib. Put the long part of the stop through the hole in the crosspiece (B) and, with the short end of the stop, fasten the edge of the horizontal support (C).
  • Page 8 Important! Before directly fitting the swivel piece (C) to the threa- ded (M10) rod, fit the upper end of the unit (figure 2), adjusting the threaded rod (G) so that it is tight against the inside edge of the tub, together with the upper support and its support plate (F).
  • Page 9: Assembling The First Panel

    The lower plug shall be approximately level with the edge of the tub, together with the support bases (see photo VIII). Vlll END SUPPORT Vlll Approx. flush. Approx. flush. Approx. flush. 4. ASSEMBLING THE FIRST PANEL Position the panel (see photo IX).
  • Page 10: Assembling The Second Panel

    Mark the position of the hole in the panel with regard to the left and right end plugs. Important! It is only necessary to drill holes in the ends of the panel, not in the centre (see figures 7 and 8). Drill the panel in the place you have marked and at approximately 60 mm above the floor (see Approx.
  • Page 11 As indicated previously in section 4, place the second panel over the other end of the joint section (X) on the first panel installed, as shown in figure 8. If necessary, for one panel to fit better on to the other, remove the joint section and put it back when the second panel is in position.
