- Page 1 《Fun Sandbag II》 Instruction manual - 0 -...
-
Page 2: Table Of Contents
Safety Precautions Attention DO NOT put the machine on places uneven, sloping and easily be shaken. Check wires and cables regularly Protect wires from damage by rats. DO Not put the machine under the direct sunlight, it will damage the inside parts. Warning ... -
Page 3: Specification And Parameter
I. Specification and Parameter (1)．Voltage：AC 220V± 10% 50Hz± 3 Hz；AC 110V± 10% 50Hz± 3 Hz； (2)．Power： 300 W（MIN） 500 W（MAX）； (3)．Size：L3150*W1800mm*H3280mm； (4)．Weight: 350KGS Parts: After unpacked the machine, please check the parts: (1) main board 2 pieces; (2) other parts as follows： Item Size Unit... -
Page 4: Placing, Fixing, Moving

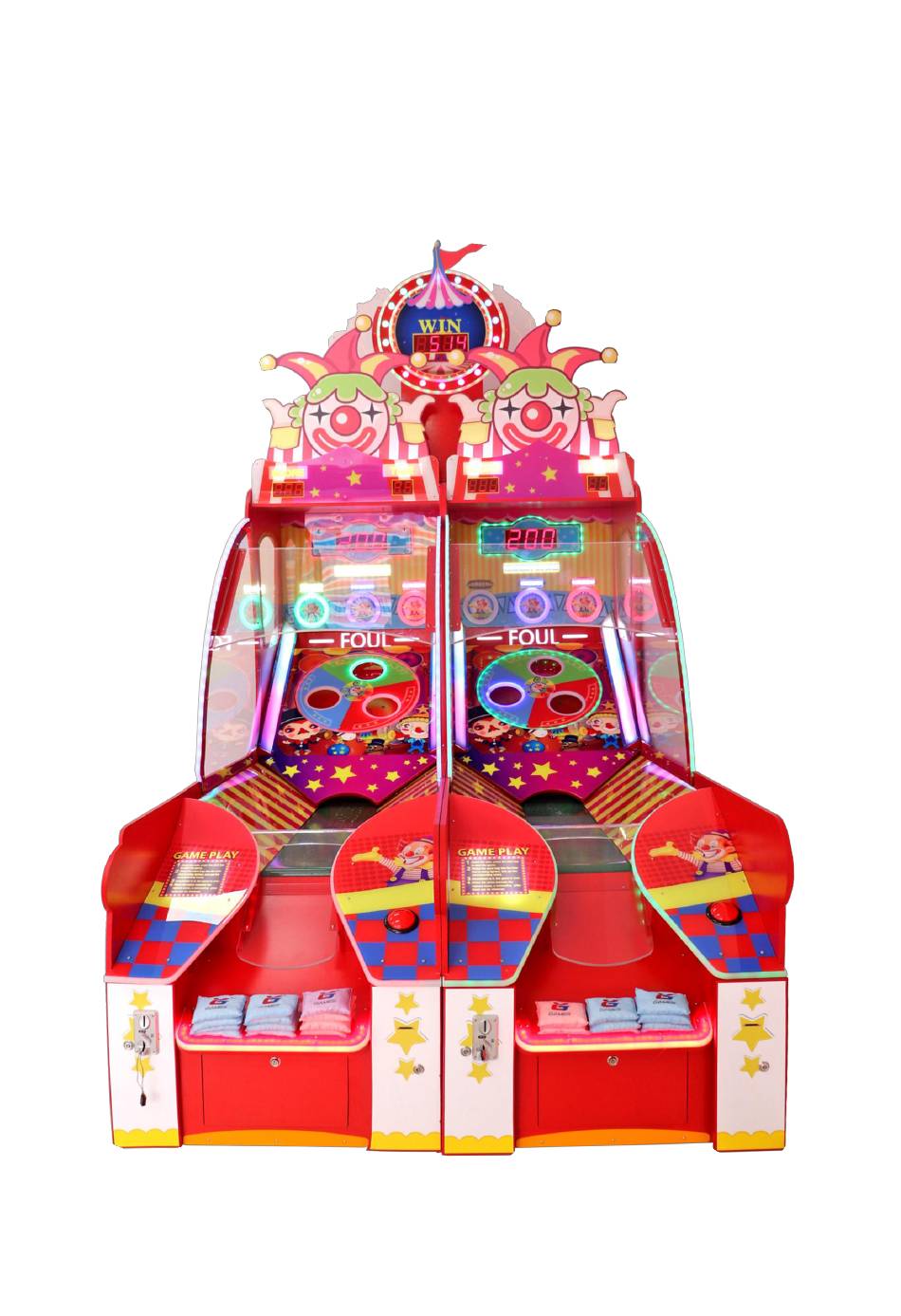

II. Placing, Fixing, Moving 1) put in a certain place: Warning: This machine is suitable for indoor use, outdoor use will affect the performance of the machine, and will shorten the service life of the machine. Setting range size: Company（mm） The machine should be placed in the following dimensions, so that there is enough space for the machine to run and ensure the safety of the customers. - Page 5 III. Machine Instruction: 3-1. appearance： Top decoration board Score Score Highest score Score light ring blinking Score light ring Sandbag slip board Conveyor belt Start button Speaker Ticket dispenser Coin selector Key 6086 - 4 -...
- Page 6 3-2. Inside： Ticket Coin code Ticket code dispenser table table Ticket box Coin box Control Synchronous board for belt Power supply motor screen Main board Wheel motor F206 bearing Conducting ring 220V plug 3-3 Inside parts: 1) Coin code table: look at the value of the coin code table to know the operating income.
-
Page 7: How To Play
The best way is to use a multi-meter to measure. In addition, the mother board can test all the components and lights are working. Test step: press main board “TEST” button 10 second enter test. Tips: press “SERVER” button, until LCD light blinking 3 times, then go to next step. -
Page 8: Game Setting, Io Board
V. Game setting, IO board 1) Main board Main board signal input/output Circuit board Function Signal Connect main board P5-3:B+ 568B wire Connect main board P5-6:B- Connect main board P5-1:A+ Connect main board P5-2:A- - 7 -... - Page 9 4\5\7\8 Connect main board 4\5\7\8 <500mA LCD-CS1 LCD-CS2 LCD-CS3 LCD-CS Screen RS Connect to screen LCD-SID Screen R/W Connect to screen LCD-SCK Screen E Connect to screen XIN1 Input #1 Coin signal output XIN2 Input #2 Ticket dispenser signal XIN3 Input #3 XIN4 Input #4...
- Page 10 12V output XIN13 Input #13 XIN14 Input #14 XIN15 Input #15 XIN16 Input #16 XIN17 Input #17 +(K2) XIN18 Input #18 -(K3) XIN19 Input #19 Next (K1) XIN20 Input #20 Set&Save button(K4) SP-L Left speaker Speaker SP-R Right speaker PHA- Motor A- PHA+ Motor A+...
- Page 11 Output #7 Ring #3 red light Output #8 Foul right light Output #9 Streak light signal XO10 Output #10 Conveyor motor XO11 Output #11 Wheel motor positive rotating XO12 Output #12 Wheel motor reverse rotating XO13 Output #13 XO14 Output #14 11\12 13\14\1 XLED-SDO1...
- Page 12 2) Direction/reverse motor control board: 3) LCD screen: Front Back 4) Setting data: The DIP button: left is OFF, right is ON. - 11 - Parameter table...
-
Page 13: Assemble Instruction
Factory Code Content Range Content description setting Language selection 0: Chinese 1: English The number of money The amount of money needed 1-99 required for each bureau for a game Whether to win the lottery 0: No lottery 1: lottery Whether the number of tickets and the number of 0: not save... - Page 14 1) First put the front part with the conveyor part together, use M6*16 screws to fix it tight (12 pcs screw), like below picture: 2) Then use M4*12 screws to fix (16 pcs screw), as below pictures: Screw position 16 pieces screw 3) Use M5*16 screw to fix the 2 side transparent acrylic (14 pcs screw), must plug the colorful light, like below picture: Screw...
-
Page 15: Maintenance
4) Use M6*10 screw, fix the middle transparent acrylic with the 2 side acrylic (4 pcs screw), as below: 5) Last use M5*16 screw, fix the metal well, then put and fix the top decoration board(12 pcs screw), as below: VII.
