Introduction

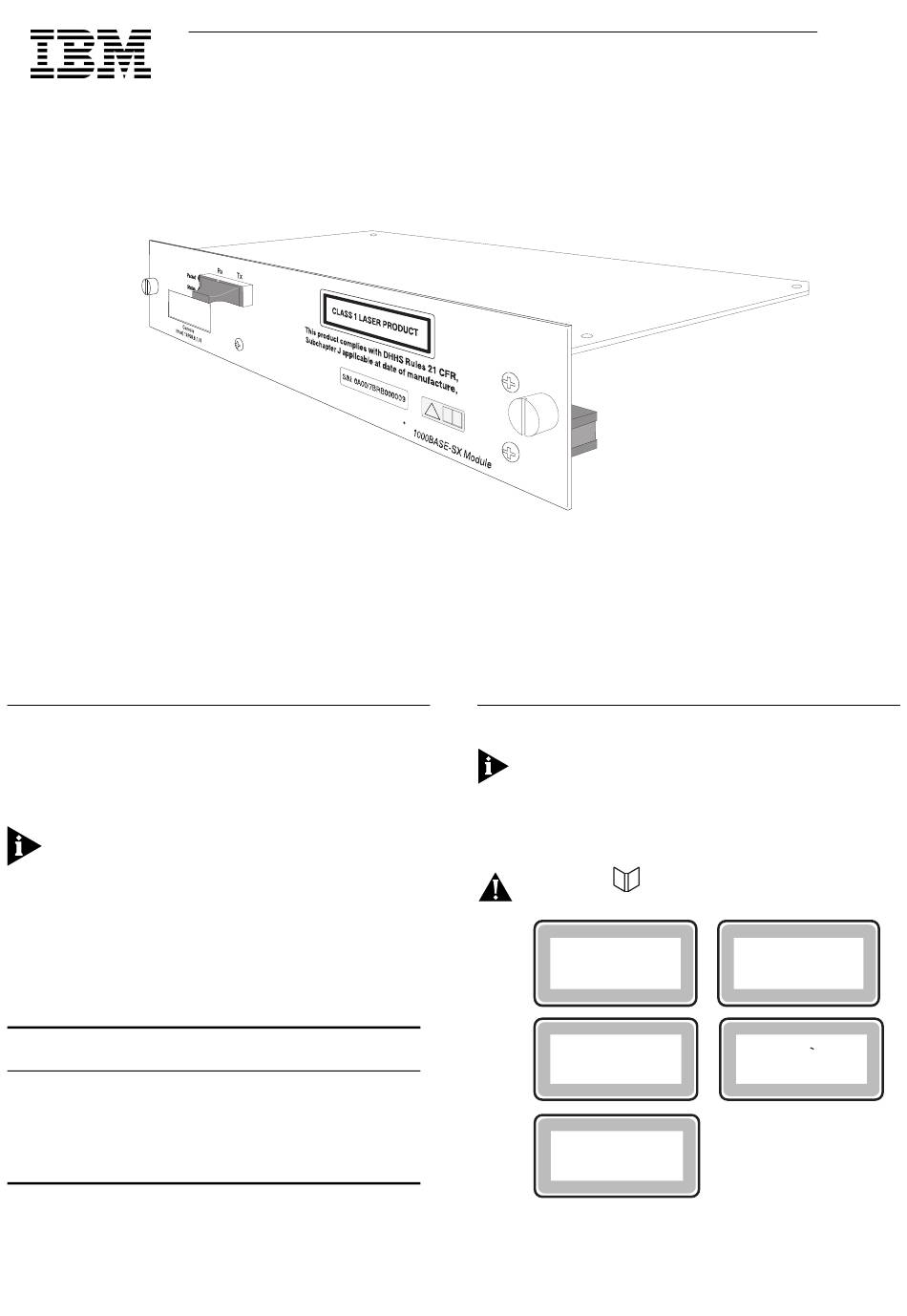

The IBM 8271 Nways Ethernet LAN Switch 1000BASE-SX
Module provides an 850nm Gigabit Ethernet fiber port
for units in the IBM 8271 Nways Ethernet LAN Switch
E12/E24 and F12/F24 family.
The module requires management software version 2.0
or later to be installed on the Switch. For instructions on
upgrading management software, refer to the documen-
tation supplied with your Switch.
The module conforms to the full duplex implementation
of the Gigabit Ethernet standard, IEEE 802.3z. The port
uses 62.5/125µm or 50/125µm multimode fiber cable
with SC duplex connectors, and supports the segment
lengths described below.
Fiber Size
Fiber Bandwidth
62.5/125µm
160MHz/km
200MHz/km
50/125µm
400MHz/km
500MHz/km
IBM 8271 Nways Ethernet LAN Switch 1000BASE-SX Module
(02L0894)
Segment Lengths
Supported
2m–220m (7ft–722ft)
2m–275m (7ft–902ft)
2m–500m (7ft–1641ft)
2m–550m (7ft–1805ft)

Before Installation

ATTENTION: Before installing the 1000BASE-SX Module
into a Switch, you must disconnect the Switch from the
mains power supply.
For full safety instructions, refer to the appropriate
Switch User's Guide.
DANGER:
LED Product
02L0896
1
SD21-0030.
Class 1
Luokan 1
LEDLAITE
LED
Klass 1
LED
Klasse 1
Appareil a LED
de Classe 1
