Summary of Contents for Aeronavics SkyJib

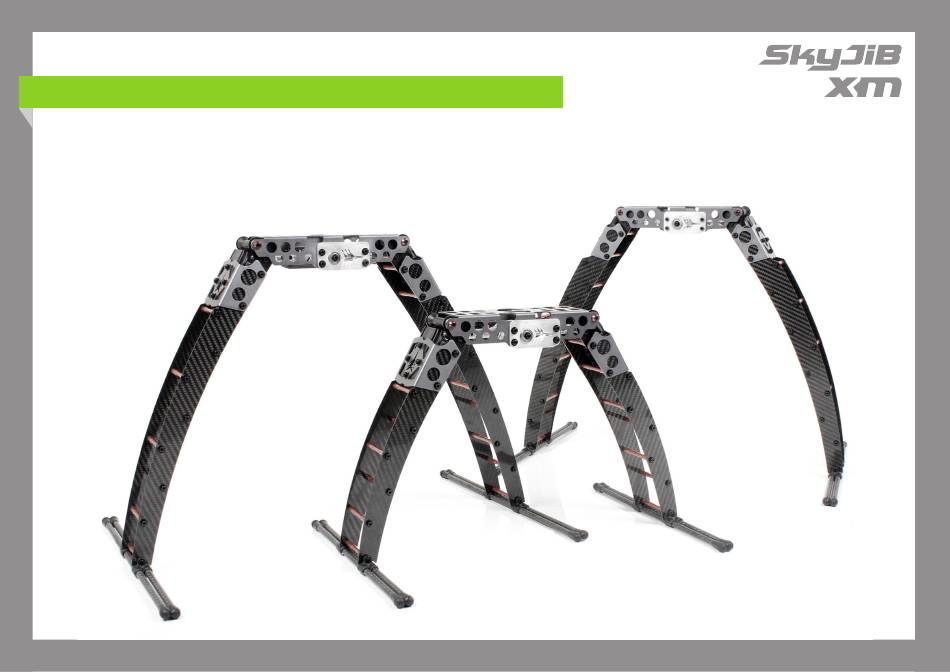

- Page 1 e t R a c t a b l e a n d i n g e a R s s e m b l y...
- Page 2 PARTS LIST RETRACTABLE LANDING GEAR - XM STANDARD Product Code Parts + Spares Product Code Parts + Spares Socket Head Cap Screw M3x8mm XMR Landing Gear Plate Standard 1404-0122 2503-0030 Socket Head Cap Screw M3x12mm Retract Shoulder Bracket Outer 1406-0241 2506-0020 M3 Washer Nylon Retract Outer Housing Spacer...
- Page 3 PARTS LIST RETRACTABLE LANDING GEAR - XM EXTENDED Parts + Spares Product Code Parts + Spares Product Code Socket Head Cap Screw M3x8mm XMR Landing Gear Plate Extended 1404-0132 2503-0030 Socket Head Cap Screw M3x12mm Retract Shoulder Bracket Outer 1406-0241 2506-0020 M3 Washer Nylon Retract Outer Housing Spacer...
- Page 4 PARTS LIST RETRACTABLE LANDING GEAR - SKYJIB Product Code Parts + Spares Product Code Parts + Spares 2506-0190 M3 Washer Nylon SJR Landing Gear Plate 1405-0183 Socket Head Cap Screw M4x12mm 2505-0020 Retract Shoulder Bracket outer 1406-0242 2506-0020 Socket Head Cap Screw M3x12mm...
- Page 5 Begin by fixing your M3 Outer Housing Attach the Male Quick Release Clip to the Spacers to your Landing Gear Plates using Retract Shoulder Bracket using M3x8mm M3x8mm Socket Head Cap Screws and 1mm and M3x6mm Button Head Cap Screws, Washers.
- Page 6 Core of your Craft. Center the Landing Gear Skids and snap into SkyJib place. Push on End Caps. Repeat steps 1-4 for your second set of Landing Gear. Note: SkyJib Coax uses 360mm Skids and Standard Uses 450mm Skids...
- Page 7 Retractable Landing Gear and remount it with the servo to the front. Repeat step 10 for the second leg. Attach using M4x12mm Socket Head Cap Screws and M4 Locking Washers. (Mounting Positions are the same for SkyJib Craft)
- Page 8 Your setup should now look like this.
- Page 9 e s e t t h e e R o o i n t a t y o u R e t R a c t a b l e a n d i n g e a R...
- Page 10 Move the “gear switch” of your transmitter Close the mechanics arms around the servo horn spline into the “gear down” position. with your fingers, making sure that they are in the fully collapsed position…apply firm pressure with your fingers. Tighten the M3 x 12mm SS servo horn bolt firmly. Undo the M3 x 12mm SS servo horn bolt until the servo can rotate freely without operating the retract mechanics –...
