Safeguard Supply LRA-EX1000 User Manual

LRA-EX1000 & LRA-EXTX User Manual
LRA-EX1000 Kit Includes: LRA-DCRX (receiver) + LRA-EXTX (chime extender)
The LRA-EXTX must be programmed to a compatible receiver.
All products in the LRA series are compatible with one-another. Systems may be expanded
by adding transmitters (push buttons, PIR motion sensors, magnetic door contacts, and
outdoor driveway sensors) and /or adding receivers.
BASIC FEATURES:
• Range from transmitter (push button, motions sensor, etc.) is up to 1,000 ft. line of sight.
Environmental objects such as metal, concrete, etc., will diminish the range.
• Powered by 3 x C-sized alkaline batteries (not included). Optional plug-in power cord is
available.
• Volume control - zero to 90 dB.
• Flashing strobe can be turned on or off. Sound may be turned on or off.
• Variety of sounds and melodies to choose from.
• Pair this receiver with any LRA transmitters.
• Indoor rated only.

THINGS TO KNOW PRIOR TO USE

• Each LRA-DCRX (receiver) can pair with a total of four (4) wireless transmitters
• Once four (4) transmitters have been added to the receiver you cannot add another
unless you delete a transmitter from one of the 4 zones.
• There is no limit to the number of receivers you can pair with a transmitter.
• The receiver is powered by c-sized alkaline batteries or by a plug-in transformer (not
included).
• The receiver has 3 (three) modes of operation: 1) chime only, 2) chime and strobe, and 3)
strobe only. These options are changed using the selector switch on the side of the unit.
• The volume is adjustable using the knob inside the cover of the unit.
Pl e a s e Note: All AC-powered chimes work off a low-voltage power transformer.
For safety we recommend disconnection electrical power from house c h i me before
installation. If you are not comfortable doing this, we recommend hiring an electrician.
This relay transmitter can work
any devices with 9 to 18V AC .
Wired Chime
Transmitter
SAFEGUARD SUPPLY CONTACT INFORMATION
Phone: (678) 214-4212 |email: info@safeguardsupply.com
2260 Moon Station Ct. NW #110 | Kennesaw, GA 30144 USA

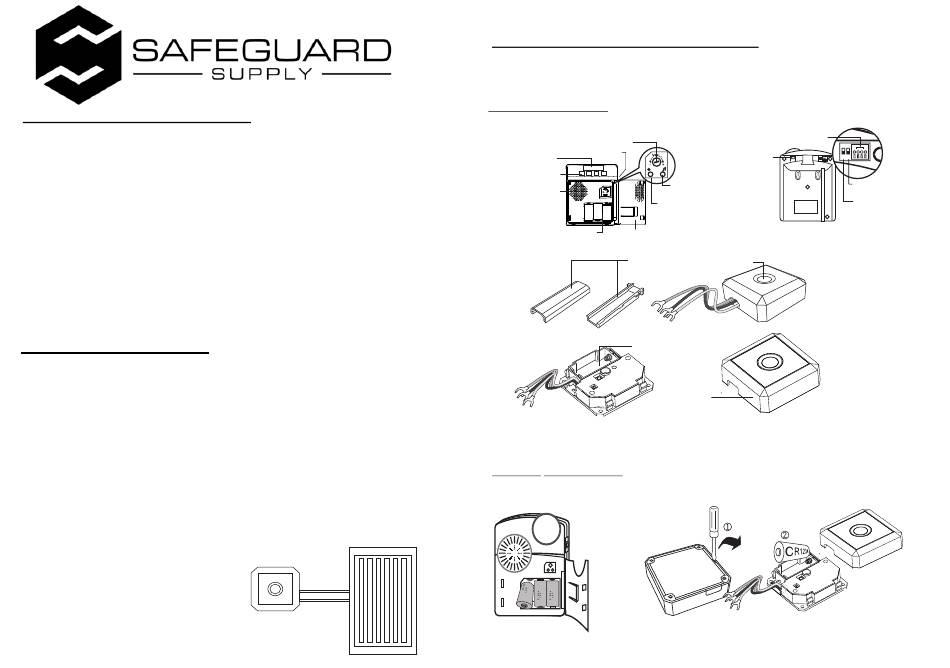

PARTS & FUNCTION
Volume control
Function Switch
Flasher
Zone LED
Speaker
Zone selector
button
Battery compartment
Battery cover
Cable duct
Wiring hole cover
Battery
compartment

BATTERY INSTALLATION

LRA-DCRX Chime Receiver
3 x 'C' size
Wire Clip
On 5
Cancel Off 2
Melody
Output
selector button
delay
Relay
Output
control
LED Indicator
Cover
LRA-EXTX Chime Extender
CR123A
