All Recall Focus
by Senna
User Manual
(Look for the video instructions on You Tube: All Recall Focus – User Manual
www.youtube.com/watch?v=i8COpQazR6k&noredirect=1)

Advertisement

loading
Need help?

Need help?

Do you have a question about the All Recall Focus and is the answer not in the manual?

Questions and answers

Related Manuals for Senna All Recall Focus

Summary of Contents for Senna All Recall Focus

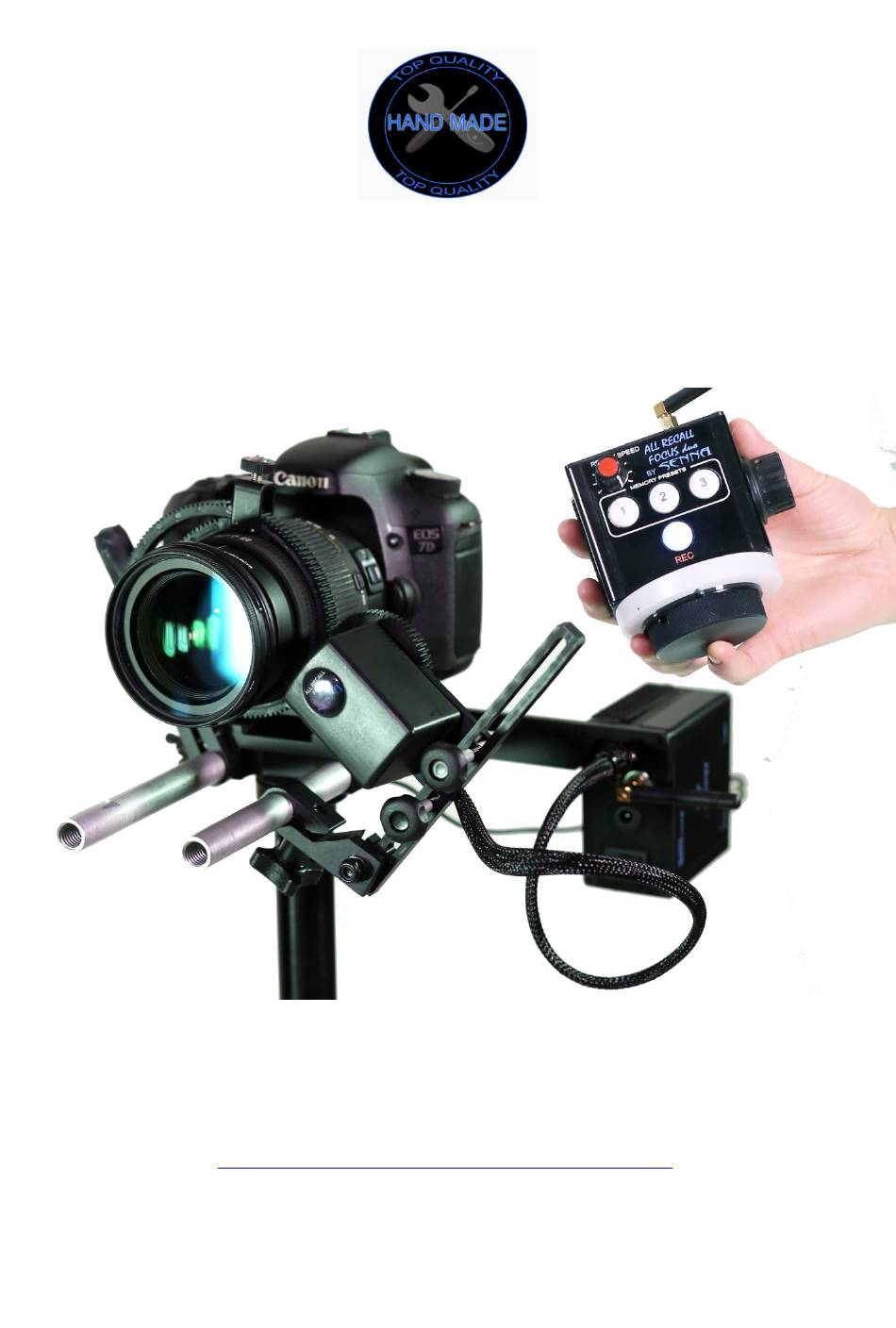

  • Page 1 All Recall Focus by Senna User Manual (Look for the video instructions on You Tube: All Recall Focus – User Manual www.youtube.com/watch?v=i8COpQazR6k&noredirect=1)
  • Page 2 1. Introduction All Recall Focus is a remote wireless device for control of focus on DSLR cameras. It is especially suitable when using jibs, sliders and steadicams. The adjustable gear ring, strong motor, and wireless control panel allow wireless focus control on any lens. Its matchless option of memorizing four different focus positions, allows automatic recall at any point of shooting with simplistic memory buttons located on the ergonomic control panel.
  • Page 3 All Recall Focus set includes: Receiver Transmitter Focus motor gear Rods (⌀ 15mm) Receiver/transmitter charger Camera plate External spare battery Infrared sensor (REC and trigger) Adjustable gear ring 2 types of gears (small for DSLR, Spare battery charger bigger for movie cameras) Packaging –...
  • Page 4 3. Mounting the All Recall Focus: 3.1 To mount All Recall Focus properly, please follow the steps: 1. Attach the rods on the camera plate 2. Mount your camera on the camera plate 3. Mount the receiver on the rods (it should be turned to the right, as shown on the picture above) 4.
  • Page 5 3.4 In/Out range calibration All Recall focus motor gear has an extended range of 320°. If your camera lens has smaller focus gear range, it is recommended that you make in/out range calibration, to protect your lens gear from being forced to move beyond their physical range.
  • Page 6 5. Turn your lens’ focus gear in opposite direction 6. Connect motor 1 gear to the lens gear. from the motion of All Recall focus gear until it attention that motor gear spring is tensed. has reached the maximum position.
  • Page 7 3.5 Motor gear polarity Motor-gear polarity is set to default. If you would like to change the direction of motor-gears you should follow the steps: 1. Keep the transmitter off. Press and hold the button 3. While holding that button 3, switch the transmitter on. Release the button 3.
  • Page 8 4.1 To check the status of transmitter’s battery, please follow the steps: 1. Attach the digital voltmeter to the transmitter as shown on the picture. 2. Read the battery voltage on the display. If the voltage is under 10,0 batteries need to be charged.
  • Page 9 After All Recall Focus receiver is turned on with a power switch, device will go through a short self-testing and signal and power LED indicators will flash twice. After that, both LED indicators will turn on. If the receiver fails to establish wireless communication, signal LED light will flash fast.

  • Page 10: Memory Recall

    (See the charter mounting the All Recall Focus) All Recall Focus is equipped with Canon remote controller. To activate the rec/trigger sensor, please follow the steps: 1. Turn your DSLR camera on.

  • Page 11: New Setup

    6.7 New setup When All Recall Focus is not in use for longer time, please turn it off to save the battery. When you turn it on again, all the settings will be kept in memory and it is not necessary to store them again.
