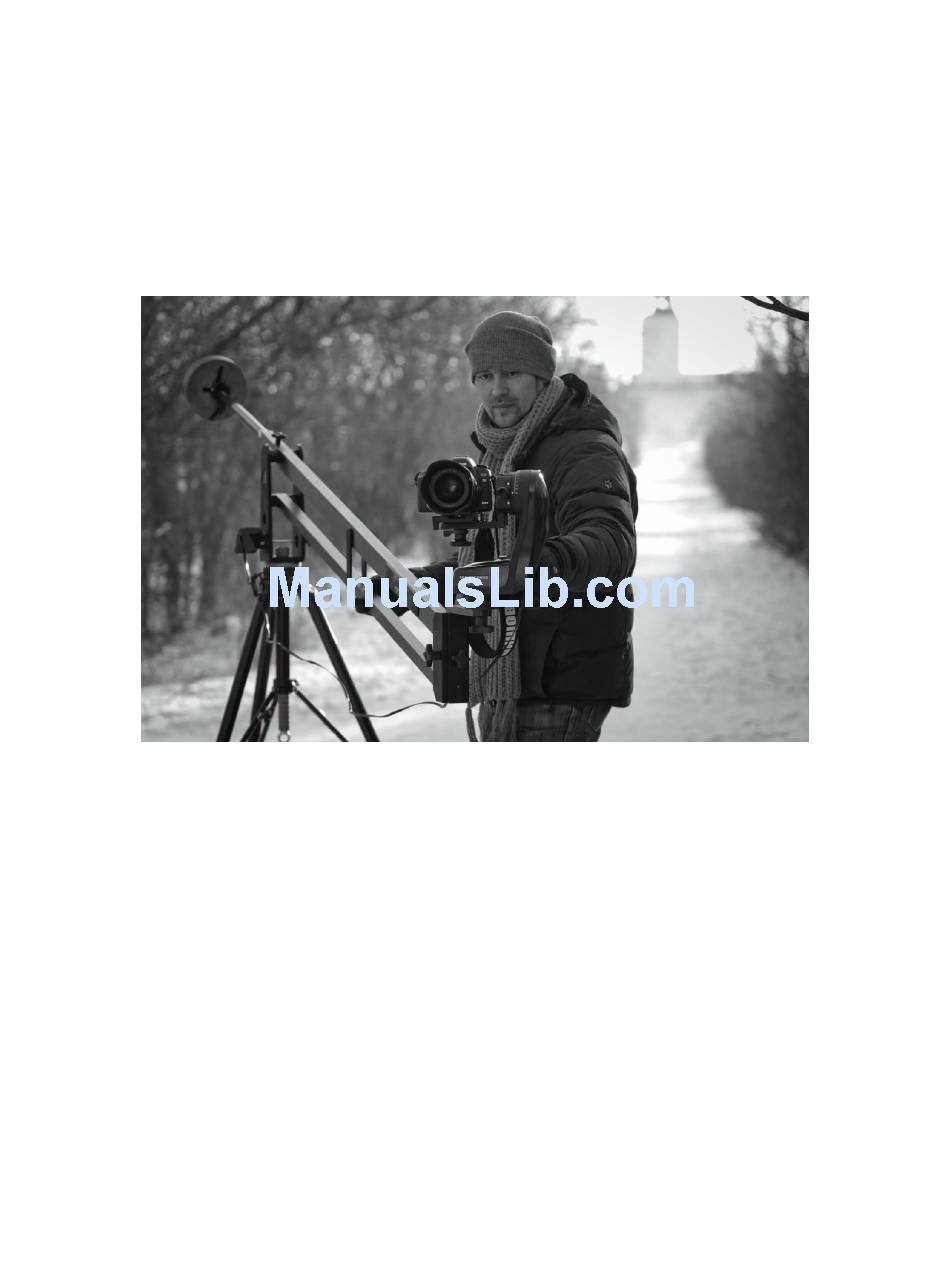

- Page 1 One Minute Crane User Manual...
- Page 2 Introduction Perfect for run-and-gun shooting, small productions, music videos and weddings, the One Minute Crane is simplistic and literally takes one minute to setup. The system utilizes light weight material, bringing the total weight of the unit to 12kg while extending to 3.2m. Easy setup and breakdown makes transportation and change of location effortless.
- Page 3 1.1 One Minute Crane set includes: Flight Bag Dolly Frame Tripod L-holder for mounting the head Crane Arm Crane-arm fastener Dolly tripod clip Weights-holding rod Head control plate holder Velcro-strip weight Magic Arm, monitor holder...
- Page 4 2. Mounting One Minute Crane To mount the One Minute Crane, follow the steps: Firstly, you need to assemble the Dolly Frame, by attaching two dolly segments with the enclosed screw. Unfold the legs of the tripod, and put them into corresponding slots in the dolly.
- Page 5 Fasten the crane arm to the tripod with the enclosed crane arm fastener, as described in the picture. While doing that, hold the upper end with the other hand so that it does not move. crane arm fastener Fasten the dolly to the tripod using the enclosed dolly-tripod clip, as shown in the picture on the left.
- Page 6 Put the weights onto the weights-holding rod to make the counter balance. (Weights are not included in the set!) * Fine balance tunes can be made with the enclosed Velcro- strip weight. Attaching the Remote Head Any Remote Head can be mounted on One Minute Crane: To mount a Remote Head attach the L holder onto the top of the crane arm.
- Page 7 Attaching the Magic Arm monitor holder Attach the Magic Arm monitor holder, to the fillister on the left or the right side of the tripod adapter. Please make sure you have tightened the magic arm firmly (use screwdriver) Pan and tilt breaks Pan and tilt movements of the crane can be fixed with pan and tilt breaks.
