Summary of Contents for MotionRC Detrum RXC6

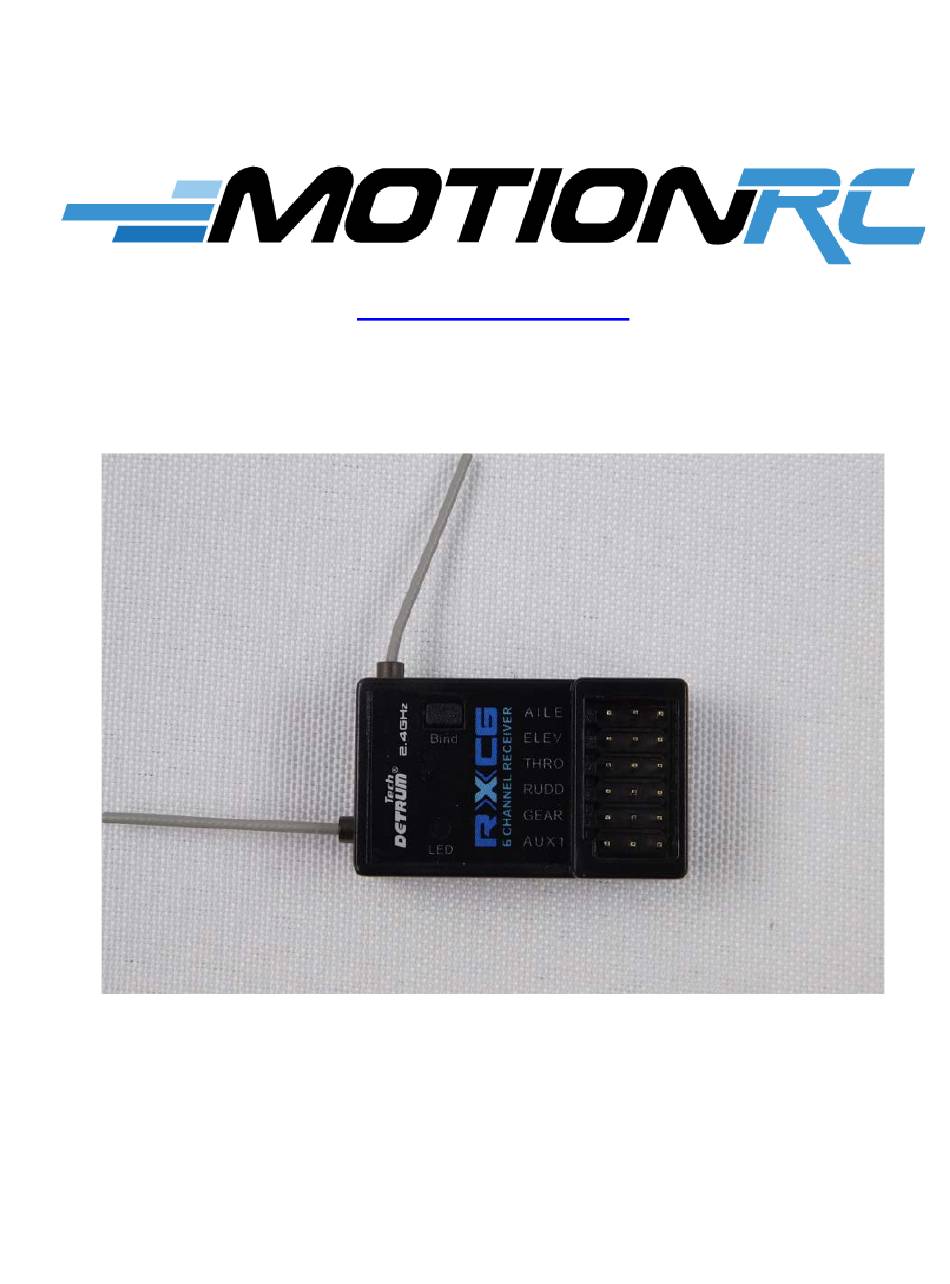

- Page 1 Motion RC User Guide for the Detrum RXC6 Receiver Version 1.0...
-
Page 2: Table Of Contents
Review the Receiver’s Ports and Connection Orientation ..........2 Bind the Receiver to a Transmitter and Model ..............3 Mount the Receiver in a Model and Secure its Antennas (If Required) ......5 Appendix A RXC6 Specifications ..................6 Motion RC User Guide for the Detrum RXC6 Receiver... -
Page 3: Review The Receiver's Features
This guide provides you with information about the Detrum RXC6 receiver. This information includes an overview of the receiver along with step-by-step instructions for binding and installing it. Review the Receiver’s Features • Compact size makes it suitable for small-scale aircraft such as park flyers •... -
Page 4: Review The Receiver's Ports And Connection Orientation
For example, you might want to use the AUX1 port for flaps and program a three- position switch on the transmitter (such as the FMOD switch on the GAVIN-6C transmitter) to control this port. Motion RC User Guide for the Detrum RXC6 Receiver Page 2... -
Page 5: Bind The Receiver To A Transmitter And Model
GAVIN-6C (these steps may be different with other types of Detrum transmitters; refer to the Motion RC Supplemental Guide for your transmitter for the specific steps for you): Motion RC User Guide for the Detrum RXC6 Receiver Page 3... - Page 6 9. Connect the RXC6 receiver to at least one servo and to the ESC; if the receiver is already installed in a model, skip this step. 10. Power the receiver by connecting a battery to the ESC. The Bind light on the receiver flashes rapidly. Motion RC User Guide for the Detrum RXC6 Receiver Page 4...
-
Page 7: Mount The Receiver In A Model And Secure Its Antennas (If Required)
90-degree angle to each other and aren’t covered by batteries or other components that could distort or disrupt signals from the transmitter. Motion RC User Guide for the Detrum RXC6 Receiver Page 5... -
Page 8: Appendix A Rxc6 Specifications
Appendix A RXC6 Specifications Parameters Detrum RXC6 Specifications Type 2.4 GHz 6-channel Communication ＞1.1km Distance Output Signal Power supply 3.6~16V Weight 6.9 g Size 20 mm x 33 mm x 12.5 mm Motion RC User Guide for the Detrum RXC6 Receiver Page 6...
