MotionRC Detrum RXC8 User Manual

Hide thumbs

Advertisement

Table of Contents

www.motionrc.com

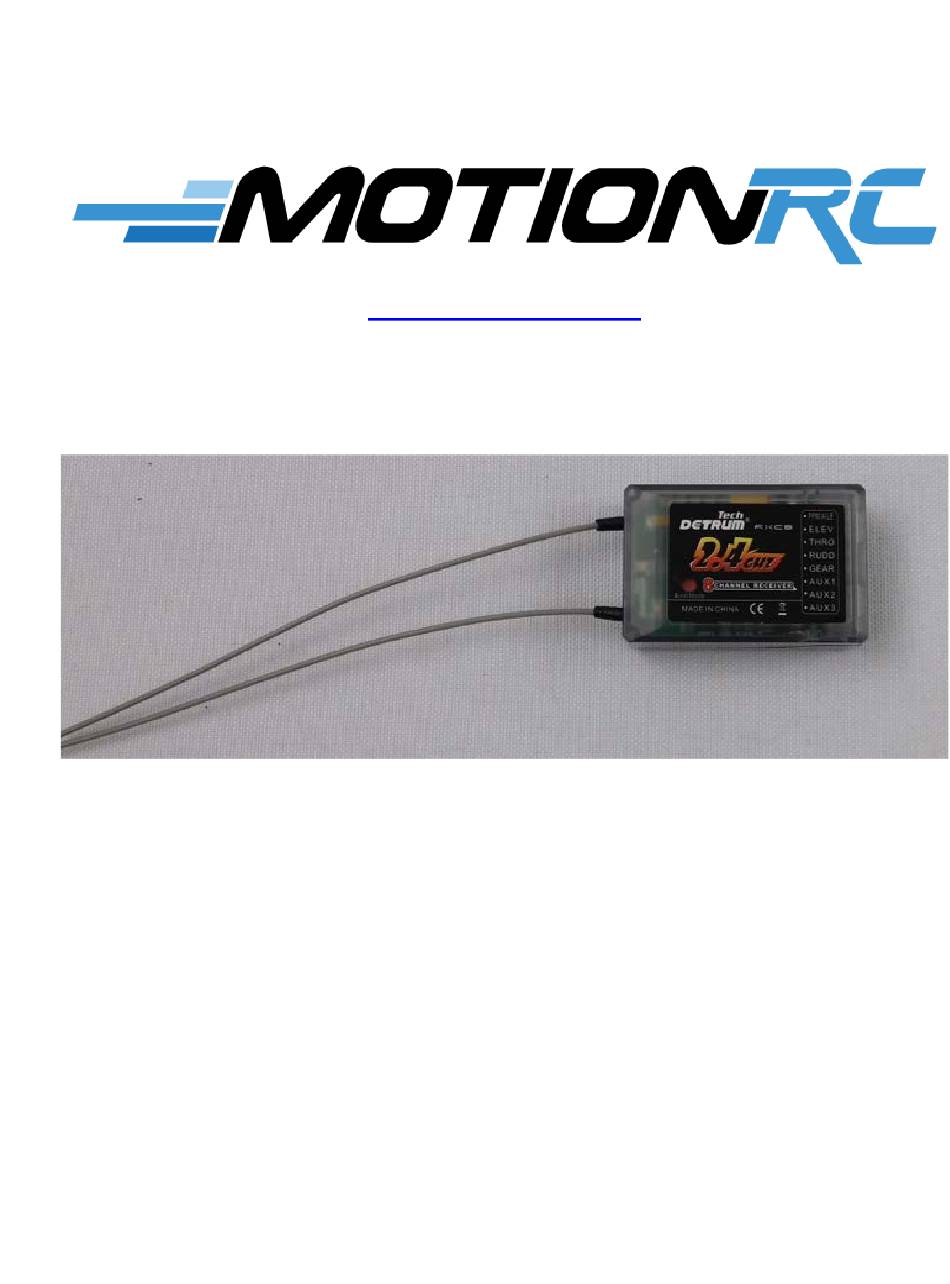

Motion RC User Guide for the
Detrum RXC8 Receiver
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Detrum RXC8 and is the answer not in the manual?

Questions and answers

Related Manuals for MotionRC Detrum RXC8

Summary of Contents for MotionRC Detrum RXC8

  • Page 1 Motion RC User Guide for the Detrum RXC8 Receiver Version 1.0...

  • Page 2: Table Of Contents

    Bind the Receiver to a Transmitter and Model ..............3 Change the Receiver’s Mode ................... 6 Mount the Receiver in a Model and Secure its Antennas ..........6 Appendix A RXC8 Specifications ..................7 Motion RC User Guide for the Detrum RXC8 Receiver...

  • Page 3: Review The Receiver's Features

    This guide provides you with information about the Detrum RXC8 receiver. This information includes an overview of the receiver along with step-by-step instructions for binding and installing it. Review the Receiver’s Features • Diversity antennas for stronger signal reception •...

  • Page 4: Review The Receiver's Ports, Controls, And Connection Orientation

    (for example, the FMOD switch on the GAVIN-6C transmitter) to control this port. You use the Bind/Mode button to bind the receiver and change its mode. Motion RC User Guide for the Detrum RXC8 Receiver Page 2...

  • Page 5: Bind The Receiver To A Transmitter And Model

    Motion RC Supplemental Guide for your transmitter for the specific steps for your transmitter): 1. Turn the transmitter on. 2. When the home screen is displayed, press ENT. Motion RC User Guide for the Detrum RXC8 Receiver Page 3...
  • Page 6 10. Power the receiver by connecting a battery to the ESC. The Bind light on the receiver flashes red quickly indicating that it isn’t bound to anything. The PWM (Pulse Width Modulation)/PPM (Pulse Position Modulation) Mode light illuminates green for 2 Motion RC User Guide for the Detrum RXC8 Receiver Page 4...
  • Page 7 If not, repeat this process until it is successful. 14. Power off the receiver. 15. Power off the transmitter. You are ready to program and install the receiver. Motion RC User Guide for the Detrum RXC8 Receiver Page 5...

  • Page 8: Change The Receiver's Mode

    Placing the antennas at 90 degrees to each other maximizes signal strength and minimizes the chances of interference. Motion RC User Guide for the Detrum RXC8 Receiver Page 6...

  • Page 9: Appendix A Rxc8 Specifications

    2.4 GHz 8-channel Sensitivity -97 dBm Frequency interval Greater than or equal to 4 MHz Power supply 3.6~6V Weight 12 g Size 39 mm x 28.5 mm x 14.5 mm Motion RC User Guide for the Detrum RXC8 Receiver Page 7...
