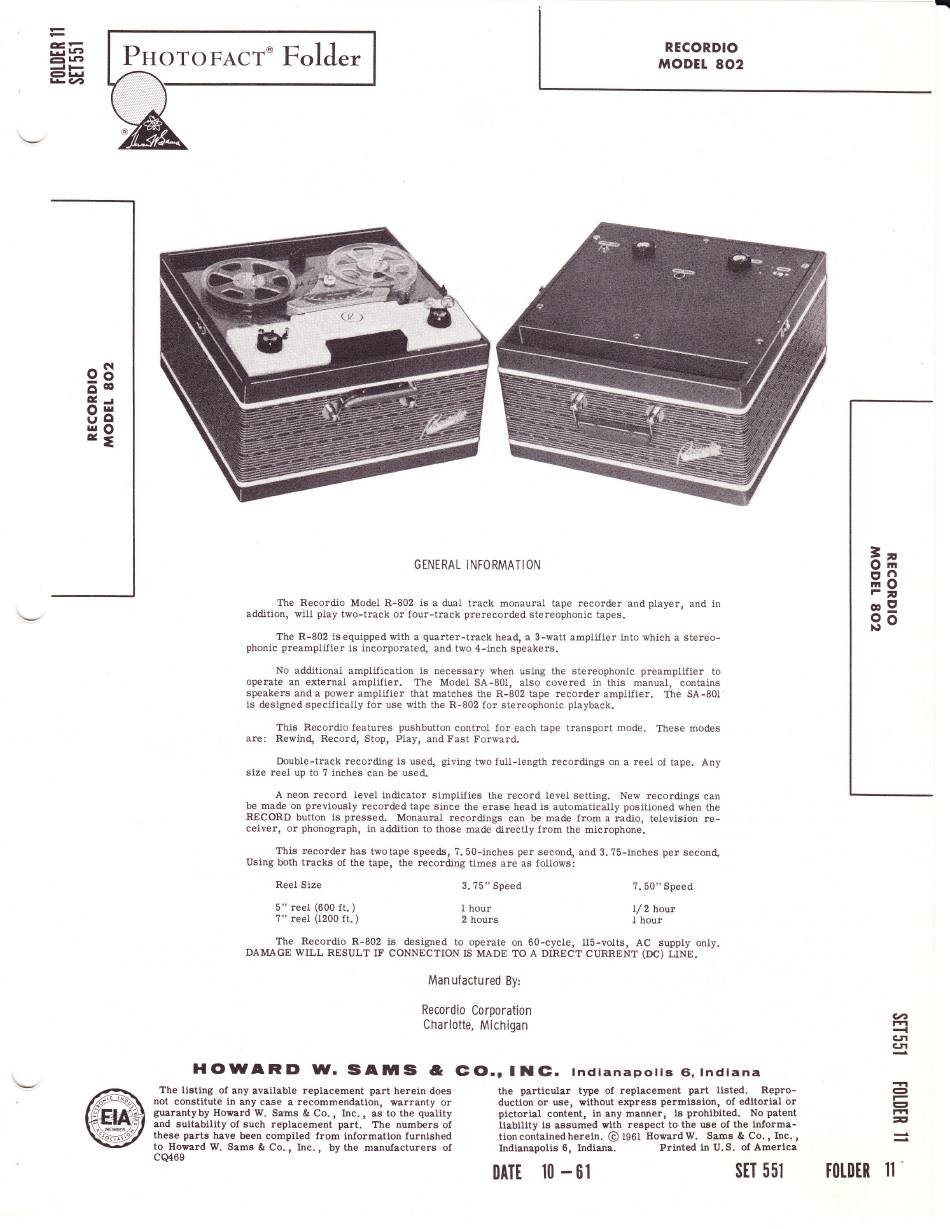

GENERAL INFORMATION
The
Recordio
Model R-802
is
a dual
track
monaural tape
recorder
and
player,
and in
addition,
will
play two-track or four-track prerecorded stereophonic
tapes.
The R-802 isequippedwith a
quarter-track
head,
a 3-watt amplifj.er into which a stereo-
phonic
preamplifier is
incorporated,
and two
4-inch
speakers.
No additional amplilication
is
necessary when using the stereophonie
preamplifier
to
operate an external
amplifier.
The
Model SA-801,
also covered
in this
manual,
contains
speakers
and
a power amplifier
that matches the R-802
tape recorder amplilier.
The SA-80I
is
designed
specifically for
use
with
the R-802
for
stereophonic playback.
This
Recordio
features
pushbutton control
for
each
tape transport
mode.
These modes
are:
Rewind, Record, Stop, Play, andFastForward.
Double-track recording
is
used, giving
two
full-length
recordings
on
a
reel
of tape.
Any
size reel
up
to
?
inches
can be used.
A
neon
record
Ievel indicator
simplilies
the
record level
setting.
New recordings
can
be made on
previously recorded
tape
since the erase
head
is automatically positioned
when
the
RECORD
button
is pressed.
Monaural
recordings can
be
made from a
radio,
television re-
ceiver, or
phonograph,
in addition to those
made
directly from
the microphone.
This recorder
has twotape speeds, 7.50-inches
per
second, and
3.
?5-inches
per
second
Using
both
tracks
of the
tape,
the recording times are
as
follows:
Reel
Size
5"
reel
(600
ft.
)
7" reel
0200
ft.
)
HOWARD W. lsAIf,S
&
The
liating
of
any
available replacement
part
herein
does
not
constitute in
any
case a recommendation, warranty
or
guarantyby Howard W.
Sarns
&
Co.
, Inc. ,
as to the quality
and
euitability
of such replacement
part.
The numbers
of
these
parts
have been compiled
from lnformation
furnished
to
Howard W.
Sams &
Co.
, Inc. ,
by
the manufacturers
of
cQ469
?.50"
Speed
l/2
hour
I
hour
the particular
type
of
replacement
part listed.
Repro-
duction
or use,
without express
permission,
of edttorial or
pictorial
content, in
any
manner, le
prohibited.
No patent
Itability ie
assumed
wlth reepect to the
uee
of the lnforma-
tioncontainedherein.
@
tOOt
llowardW.
Sams &
Co.,
Inc.,
3.
?5"
Speed
I
hour
2 hours
The
Recordio R-802
is
designed
to
operate on
60-cycle, ll5-volts, AC
supply
only.
DAMAGE
WILL
RESULT
IF
CONNECTTON
IS MADE TO
A
DTRECT CURRENT (DC) LrNE.
Man
ufactured
By:
Recordio Corporation
Charlotte, Michigan
