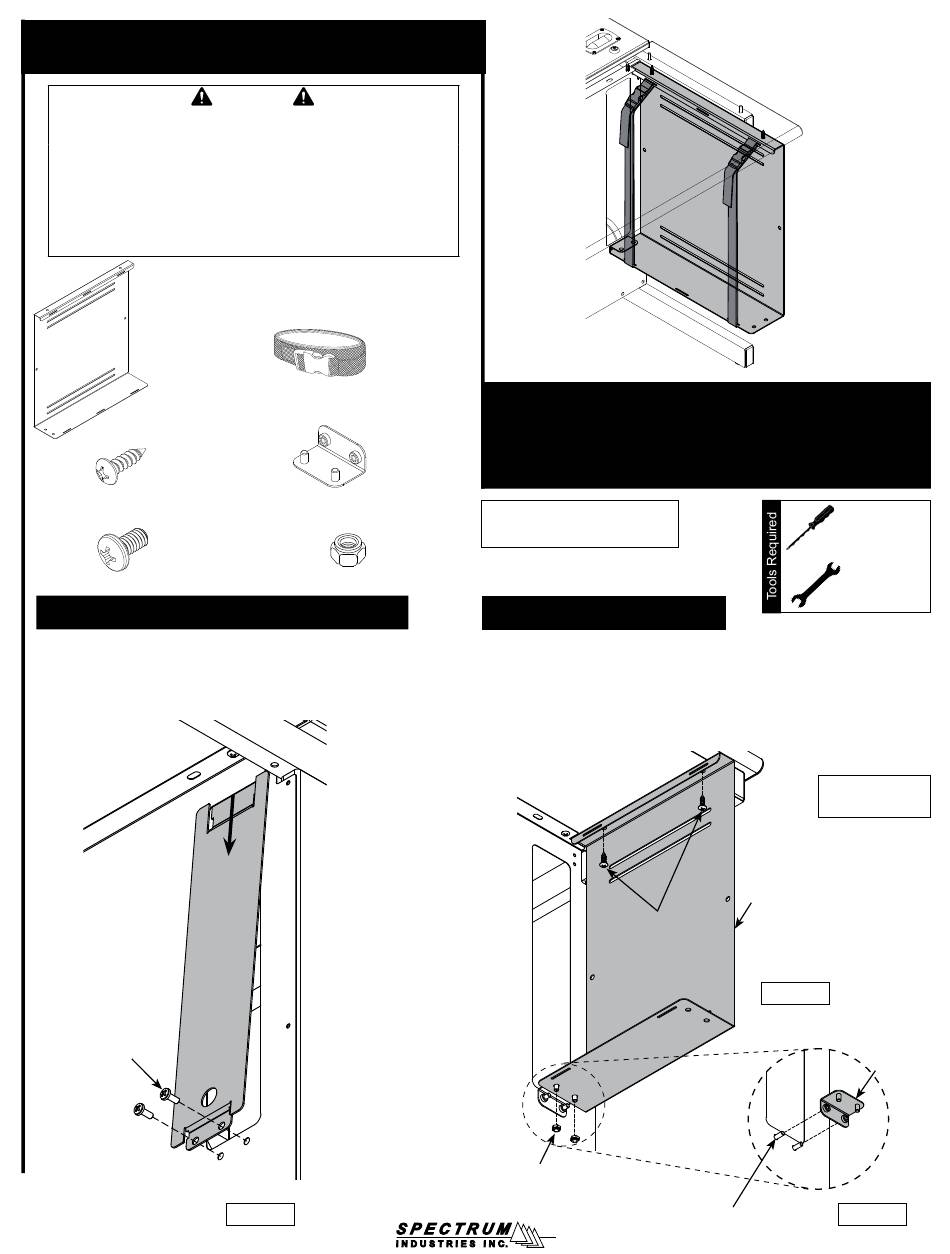

Spectrum Industries 38981 Assembly Instructions

Assembly Instructions Assembly Instructions

Important

Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts
or accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) CPU Sling
0117848 - 24"D
0107801 - 30"D
(2) 0101382
#14 x 7/8" PHSM
(2) 035728
1/4-20 x 1/2 PHMS

1. Remove Existing Cover Plate

1. Remove the (2) 1/4-20 x 1/2" PHM screws. Figure 1.
2. Remove cover plate.
Cover
Plate
(2) 1/4-20 x
1/2" PHMS
(2) 0107595
Strap / buckle
assembly (58")
(1) 0107804
Sling Bracket
(2) 041943
1/4-20 x 1/2"
PHMS
Figure 1
CPU Sling for Flex Insight Desk
24"D desks - 38981
30"D desks - 38980
Note: 1 sling is required on
single desks, 2 on double desks

2. Install CPU Sling

1. Install the support bracket under the shroud opening as shown with
(2) 1/4-20 x 1/2" PHM screws from behind the shroud. Figure 2A.
2. Align the support bracket holes and attach the sling to the
worksurface with (2) #14 x 7/8" PHSM screws. Figure 2B.
3. Install (2) 1/4-20 locknuts to secure the sling to the support bracket.
#14 x 7/8"
PHSM
Shroud
opening
(2) 1/4-20
Locknuts
(2) 1/4-20 x 1/2" PHMS
(install behind shroud)
™
Phillips
Screwdriver
7/16" or
Adjustable
wrench
Note: Sling straps
not shown.
CPU Sling
Figure 2B
Support
Bracket
Figure 2A
0119551R1 Page 1 of 2
