Selkirk ULTRA-TEMP UT Installation Instructions & Maintenance Manual

Selkirk ULTRA-TEMP UT Installation Instructions & Maintenance Manual

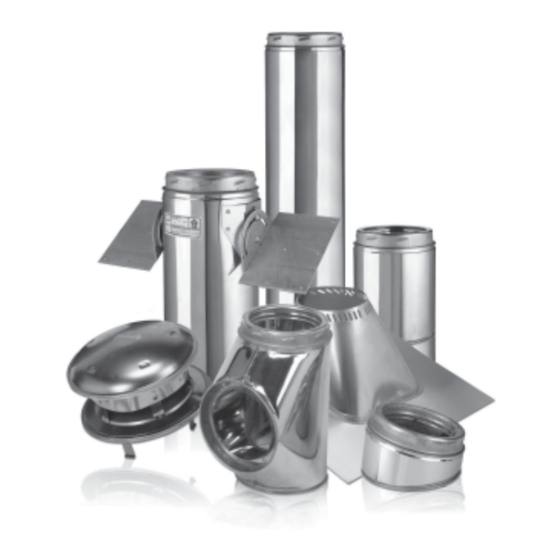

5” to 14” dia. factory-built insulated chimney

Advertisement

(5" to 14" dia.)
FACTORY-BUILT
INSULATED CHIMNEY
LISTED
Tested to Standard
CAN/ULC-S604
&
ULC/ORD-C959
Installer: It is of the utmost importance that these UT instructions are
Homeowner: Keep these instructions and maintenance guide in a safe place
A MAJOR CAUSE OF VENT
RELATED FIRES IS FAILURE
TO MAINTAIN REQUIRED
CLEARANCES (AIR SPACES)
TO COMBUSTIBLE
MATERIALS.
IT IS OF THE UTMOST
IMPORTANCE THAT THIS
CHIMNEY SYSTEM BE
INSTALLED ONLY IN
ACCORDANCE WITH THESE
INSTRUCTIONS.
PLEASE READ ALL INSTRUCTIONS
BEFORE BEGINNING YOUR
INSTALLATION.
FAILURE TO INSTALL THIS SYSTEM IN
ACCORDANCE WITH THESE
INSTRUCTIONS WILL VOID THE
CONDITIONS OF CERTIFICATION AND
THE MANUFACTURER'S WARRANTY.
left with the homeowner.
for future reference.
1
I
I
NSTALLATION
NSTRUCTIONS
&
M
G
AINTENANCE
UIDE
(C
O
ANADA
NLY
SELKIRK CANADA
375 Green Road,
Stoney Creek, ON L8E 4A5
1-888-SELKIRK (735-5475)
Fax: 1-866-835-9624
www.selkirkcorp.ca
cscanada@selkirkcorp.com
)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRA-TEMP UT and is the answer not in the manual?

Questions and answers

Summary of Contents for Selkirk ULTRA-TEMP UT

  • Page 1 Installer: It is of the utmost importance that these UT instructions are CAN/ULC-S604 left with the homeowner. & Homeowner: Keep these instructions and maintenance guide in a safe place for future reference. ULC/ORD-C959 SELKIRK CANADA 375 Green Road, Stoney Creek, ON L8E 4A5 1-888-SELKIRK (735-5475) Fax: 1-866-835-9624 www.selkirkcorp.ca cscanada@selkirkcorp.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS CERTIFICATION LABELS ........................... FUELS AND APPLIANCES........................... RULES FOR SAFETY DURING INSTALLATION..................GENERAL INSTALLATION RULES......................TOOLS................................CHIMNEY SIZING............................FRAMING DETAILS............................CEILING SUPPORT ........................... 5, 6 ADJUSTABLE LENGTH..........................6, 7 ATTIC INSULATION SHIELD ........................FIRESTOP JOIST SHIELD......................... ELBOW INSTALLATION..........................ADJUSTABLE WALL SUPPORT.......................
  • Page 3: Certification Labels

    CERTIFICATION LABELS...
  • Page 4: Fuels And Appliances

    Any Where height restrictions will not permit the use of the Attic Insulation positive pressure in the chimney should use a Selkirk Model PS or Shield, it is permissible to construct an enclosure with a 2” air space IPS system.
  • Page 5: Tools

    TOOLS: FRAMING DIMENSIONS FOR MODEL UT Table 1 TO MAINTAIN 2 INCH AIR SPACE CLEARANCE Your UT chimney system is designed for installation using standard build- MODEL UT ing materials and procedures. The following tools/equipment may be Chimney Inside 5” 6”...
  • Page 6: Adjustable Length

    ADJUSTABLE LENGTH (AL) Figure 4 An Adjustable Length (AL) is installed between other components to establish an exact finished length, where a standard length can not Chimney Length be utilized. The AL has an over all length of 12” and has an installed length that adjusts from 2”...
  • Page 7: Attic Insulation Shield

    ATTIC INSULATION SHIELD The function of the Attic Insulation Shield (or a complete enclosure) is to keep insulation from coming into contact with the chimney. Mark an Overlap Refer- ence Line on the Standard height of the Attic Insulation Shield is to meet the insulation level Length.
  • Page 8: Firestop Joist Shield

    FIRESTOP JOIST SHIELD A Firestop Joist Shield is for use in vertical enclosures where the FIGURE 13 chimney passes through a floor / ceiling opening, from one living Round Top space to another living space. It is installed from either above or below the joist.
  • Page 9: Adjustable Wall Support

    ADJUSTABLE WALL SUPPORT TABLE 4 As previously mentioned, the ideal location for your chimney system DIM B DIM A SIZE is within the building envelope. An Adjustable Wall Support is re- 11” 9-1/4” 5” quired when the above mentioned location is not possible. 9-1/4”...
  • Page 10 9. Place the insulated Tee on the support plate ensuring that the Table 5 Wall Support Chimney Height Chart Distance from male coupler of the Tee is facing up and the flange on the top of the Wall to 6” ID 5”...
  • Page 11: Wall Band

    NOTE: Inverting the brackets (brackets mounted above the support -Cathedral Ceiling Support /w 4 painted ceiling trim angles plate) can be accomplished by inserting extra bolts through the oblong -Roof Flashing w/ Storm Collar -Suitable lengths of chimney slots of the support side brackets and the support plate as per Figures -Stove Pipe Adapter 21 and 22.
  • Page 12: Roof Support

    Install additional chimney sections and lock together by turning clock- 7. Attach the Roof Brackets to the chimney plates. Centre the assem- wise until the two sections lock together tightly. Locking bands must be bly in the roof opening, ensuring that a 2” clearance to combustible is used at all joints.
  • Page 13 Slide the top edge (nearest the roof peak) of the flashing under the To Install: roofing shingles. At least half of the flashing (top and sides) should A. Measure the outside (OD) diameter of your chimney. be UNDER the shingles and the lower end OVER the shingles to provide a watershed.
  • Page 14 Elevator Elevator Bolt Bolt Flat Washers Flat Washers Angled end of Leg Angled end of Leg One of 2 halves Elevator of Support Band Bolt Lock Washer Lock Washer Wing Nut Wing Nut 2” Bolt Flat Washer Assembly of One of 2 halves Telescoping Legs to of Support Band Cage Nut...
  • Page 15: Universal Roof Brace Kit

    Some Selkirk Tops (CT) have a nominal inch diameter expanding utility attachment adaptable to Selkirk Selkirk Chimney and other prod- Round Top ucts of like internal diameter. To attach securely: 1. Loosen screw on top of collar and squeeze bottom to allow collar to enter pipe.
  • Page 16: Stove Pipe Adapter

    CHIMNEY FIRES AND WHAT TO DO ABOUT THEM: and held in place with the finishing collar secured with 4 screws Your Selkirk chimney is not intended or designed for use as a combus- which is used to attach the stove pipe adapter to the finishing collar.
  • Page 17: Offset Chart

    OFFSET CHART CHIMNEY INSTALLATION (5” to 8” only) It may be necessary to offset the chimney in order to clear a joist or an obstacle. The three (3) charts below will assist you in selecting the proper combination of elbow angle and chimney length(s) that will provide the necessary degree of offset within an available height. OFFSET CHART 1.
  • Page 18: Chimney Chart Above Roof

    CHART 2 - CHIMNEY HEIGHT ABOVE THE ROOF Requirement # 1 : The code requires that the chimney must extend at least 3 feet (900mm) above the highest point of the roof that it penetrates. Requirement # 2 : It must also be 2 feet (609mm) above any roof, wall or other obstruction within a horizontal distance of 10 feet (3m). The following Chart is to assist you in determining the minimum chimney height you will require above the roof.
  • Page 19: Product And Installation Information

    INSTALLATION INFORMATION Leave with homeowner. Homeowner: Keep in a safe place for future reference. PRODUCT INFO Ultra-Temp CHIMNEY MODEL : FLUE SIZE________ TOTAL HEIGHT_________ INSIDE INSTALLATION OUTSIDE INSTALLATION CONNECTED TO (type of appliance): BOILER FURNACE LISTED FACTORY-BUILT FIREPLACE OTHER (specify) ____________________ LOCATION OF APPLIANCE: BASEMENT MAIN FLOOR...
