Summary of Contents for Yaesu M-100
-
Page 2: Table Of Contents
The M-100 operates with the below Transceivers. FT-450/D FT-900 FTDX1200 FT-817/ND FT-920 FT-2000/D FT-847 FT-950 FTDX3000D FT-857/D FT-991/A FTDX5000 FT-897/D FT-1000MP FTDX9000 FT-891 FT-1000MP MARK-V FTDX101D FTDX101MP FT-840* FT-990* FT-850* FT-1000* FT-747* * Requires Optional "Power Supply Kit for M-100". as of Oct, 2019... -
Page 3: General Description

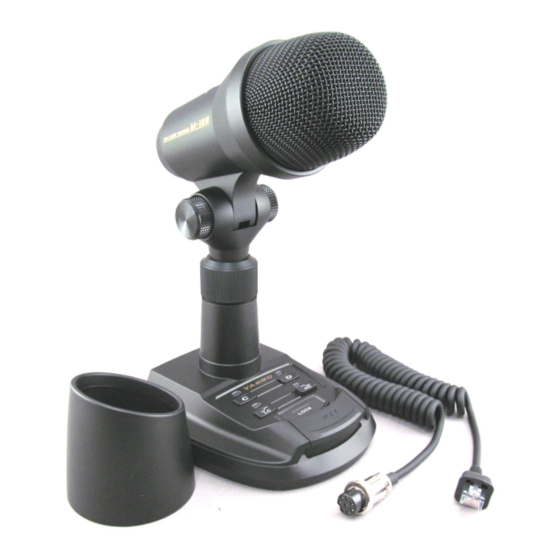

General Description Dual microphone configuration features The M-100 features two built-in microphone elements, one dynamic and one condenser. The unique output signals may be individually crafted and then blended to produce a sin- gle rich voice signal. The condenser microphone responds to a broad frequency range including the distinctive crisp highs, while the dynamic microphone adds depth and warmth, providing the emotional subtext desirable for a genial “ragchew”. -
Page 4: Safety Precautions
Also do not resulting in fire, electric shock or damage to plug and unplug the power plug with wet the equipment. hands. This may result in injury, liquid leak, electric shock and equipment failure. M-100 Operating Manual... -
Page 5: Formation
Doing so may result in malfunction. zene. Use a soft, dry cloth to wipe dirt off the case. Special Precautions in using the M-100 r To reduce extraneous noise, place the microphone as far away as possible from power supply equipment and power supply cables. -
Page 6: Controls & Connections
If neither the [ C ] key nor the [ D ] key is pressed, the microphone output is turned off. The [ C ] and [ D ] LED’s blink simultaneously. M-100 Operating Manual... -
Page 7: On Air Indicator
The PTT key has a built in the magnetic sensor. Strong magnetic items, such as a speaker or a magnet, may affect this PTT key, resulting in malfunctions. On Air Indicator This illuminates in red when in TX mode. The indicator is off when in RX mode. M-100 Operating Manual... -
Page 8: Mic
Turn the compression ring clockwise to tighten it and hold the microphone in place. The stand can be extended a maximum of 6 cm. M-100 Operating Manual... -
Page 9: Mic Jack (8-Pin)
( as viewed from rear side ) MIC Jack (modular) Use the supplied microphone cable to connect the microphone to a transceiver that has an “8- pin terminal”. MIC GND ( as viewed from rear side ) M-100 Operating Manual... -
Page 10: Fequency Characteristics Of The Microphone
Sensitivity: Microphone Impedance: 600 Ohms Dimensions ( WxHxD ) : 5.0” x 11.0” x 5.4” (126 x 280 x 137 mm) *H: Maximum with microphone flat Weight ( approx ) : 2.00 lbs (910 g) w/o cable M-100 Operating Manual... - Page 11 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 12 Copyright 2017 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD. YAESU MUSEN CO., LTD. Tennozu Parkside Building 1705G-DS-1 2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan Printed in Japan YAESU USA 6125 Phyllis Drive, Cypress, CA 90630, U.S.A.
