Summary of Contents for Philips AZ1018/01

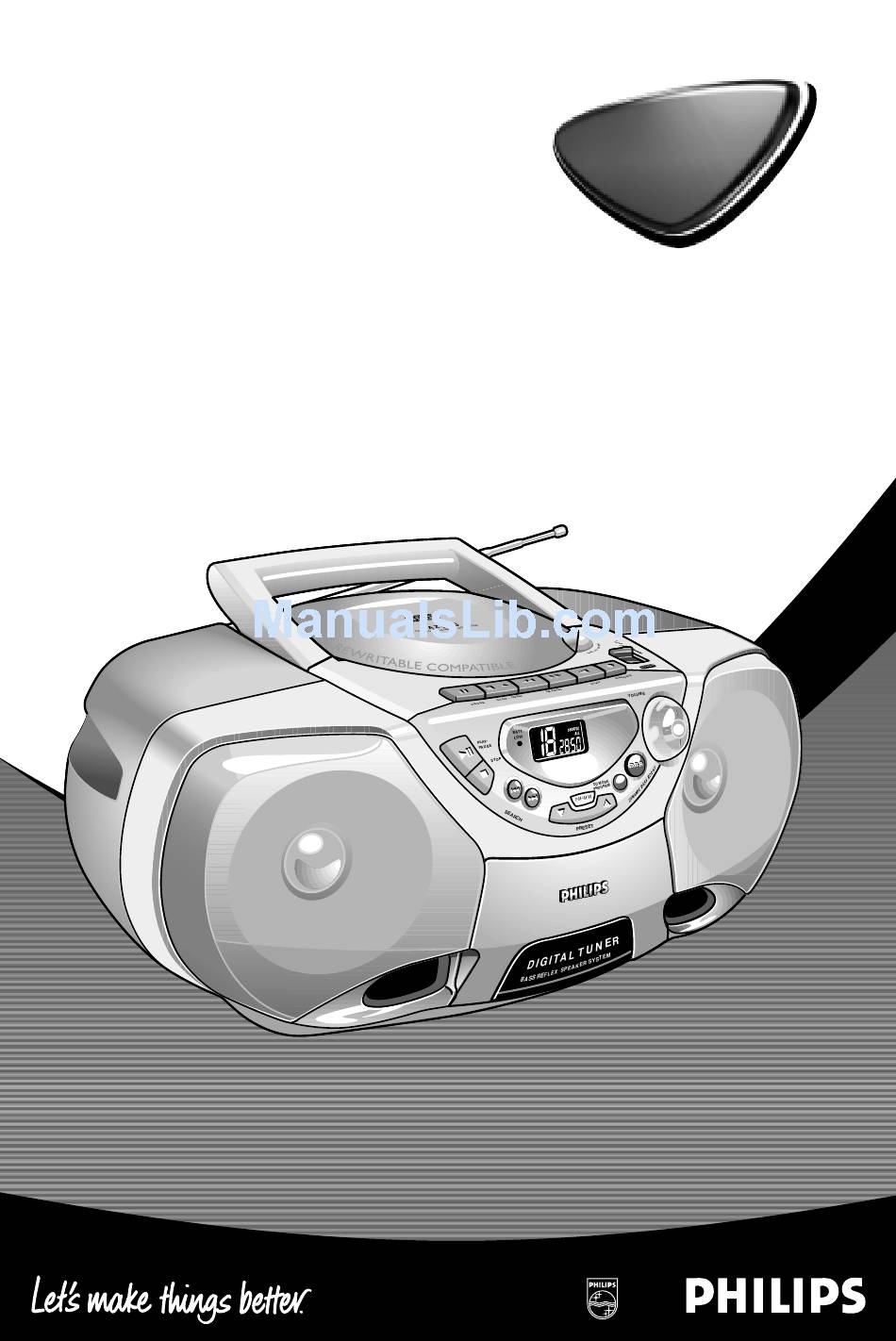

- Page 1 1018 CD Radio Cassette Recorder...
- Page 2 &...
-
Page 3: Power Supply
Controls Top and front panels 1 Power slider: CD, RADIO, TAPE/ – selects source of sound CD, RADIO, TAPE/ , and the power on/ off switch 2 LIFT TO OPEN – opens/ closes the CD door 3 Display – shows the status of the set 4 CASSETTE RECORDER: PAUSE ;... -
Page 4: Using Ac Power
If BATT LOW lights up, battery power is running low.The BATT LOW indicator eventually goes out if the batteries are too weak. Batteries contain chemical substances, so they should be disposed of properly. Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst.Therefore: •... -
Page 5: Radio Reception
Radio Radio reception 1 Adjust the POWER slider to RADIO. ➜ Display: shows tu briefly.The radio frequency is then shown. 2 Press FM•MW once or more to select the desired waveband. ➜ Display: shows your waveband 3 Press and hold down SEARCH ∞ or § briefly to tune to a radio station. - Page 6 CD Player Display indication – Cd : CD door open OPEN – d1SC: when reading CD contents – In stop mode: total track number and total playback time – During CD playback: elapsed playback time of current track and current track number –...
- Page 7 CD-Player Selecting a different track During playback you can use the SEARCH buttons to select a particular track. • If you have selected a track number in the stop or pause position, press PLAY•PAUSE 2; to start playback. • Press SEARCH § once briefly for the next track, or press repeatedly until the desired track number appears in the display.
-
Page 8: Programming Track Numbers
Programming track numbers You may store up to 20 tracks in the desired sequence. If you like, store any track more than once. 1 In the STOP mode, press SEARCH ∞ or § for your desired track. 2 When your chosen track number appears, press CD MODE/ PROGRAM once to store the track. -
Page 9: Cassette Recorder
Cassette Recorder CASSETTE RECORDER Cassette playback 1 Adjust the POWER slider to TAPE/ 2 Press STOP•OPEN 9/ to open the cassette door and insert a recorded cassette. 3 Close the cassette door. 4 Press PLAY 1 to start playback. Display: shows tAPE throughout tape operation. -
Page 10: Precautions & General Maintenance
Recording Synchro Start CD recording 1 Select CD source. 2 Insert a CD and if desired, programme track numbers. 3 Press STOP•OPEN 9/ to open the cassette door. Insert a blank tape. 4 Close the cassette door. 5 Press RECORD 0 to start recording. •... - Page 11 Maintenance Tape deck maintenance To ensure quality recording and playback of the tape deck, clean parts A, B and C shown in the diagram below, after approx. 50 hours of operation, or on average once a month. Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean the deck.
-
Page 12: Troubleshooting
If a fault occurs, first check the points listed below before taking the set for repair. Do not open the set as there is a risk of electric shock. If you are unable to remedy a problem by following these hints, consult your dealer or service centre. - Page 13 Changing tuning grid (some versions only) In North and South America the frequency step between adjacent channels in the MW (AM) and FM band are 10 KHz and 100 KHz respectively. In the rest of the world this step is 9 KHz and 50 KHz.
