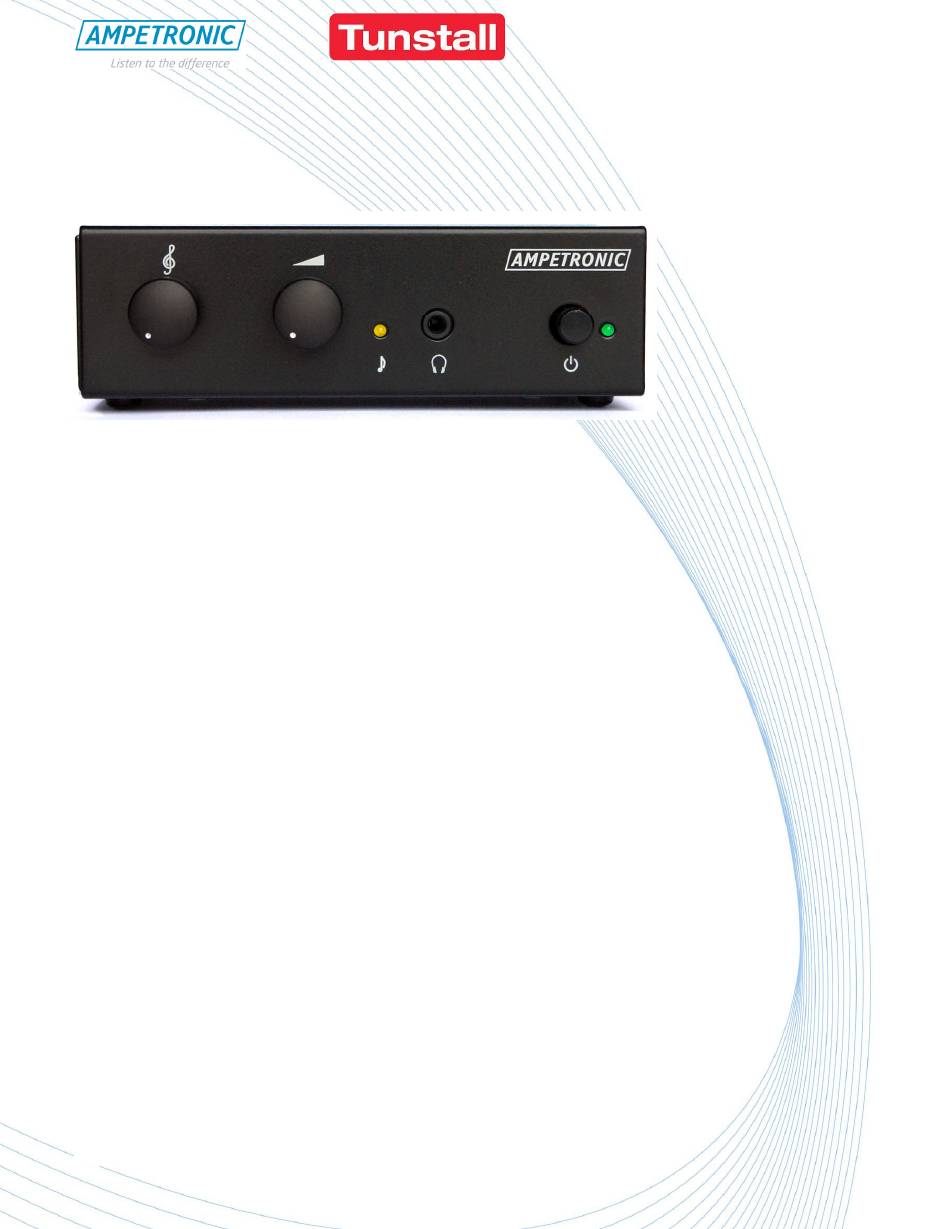

Connect+ and Communicall Connect Speech Module This manual is a detailed guide for the installation and adjustment of the Ampetronic DLS when used with the Tunstall Lifeline Connect+ or Communicall Connect Speech Module Systems IMPORTANT SAFETY INSTRUCTIONS ......2 WARRANTY................. 2 DECLARATION OF CONFORMITY ........
Do not place objects filled with water such as a vase near or on the equipment. Do not install the DLS amplifier near to sources of heat such as radiators, stoves or other equipment producing heat. Do not place the DLS amplifier in a fully enclosed space; ensure that the amplifier has ventilation when in use.
Monitors the signal that is actually broadcast into the loop. Useful for setting up the loop and fault finding. POWER SWITCH To turn power on and off. The Ampetronic DLS can be left on at all times, or turned off when not used as preferred. POWER INDICATOR Green light, on when the unit has power and is turned on.
-32dB the customer should be consulted. Where to position the DLS amplifier? Other loop systems The DLS amplifier should be placed in an accessible location and within a suitable The DLS loop system will create a distance (see cable lengths above) from: strong signal within the area of the loop.
6. INSTALLING THE LOOP Wall / panel mounting Included in the DLS amplifier box is a Room loop installation template for marking out the two screw Provides optimum coverage for listening holes. when moving, standing up or in different Decide on the location for the DLS locations within the room.
Page 8
(seat or backrest). Connect the free end of the cable to the red terminal of the DLS amplifier in the Run the connecting cables to the DLS same way. amplifier.
• Connect the RJ45 and the two loose wires of Cable A to the Lifeline SOURCES Connect+ as shown below: The Ampetronic DLS can accept up to Note. These wires are not polarity 3 additional inputs simultaneously with conscious. the Lifeline Connect+ or Speech Module.
Now adjust the until the light comes on. (The volume control on the DLS until the green compression circuit of the DLS is now and amber LED’s on the ILR3+ flicker active).
Page 11
ADJUSTMENTS TO THIS CONTROL. • LIFELINE CONNECT+ Disconnect the player and connect the Ensure Input 3 level adjuster on DLS is in required source(s), TV, HiFi etc., to the maximum position and ensure the inputs 1 and 2.
9. TROUBLESHOOTING 2. Interference / hum / background noise in the loop The Ampetronic DLS should not require any maintenance or support. • Check the hearing aids / receivers In the event that you have problems, are set correctly. please consult the list of possible •...
10. SYSTEM SPECIFICATION Tone control: DLS Specification A modified tone control allowing a flat response or bass boost / Inputs: HF cut or HF boost / bass cut, with additional HF boost to allow compensation for distortion due to metal structures in surrounding 1 &...
Page 14
Universal Adapter Specification Direct throughput: Input impedance: >10k @ 1kHz. Output impedance: 5 k . Gain = -6 dB. Overload: 5V RMS @ 1 kHz. Frequency response: 100Hz to 20kHz, -3dB. Buffer amplifier enabled: Input impedance: > 1 M + 120pF. Output impedance: 1k .
