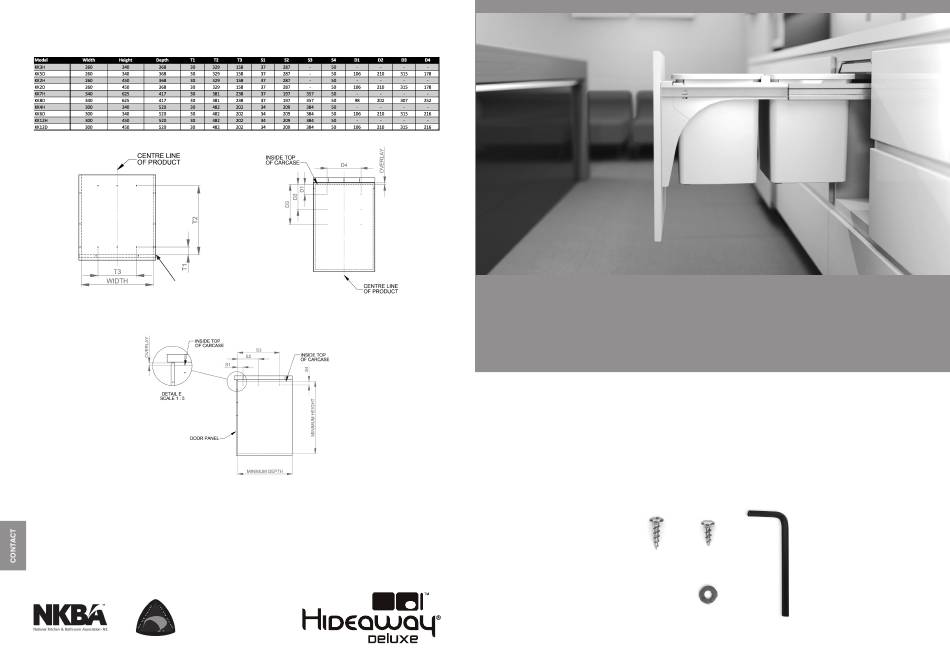

INSTALLATION DIMENSIONS
FRONT OF
CARCASE
CARCASE TOP VIEW
Need more info?
NEW ZEALAND
Phone 09 426 7456
Email info@hideawaybins.co.nz
AUSTRALIA
Freephone 1800 042 642
Email info@hideawaybins.co.nz
DOOR FRONT VIEW
CARCASE SIDE VIEW
Web www.hideawaybins.co.nz
Web www.hideawaybins.com.au
Hideaway
Deluxe Range
®
Installation Instructions
PLEASE READ ALL INSTRUCTIONS BEFORE YOU BEGIN INSTALLING
Important Installation Information for Handle Pull Models:
For handle pull models KK2H, KK3H, KK4H, KK12H, KK7H: If hinges are used that do not allow
the door to clear the opening fully, allow an extra 10mm width. Installation also requires that the
top door hinge be 150mm from the top of the door to allow clearance for the bin handle.
Refer to our website or brochure for the measurements related to your Hideaway Bin.
Fastener Identification:
16mm Surefix
12mm Surefix
Screw
Screw
Washer
4mm
Allen Key
