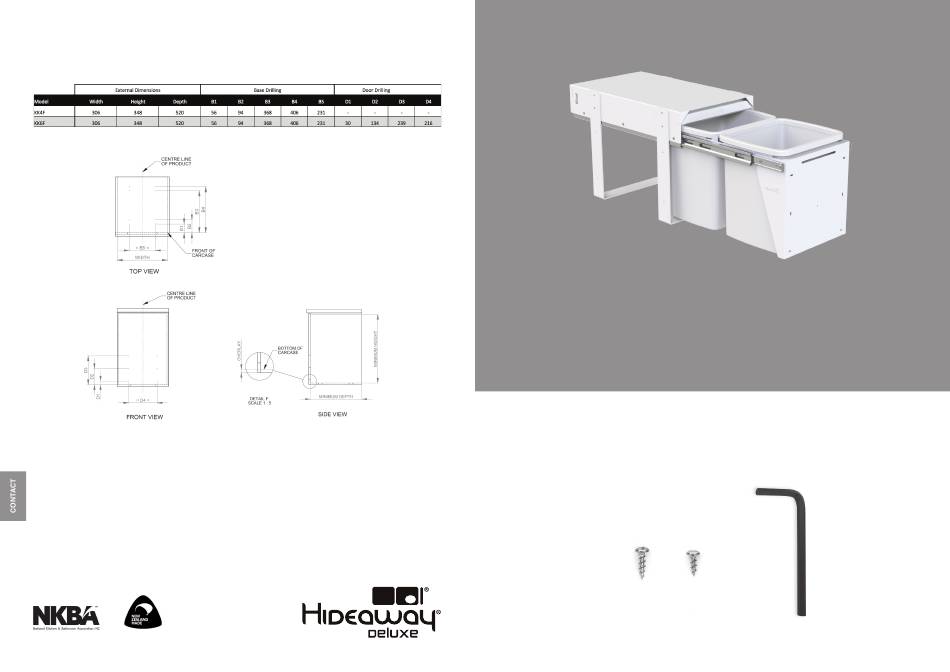

INSTALLATION DIMENSIONS
Need more info?
NEW ZEALAND
Phone 09 426 7456
Email info@hideawaybins.co.nz
AUSTRALIA
Freephone 1800 042 642
Email info@hideawaybins.co.nz
Web www.hideawaybins.co.nz
Web www.hideawaybins.com.au
NZ Patent No. 530285
AUS Patent No. 2004240179
Hideaway
®
Deluxe Range Floor Mount
Installation Instructions
PLEASE READ ALL INSTRUCTIONS BEFORE YOU BEGIN INSTALLING
Important Installation Information for Handle Pull Models:
For handle pull models the stated product installation width applies to installations where the door fully clears the
cabinet opening and may be hinge dependent. The top hinge should be a minimum of 150mm from the top of the
door panel and additional carcase width may be required.
Fastener Identification:
16mm Surefix
12mm Surefix
Screw
Screw
(Door Model only)
4mm
Allen Key
(Door Models Only)
