User manual

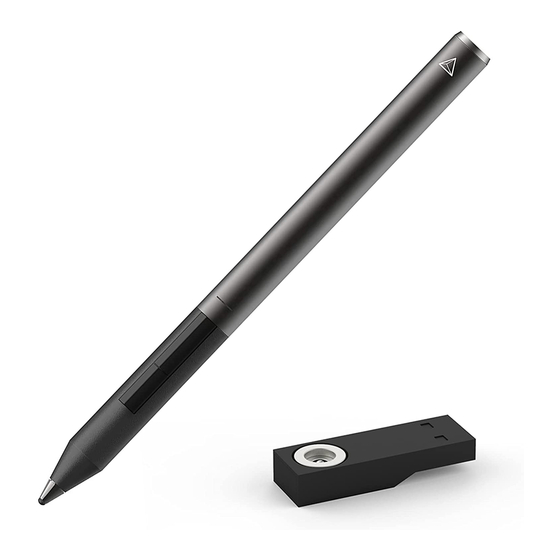

What is the Adonit Pixel?
The Adonit Pixel is a pressure sensitive stylus for iOS devices that incorporates our latest design
improvements to offer superior performance and functionality with improved accuracy and
comfort. Notes, annotation, digital art - the Adonit Pixel does it all!
What devices will Pixel work with?
- Pixel will work just like your finger on any capacitive touch screen device. Features like
pressure sensitivity, palm-rejection, Pixelpoint technology, and use of shortcut buttons require an
iOS device with Bluetooth 4.0.
- Compatible Devices: iPhone 4, 4s, 5, 5c, 5s, 6, 6 Plus, 6s, 6s Plus, SE, 8, 8 Plus, X, Xs, Xr,
iPad Mini, iPad Mini 2, iPad Mini 3, iPad Mini 4, iPad Air, iPad Air 2, iPad 2017 (5th
generation).
What makes the Pixel different?
Pixel is the most advanced stylus we''ve made to date, with Bluetooth features enabling 2048-
level pressure sensitivity, enhanced precision and performance, context-sensitive shortcut
buttons, and even a grip sensor that turns on the stylus when you pick it up! The Pixel also
features a slim, ergonomic body (10.5 mm in diameter) and a new tip design for a smoother and
more natural writing experience.
Compatibility with more iOS devices including iPad Air 2.
New Pixelpoint tip for improved accuracy and a more natural writing experience.
Bluetooth features: Pressure Sensitivity, Palm Rejection, Shortcut Buttons.
Grip Sensor: Pixel will automatically power on when the you pick it up.
Ergonomic 10.5mm diameter body.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Adonit Pixel
Summary of Contents for Adonit Pixel
-
Page 1: User Manual
The Pixel also features a slim, ergonomic body (10.5 mm in diameter) and a new tip design for a smoother and more natural writing experience. - Page 2 How do I turn on and pair Pixel? Turn your Adonit Pixel stylus ON by holding down the black button closest to the tip until a green light shows increasing in brightness and then goes off; your Pixel is now turned on and ready to pair.
- Page 3 Will Pixel work without being paired? Yep! Pixel will work as a basic stylus when it''s not paired as long as Pixel is powered on. Just like your finger, you will be able to use it to interact with the screen. However, Pixel must be paired with an Adonit Connected App to enable its full set of features, optimized precision and accuracy.
- Page 4 Turn Off: Press and hold the button closest to the tip. A green light will flash. Keep holding the button. A red light will flash to indicate the Pixel has been turned off. It takes about 10 seconds to turn the Pixel off.
- Page 5 1) Button section of the Pixel - DO NOT twist the button section of the Pixel. Doing so may damage the wiring. The button section should not move at all. 2) Black writing tip - The writing tip should be completely black. An exposed metallic color indicates damage.
- Page 6 *Update compatible apps and firmware to the latest version. *Determine if it's an issue with the Pixel or the app. Test the pixel on at least two apps to see if the problem persists. If the problem only shows up on one app, then it may be an issue with the...
- Page 7 4) Tap on the "Smart Stylus" option. 5) In the Smart Stylus section select "Adonit." If Adonit is already selected, then select "None" and reselect "Adonit." 6) Hold the nib of the stylus over the blue circle that says "Hold Tip Here" until it connects.
- Page 8 The Pixel doesn't seem to be charging. What can I do? It might be a USB charger issue. Please try the following fixes: 1) Clean the USB charger of obstructions (i.e. dust, paper, etc). Also, clean the charging end of the stylus. You can clean obstructions from both the USB charger and stylus by rubbing it with a microfiber cloth.
- Page 9 3) Make sure the stylus is fully plugged into the USB charging port. The LED power indicator should turn on to indicate the stylus is charging. If the LED power indicator does NOT turn on then try rotating the stylus while in the charger, as well as, removing and putting the stylus back in the charger several times to see if the LED power indicator turns on.
