MotoTec Drifter Manual

MotoTec Drifter Manual

48v electric trike

Advertisement

Quick Links

MotoTec

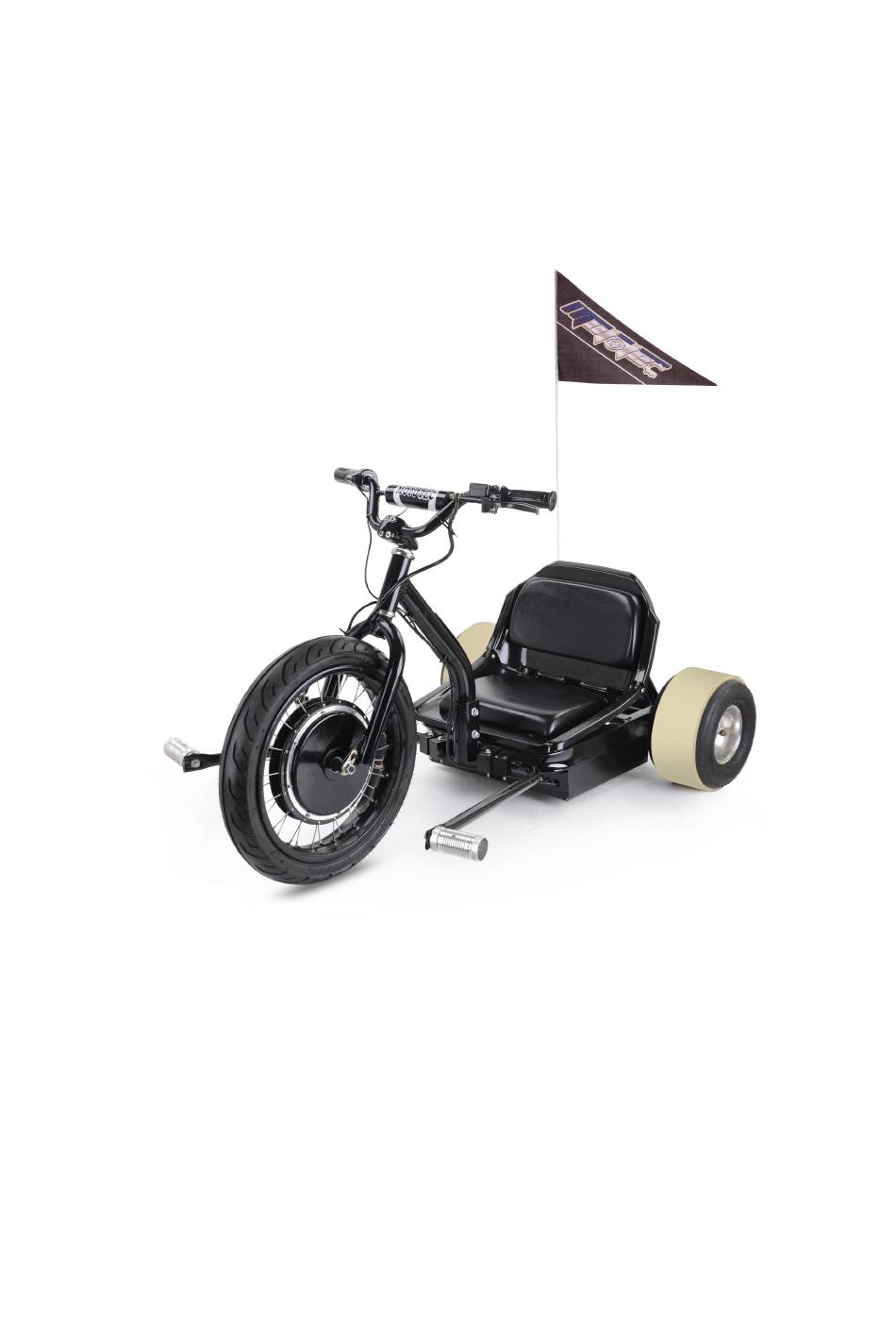

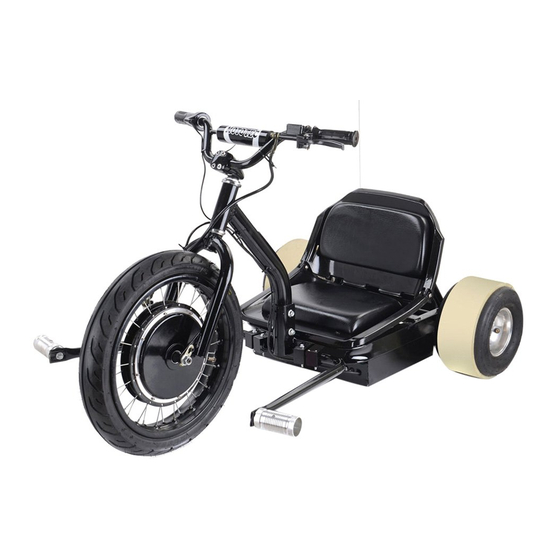

Drifter 48v Electric Trike
!
WARNING Not for under 13 year old
Read this manual completely before rideing your electric trike

Advertisement

loading
Need help?

Need help?

Do you have a question about the Drifter and is the answer not in the manual?

Questions and answers

Summary of Contents for MotoTec Drifter

  • Page 1 MotoTec Drifter 48v Electric Trike △ WARNING Not for under 13 year old Read this manual completely before rideing your electric trike...
  • Page 2 Motor power: 500 Watt Brushless Hub Motor Battery: Four 12v 12ah Batteries (48v total) Max Weight Capacity: 240 Lbs. Recommened Age: 13 and up Charger Included Battery life: Over 300 charges Rated Speed: 22 MPH (weight dependant) Range per charge: 20-25 Miles* Recharge time: 4-8hrs...
  • Page 3 STOP IMPORTANT ! BEFORE YOU OPERATE YOUR ELECTRIC SCOOTER PLEASE READ CAREFULLY: YOUR EXISTING INSURANCE POLICY MAY NOT PROVIDE COVERAGE FOR ELETRIC VEHICLES;YOU SHOULD CONTACT YOUR INSURANCE AGENT TO DETERMINE IF COVERAGE IS PROVIDED. △ Do not ride this scooter until you read and thorughly understand the owner’s manual.If you have questions about the operation of this scooter, you should contat our service deparment.
  • Page 4 WARNING PLEASE MAKE SURE THE QUICK RELEASE HAS BEEN LOCKED BEFORE DRIVING. HANDLEBARS ASSEMBLE MUST OVER SAFETY VALVE AND MAKE SUER HAS BEEN LOCKED. CHECK IF ALL TIRES ARE PROPERLY INFLATED BEFORE RIDING THE SCOOTER. AL WAYS WEAR A HELMET WHEN RIDING THE SCOOTER. WEAR REFLECTIVE CLOTHING.
  • Page 5 WARNING THE ELECTRIC TRISCOOTER IS NOT A TOY AND SHOULD NOT BEOPERATED BY ANY ONE UNDER 13YEARS OLD. Safety Instruction(Please take not of the followings before each Ride.) . The maximum weight capacity is 300lbs. . Only one person at a time should ride. .
  • Page 6: List Of Parts

    LIST OF PARTS handlebar the front wheel motor the seat the rear wheels + drift ring foot flag batteries, controller Turn speed brake...
  • Page 7 Are there on the pedal hint left and right...
  • Page 8 We need to use two screws to fixed Left and right pedal...
  • Page 9 We have total of 4 plugs ,so make sure Connect the same A B C D...
  • Page 10 ASSEMBLING THE ELECTRIC TRI SCOOTER 1.Unpack the Scooter carefully so that you do not misplace any of the parts. 2.Place the Scooter on a flat, level surface.Using any household item, raise the front base of the scooter up at least4 so you can easily connect the frame/front wheel to the base.
  • Page 11 ASSEMBLING THE ELECTRIC TRI SCOOTER 4.The two Allen set screws on the front of the connecting clamp are for removing any play after the bolts have been tightened.First,back of the nuts;second,set the screws;third,tighten the nuts to prevent the screws from backing off. 5.Match the pins of the plugs to the holes of the sockets.Note the alignment notches.
  • Page 12: Charging The Batteries

    CHARGING THE BATTERIES Before you ride the scooter for the first time,it is advised that the unit is to be fully charged(4-6 hours)and fully discharged(ride until the battery gauge indicates low battery)for at least three cycles to maximize the efficiency of the battery.After that,you should continue to charge the battery frequently,at least once every 30days to prolong the battery lifespan.
  • Page 13 RIDING THE TRI SCOOTER Once you have completed the initial charge you are ready to ride.Remember, this is not a toy.The scooter can reach soeeds up to 15.5mph depending on the terrain and the weight of the rider.You must wear a helmet and protective pads.You must also be aware of all local laws and ordiances that govern and/or restrict the use of powered scooters.The laws and ordinances vary greatly from municipally.
  • Page 14 to the “ ON”position.The battery gauge will illuminate indicating that the battery is in operation. Hold onto the handlebars with both hands.Your left fingers will control the byakes and your right thumb will control the thumb throttle .As you depress the throttle lever with your thumb the speed will increase.Release the thumb throttle and apply the brake to stop the scooter.You will control the speed of the scooter by using both the throttle and the brake.When...
  • Page 15: Maintenance

    MAINTENANCE Battery:(for professional use only) The scooter is powered by31Ah36V revhargeable batteries secured in a battery bag.Other than recharging ,these batteries need no maintenance.To prolong battery life,you must recharge the battery after each use.You must also charge your scooter if it has not been used for 30days or more.If you must replace the batteries,they are located at the battery comparment at the footboard.To get them,remove the batteries with new ones and reconnect the wires.Follow the instructions on charging batteries to charge the new batteries.
  • Page 16: Trouble Shootinng Guide

    TROUBLE SHOOTINNG GUIDE (for professional use only) Problem Cause Solution The power light 1.Battery is 1.Recharge your tri scooter. by the thumb discharged. 2.Remove the screws that hold the Throttle dose not 2.Loose connection battery compartment cover and Illuminate when inside the tri scooter raise the cover.Visually inspect all the tri scooter is...
  • Page 17 DO NOT RETURN TO STORE For service, Create Online, Trouble Ticket Http://support.bigtoysusa.com...
