Ozone Generator
With proper care and maintenance, this device should give you years of trouble-free service.
Please take the time to read this manual so that you may safely operate your ozone generator
and utilize the unique properties of ozone.
SPECIFICATIONS
Max. Ozone Output: 200mg/h without connection to air dryer
500mg/hr with connection to air dryer
Ozone output: adjustable
Internal Air Pump Output: 1-2 L/min
Wattage: 10W
Timer: 60min ( every 5 min interval ) and constant ON function
Pump Pressure: 17Kpa
Ozone Generating Method: Corona Discharge (Ozone Tube)
Gas Resource: Ambient Air
Air inlet Dim:6.5mm
Outlet Dim: 6.5mm
Power Source: AC110-120V or AC220-240V
Body Size: 215mmX150mmX60mm
Net Weight: 800g
Power Cable: 1-1.5m in length
Case: Plastic
Accessories Included: 2 sets of hose & diffuser stone, 1 air dryer
Advertisement
Table of Contents
Related Manuals for ENALY OZX-300AT
Summary of Contents for ENALY OZX-300AT
-

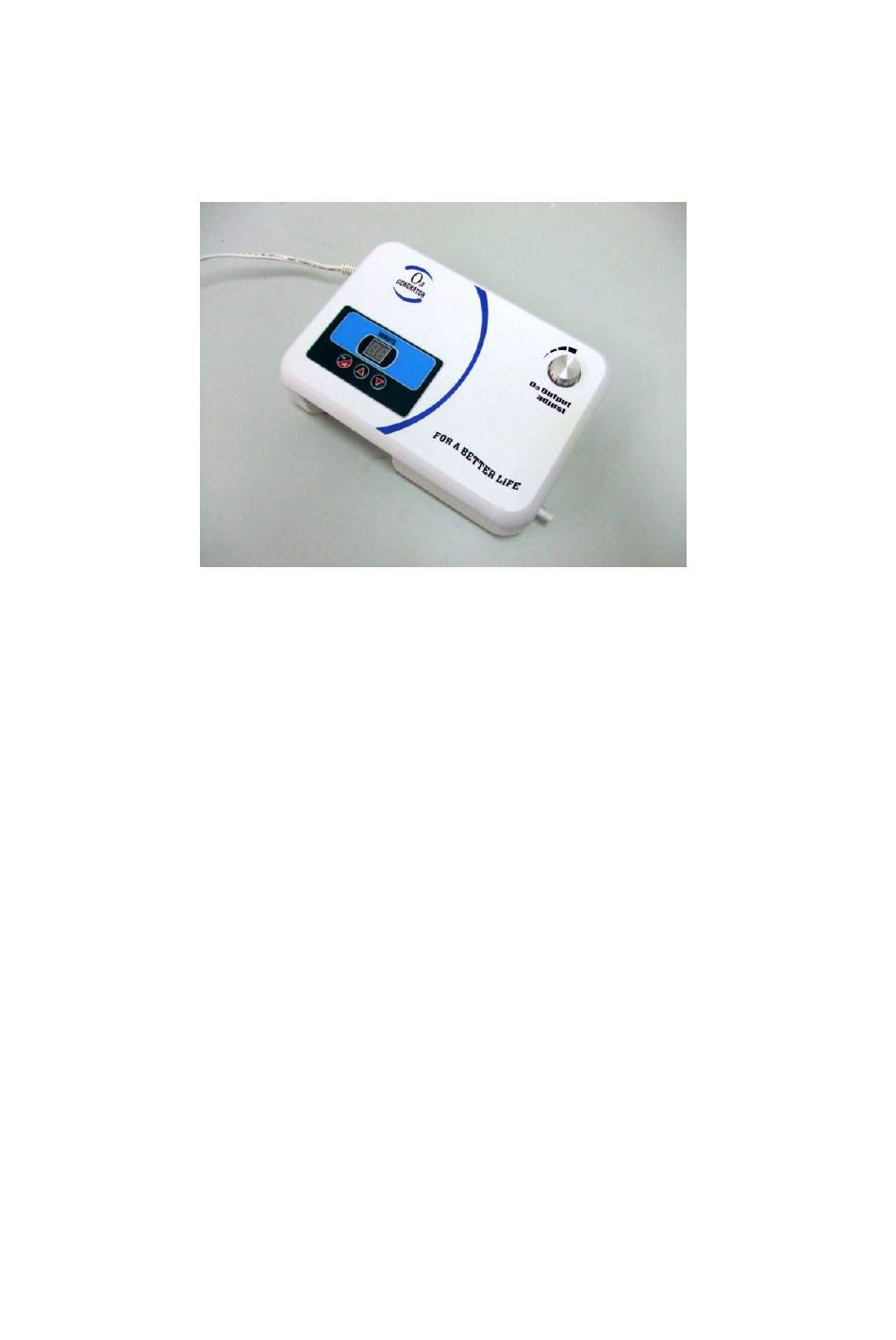

Page 1: Specifications
Ozone Generator With proper care and maintenance, this device should give you years of trouble-free service. Please take the time to read this manual so that you may safely operate your ozone generator and utilize the unique properties of ozone. SPECIFICATIONS Max. -
Page 2: Safety Warnings
8 hour per day/5 days per week (occupational exposure limit) - 0.1 ppm 15 minute (short term exposure limit) - 0.3 ppm The OZX-300AT ozone generator is capable of delivering up to 200 gram of ozone per hour. In an enclosed space, the ozone concentration generated by the OZX-300AT quickly exceeds the 15-minute exposure limit of 0.3 parts per million. -
Page 3: Unit Description
UNIT DESCRIPTION What Is in The Box: 1 OZX-300AT 1 Enaly Air Dryer (200ml) and 1 connecting hose (10 cm) 2 hoses (100 cm each) 2 diffuser stones 1 OZX-300AT user’ s manual 1 Enaly Air Dryer user’ s manual... - Page 4 1. Ensure that all hoses are free from dust or other contaminants before connecting. 2. Connect one end of 10 cm hose to an air inlet (either one) of Enaly Air Dryer. 3. Connect the other end of 10 cm hose to the air inlet of the unit.
- Page 5 3.2 Using the Constant-ON Mode: 3.2a Press and hold the ON/OFF Key for 3 sec. The LED display will show “ ON”to indicate the unit is in the Constant-On mode. The unit will start immediately after “ ON”is shown. 3.2b To stop working under Constant-on mode, press the ON/OFF key.
- Page 6 Ozone generators should never be used as air purifiers in otherwise clean air environments. If you have second hand smoke, musty smells (from mold) or live near a high contamination area (near Depends on freeway, factory etc), then your air will benefit from levels of ozone decontamination.
- Page 7 Foot inflammation is mainly the result of fungus. Soak your feet in ozonated water to kill foot fungus and to promote foot health. Ozonate water in a 10 minutes basin for 10 minutes then soak your feet for 10-15 minutes to gain the benefits of an ozone foot bath. Pudendal pruritus, skin disease, tinea, dermatophytosis...
- Page 8 (2) the selling reseller’ s name, (3) proof of the original purchase containing a description of the product(s), purchase date, and the appropriate Enaly serial and/or lot number; (4) the description of failure. You will be advised by the authorized reseller or us, if you need to return the unit for servicing.
