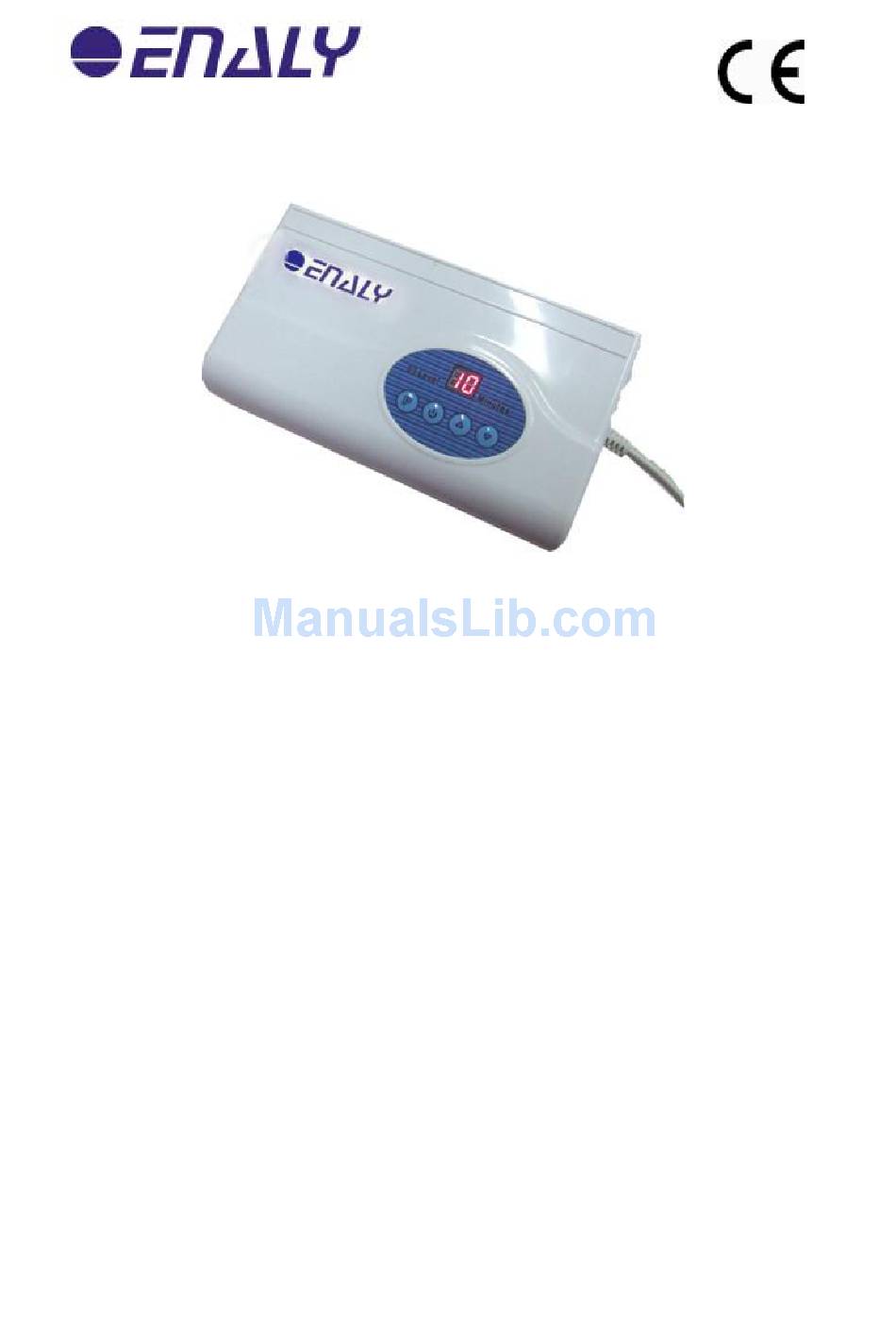

OZX-300ST Ozone Generator
Shanghai ENALY M&E Ltd. Thank You for Purchasing Our Products
With proper care and maintenance, this device should give you years of trouble-free service.
Please take the time to read this manual so that you may safely operate your ozone generator
and utilize the unique properties of ozone.
SPECIFICATIONS
Model Name: OZX-300ST
Max. Ozone Output: 200mg/h without connection to air dryer
500mg/hr with connection to air dryer
Ozone output: adjustable
Internal Air Pump Output: 1-2 L/min
Wattage: 10W
Timer: 1,3,5,10,20,30,..., 90min timers and constant ON function
Pump Pressure: 14-19Kpa
Atmosphere standard: 100±4 Kpa
Ambient Temperature: 0～40℃
Relative Humidity:≤ 80%
Ozone Generating Method: Corona Discharge (Ozone Tube)
Gas Resource: Ambient Air
Air inlet Dim:6.5mm
Outlet Dim: 6.5mm
Power Source: AC220or240V（50Hz±2 or 60Hz±2）
Body Size: 115mmX215mmX55mm
Net Weight: 750g
Power Cable: 1.2m in length
Case: Plastic
Accessories Included: 2 sets of hose & diffuser stone, 1 air dryer
Advertisement
Table of Contents
Related Manuals for ENALY OZX-300ST
Summary of Contents for ENALY OZX-300ST
-
Page 1: Specifications
OZX-300ST Ozone Generator Shanghai ENALY M&E Ltd. Thank You for Purchasing Our Products With proper care and maintenance, this device should give you years of trouble-free service. Please take the time to read this manual so that you may safely operate your ozone generator and utilize the unique properties of ozone. -
Page 2: Safety Warnings
15 minute (short term exposure limit) - 0.3 ppm The OZX-300ST ozone generator is capable of delivering up to 200 gram of ozone per hour. In an enclosed space, the ozone concentration generated by the OZX-300ST quickly exceeds the 15-minute exposure limit of 0.3 parts per million. -
Page 3: Important Warning
IMPORTANT WARNING Shanghai ENALY M&E Ltd. accepts no liability for any damage or injury caused by this product or damages that may arise through its use by the purchaser or by others. The purchaser is responsible for ensuring that the unit is correctly installed, operated and properly maintained. -
Page 4: Before Use Preparation
1. Ensure that all hoses are free from dust or other contaminants before connecting. 2. Connect one end of 10 cm hose to an air inlet (either one) of Enaly Air Dryer. 3. Connect the other end of 10 cm hose to the air inlet of the unit. -
Page 5: Operating The Unit
OPERATING THE UNIT 1. Press the power switch to turn the power on. The LED Display will indicate a timer time last set. 2. Turning the ozone output adjuster to adjust ozone output. The LED Display will indicate Ozone output. There are 9 types: The minimum ozone level is less than 40% of the max. - Page 6 For air treatment it is recommended to run without the hose connecting to the ozone outlet. WARNING: Place the unit at least 10 cm above the liquid’s surface to prevent backflow. Please visit www.enaly.com for information about additional applications and product FAQ’s.
-
Page 7: Maintenance
If a defect exists, at its sole discretion Shanghai Nailing Electron-tech Co., Ltd will repair or replace the product. Any repair or replacement will assumes the remaining warranty period of the original product. All the defects will be repaired by Shanghai ENALY M&E Ltd’s authorized technician. - Page 8 You will be advised by the authorized reseller or us, if you need to return the unit for servicing. You will be responsible for all return shipping costs. Shanghai ENALY M&E Ltd. or the reseller is not responsible for incoming freight costs.
