DVD Soundmachine
Register your product and get support at


Table of Contents

   Also See for Philips AZ5738/93

   Related Manuals for Philips AZ5738/93

   Summary of Contents for Philips AZ5738/93

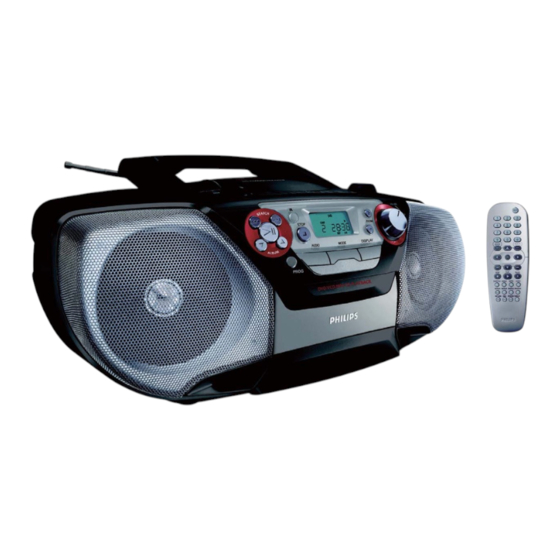

  • Page 1 AZ5738 DVD Soundmachine Register your product and get support at 使用说明...
  • Page 2 This product incorporates copyright protection technol- ogy that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise au- thorized by Macrovision Corporation.
  • Page 3 Index English ------------------------------------------------ 4 -------------------------------------------------------- 28...
  • Page 4: Table Of Contents

    Contents General Information Features ... 5 Discs for playback ... 5 Supplied accessories ... 5 Environmental information ... 5 Care and safety information ... 6 Functional Overview Controls on the system ... 7 Remote control ... 8 Connection Connecting a TV set ... 9 Connecting the power cord ...
  • Page 5: General Information

    Congratulations on your purchase and welcome to Philips! To fully benifit from the support that Philips offers, register your product at Features Your DVD Soundmachine with 2.0-channel full analog amplifier creates the same dynamic sound qualities that you find in full-fledged cinemas and incorporates some of the best features in home theater technology.
  • Page 6: Care And Safety Information

    ● After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. Finding a suitable location ●...
  • Page 7: Functional Overview

    ! @#$ Controls on the system 1 LIFT TO OPEN to open the disc cover 2 TUNING to tune to a radio station 3 VOLUME – to adjust master volume level 4 DISPLAY – to display disc information during disc playback –...
  • Page 8: Remote Control

    Functional Overview Remote control Notes: – The supplied remote control is for disc operation only. – First, select the disc (DVD/VCD/MP3/CD) source on the set, then select the desired function or 2 for example). 1 MUTE – disables or enables sound output 2 Numeric Keypad (0-9) –...
  • Page 9: Connection

    Connecting a TV set Note: – Connect the system directly to the TV set. ● Use the supplied composite video cable (yellow) to connect the system’s VIDEO OUT jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV set.
  • Page 10: Preparations

    Push the source switch to disc mode. Turn on the TV set and set to the correct Video- In channel. You should see the blue Philips DVD background screen on the TV set. ➜ You may go to channel 1 on your TV set, then press the channel down button repeatedly until you see the Video In channel.
  • Page 11: Step 3: Setting Language Preference

    In disc mode, press SYSTEM MENU. Select SYSTEM SETUP Press 5 / 4 keys on the remote control to toggle through the functions and select your preferred option. ➜ Move to “TV System” and press NTSC – Select this if the connected TV set is NTSC system.
  • Page 12: Basic Operations

    Power on the TV system and set to the correct Video In channel . ➜ You should see the blue Philips DVD background screen on the TV set. Lift the disc cover to open the disc tray and load a disc respectively.
  • Page 13: Basic Playback Controls

    Using the disc menu For disc with Table Of Contents, a menu may appear on the TV screen once you load the disc. To select a playback feature or item ● Press 5 / 4 / or numeric keys (0-9) on the remote control, then press 38 on the front panel or PLAY on the remote control...
  • Page 14: Shuffle Play Mode

    Disc Operations During program playback ● Press REPEAT repeatedly to select the following: REP ALL ➜ REP 1 For MP3 repeat - track/album/disc REP 1 ➜ REP DIR ➜ REP ALL ➜ REP OFF Notes: – When you open the disc tray, the Repeat function will be cancelled automatically.
  • Page 15: Special Dvd/vcd Features

    Special DVD/VCD features Changing subtitle language This operation only works on DVDs with multiple subtitle languages. ● Press SUBTITLE to select the desired language. Changing the picture scales This operation only works on VCDs/DVDs/ JPEGs with images. ● Press ZOOM + repeatedly to change the zooming scale: ZOOM OFF p ZOOM X 2 p ZOOM X 3 pZOOMX 4 p ZOOM OFF...
  • Page 16: Moving To Another Title / Chapter And Playing From A Selected Point

    Disc Operations Moving to another title/chapter and playing from a selected point Some discs may contain more than one title or chapter. If the disc has a title or chapter menu recorded on it, you can start playback from the selected item.
  • Page 17: Mp3/picture Disc Operations

    Playing MP3/Picture disc (Kodak, JPEG) IMPORTANT! – You have to turn on your TV set and set to the correct Video In channel. MP3/JPEG Picture disc Load an MP3/Picture (JPEG) disc. ➜ The disc reading time may exceed 30 seconds due to complexity of the directory/file configuration.
  • Page 18: Dvd Menu Operations

    DVD Menu Operations Using the menu bar You can continue some operations directly via the menu bar on the TV screen without interrupting the disc playback. But when you enter (SETUP MENU), the playback will pause. In disc mode, press SYSTEM MENU. ➜...
  • Page 19: Setting The Screen Saver

    Setting the screen saver If set to ON, the screen saver will be activated when you leave the system in stop or pause mode for 5 minutes. The default setting is ON. If screen saver set to off, in any status, the screen saver will not activate.
  • Page 20: Restricting Playback By Setting Rating Level

    DVD Menu Operations Restricting playback by setting rating level Some DVDs may have a rating level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country specific.
  • Page 21: Using The Language Setup Menu

    Using the language setup menu LANGUAGE SETUP function helps you to choose preferred audio language and subtitle, during the playback of DVDs with multiple audio languages and multiple subtitles. In disc mode, press SYSTEM MENU. ➜ The menu bar will appear across the top of the TV screen.
  • Page 22: Tape Operation/recording

    Tape Operation/Recording IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – Store tapes at room temperature and do not put them too close to a magnetic field (for example, a transformer, TV set or speaker).
  • Page 23: Preparation For Recording

    Tape Operation/Recording IMPORTANT! – Recording is permissible if copyright or other rights of third parties are not infringed upon. – Recording is possible only in tape deck. Preparation for recording Load a recordable tape with the open side up and the full spool to the right. Prepare the source to the recorded.
  • Page 24: Specifications

    Specifications AMPLIFIER SECTION Output power ... 24 W PMPO L/R ... 1 W/channel RMS CD Frequency Response ..100Hz - 10kHz / ± 3 dB CD Signal-to-Noise Ratio>50dB (A-WEIGHED) Output Sensitivity Line Out(1kHz 0dB) ... 2± 0.2V TUNER SECTION Tuning Range ...
  • Page 25: Troubleshooting

    WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service center.
  • Page 26 Troubleshooting Problem The system does not respond when the buttons are pressed. The language subtitle cannot be changed when playing a DVD. Sound cannot be heard or is of poor quality Poor radio reception. Recording or playback cannot be made The tape deck door cannot open The remote control does not function.
  • Page 27: Glossary

    Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide-screens is 16:9. AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV set, Stereo, etc.).
  • Page 28: Laser Product

    Meet Philips at the Internet AZ5738 CLASS 1 LASER PRODUCT AZ5738_93_UM_V2.0...
