Register your product and get support at
AZ5740
User manual
EN
Downloaded From DvDPlayer-Manual.com Philips Ma

Advertisement

Table of Contents
loading

Related Manuals for Philips AZ5740

Summary of Contents for Philips AZ5740

  • Page 1 Register your product and get support at AZ5740 User manual Downloaded From DvDPlayer-Manual.com Philips Ma...

  • Page 2: Important Safety Instructions

    Only use attachments/accessories specified by the manufacturer. Downloaded From DvDPlayer-Manual.com Philips Ma Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus.
  • Page 3 Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please Downloaded From DvDPlayer-Manual.com Philips Ma...
  • Page 4 Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Downloaded From DvDPlayer-Manual.com Philips Ma Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

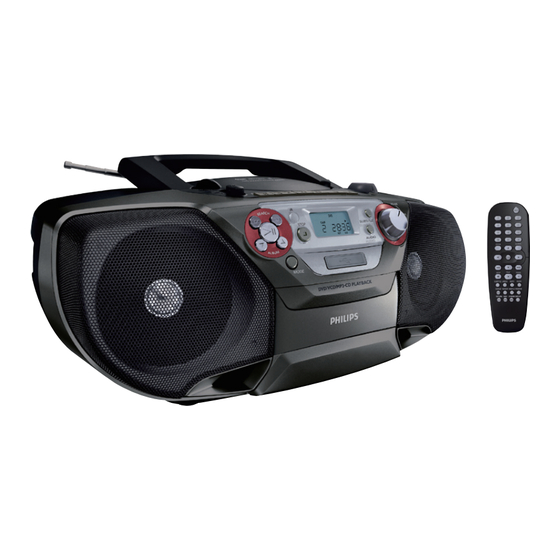

  • Page 5: Your Dvd Soundmachine

    Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. Your DVD Soundmachine Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Downloaded From DvDPlayer-Manual.com Philips Ma...
  • Page 6 Audio from discs, radio, tape, or USB devices. • Pictures from Kodak/JPEG discs, or USB devices. The unit supports the following media formats: Recordable ReWritable You can play DVD discs with the following region codes: DVD region code Countries Asia Pacific, Taiwan, Korea Downloaded From DvDPlayer-Manual.com Philips Ma...

  • Page 7: What's In The Box

    What’s in the box Check and identify the contents of your package: • Main unit • Remote control • AC power cord • Composite AV cable • User manual • Quick start guide Overview of the main unit Downloaded From DvDPlayer-Manual.com Philips Ma...
  • Page 8 Skip to the previous/next track. • Search within a track/disc/USB. ALBUM • Skip to the previous/next album. • The remote control sensor. Downloaded From DvDPlayer-Manual.com Philips Ma Source selector • Turn on or off the unit, or select a source.
  • Page 9 Pause tape play or pause recording. • Jack for headphone. Voltage selector AC MAINS • Socket for the power cord. AV OUT • Transmit audio/video to a connected device. Telescopic antenna • Improve FM reception. Downloaded From DvDPlayer-Manual.com Philips Ma...

  • Page 10: Overview Of The Remote Control

    Overview of the remote control Downloaded From DvDPlayer-Manual.com Philips Ma...
  • Page 11 For DVD, select an audio language. GOTO • For DVD/SVCD/VCD, go to the desired title, chapter or time. • For CD/MP3, go to the desired album/track. PROG • Program tracks. SHUFFLE • Play in random order. Downloaded From DvDPlayer-Manual.com Philips Ma • Show current status.
  • Page 12 • Repeat a specific section within a track/disc. ANGLE • Selects a different viewing angle of a DVD. SUBTITLE • Select a subtitle language. • Start play. • Stop play. • Confirm a selection. ZOOM+/- • Zoom into or out of an image. Downloaded From DvDPlayer-Manual.com Philips Ma...

  • Page 13: Get Started

    Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the bottom of the apparatus. Write the numbers here: Model No.
  • Page 14 AV OUT socket on this unit. Connect the yellow plug to the VIDEO INPUT socket on the TV. Connect the red plug to the AUDIO INPUT socket marked “R”. Connect the white plug to the AUDIO INPUT socket marked “L”. Downloaded From DvDPlayer-Manual.com Philips Ma...

  • Page 15: Connect Power

    Before connecting the AC power cord, ensure you have completed all other connections. Switch the voltage selector at the bottom of the unit to the local power line voltage. Connect the AC power cable to: • the main unit. • the wall socket. Downloaded From DvDPlayer-Manual.com Philips Ma...

  • Page 16: Turn Off

    To search within a track/disc, press and hold then release to resume normal play. Select the correct source on TV Turn on the apparatus. Push the source selector to DISC. Turn on the TV and then select the correct video source. Downloaded From DvDPlayer-Manual.com Philips Ma...

  • Page 17: Play From Usb

    • To search within an audio file, press and hold then release to resume normal play. Play tape Note • When you play or record a tape, the sound source cannot be changed. Downloaded From DvDPlayer-Manual.com Philips Ma Push the source selector on the main unit to TAPE.

  • Page 18: Listen To A Radio Station

    For optimal reception, fully extend and adjust the position of the antenna. Push the source selector on the main unit to FM. Turn TUNING to tune to a radio station. Play options Adjust volume Downloaded From DvDPlayer-Manual.com Philips Ma During play, turn VOLUME to increase/decrease the volume level.

  • Page 19: Mute Sound

    Activate/deactivate screen saver. PICTURE MUSIC Turn on/off the background music. SLIDE TIME Set slide time for pictures. PASSWORD Set password to restrict the play of discs. RATING Select rating level for different viewers. DEFAULT Restore original setting. Downloaded From DvDPlayer-Manual.com Philips Ma...

  • Page 20: Use The Disc Menu

    Select video output format to TV system. TV TPYE Select display aspect ratio. Use the disc menu When you load a (S)VCD disc, a menu may be displayed on the TV screen. Downloaded From DvDPlayer-Manual.com Philips Ma To access or exit the menu manually:...

  • Page 21: Select Repeat Mode

    The section A and B can be set only within the same track. Search by time or chapter/track number During video/audio play, press GOTO until a time field or track field is displayed. • For the time field, enter the play position in hours, minutes and seconds. • For the track field, enter the track number. Downloaded From DvDPlayer-Manual.com Philips Ma Play starts automatically at your selected point. »...

  • Page 22: Display Play Information

    • Mono Left • Mono Right • Stereo Other features Record Note • To record, use only "Normal" (IEC type I) tapes on which the Downloaded From DvDPlayer-Manual.com Philips Ma write-protect notches (tabs) are not broken.

  • Page 23: Record From Radio To Tape

    Load a tape. Push the source selector on the main unit to FM. Adjust VOLUME to tune to the desired radio station. Press RECORD to start recording. Downloaded From DvDPlayer-Manual.com Philips Ma • To stop recording, press STOP/OPEN...

  • Page 24: Listen Through Headphone

    Plug a headphone into the socket on the unit. Product information Note • Product information is subject to change without prior notice. Specifications Disc Laser Type Semiconductor Disc Diameter 12cm/8cm Support Disc CD-DA, CD-R, CD-RW, MP3- Downloaded From DvDPlayer-Manual.com Philips Ma CD, WMA-CD...

  • Page 25: Tape Deck

    Wow and flutter <0.4% JIS General Power supply Input: 110V~127V / 220V~240V ;50/60Hz Operation Power Consumption 16 W Standby Power Consumption ≤ 1.2 W Dimensions Downloaded From DvDPlayer-Manual.com Philips Ma - Main Unit (W x H x D) 341 x 297 x 177 mm...

  • Page 26: Supported Mp3 Disc Formats

    Number of tracks/titles: maximum 999 • ID3 tag v2.0 or later • File name in Unicode UTF8 (maximum length: 128 bytes) Unsupported formats: • Empty albums: an empty album is an album that does not contain MP3/WMA files, and is not be shown in the display. Downloaded From DvDPlayer-Manual.com Philips Ma...

  • Page 27: Maintenance

    After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good play quality, clean the disc lens with Philips CD lens cleaner or any commercially available cleaner. Downloaded From DvDPlayer-Manual.com Philips Ma Follow the instructions supplied with cleaner.

  • Page 28: Troubleshooting

    If the problem remains unsolved, go to the Philips web site (www.philips.com/support). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available. Downloaded From DvDPlayer-Manual.com Philips Ma No power/No sound •...
  • Page 29 Clean deck parts. • Use only NORMAL tape. • Apply a piece of adhesive tape over the missing tab space. USB device not supported • The USB device is incompatible with the unit. Try another one. Downloaded From DvDPlayer-Manual.com Philips Ma...
  • Page 30 2014 © WOOX Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited Downloaded From DvDPlayer-Manual.com Philips Ma under license from Koninklijke Philips N.V. AZ5740_98_UM_V4.0...
