Summary of Contents for DirectOut Technologies ANNA-LISA

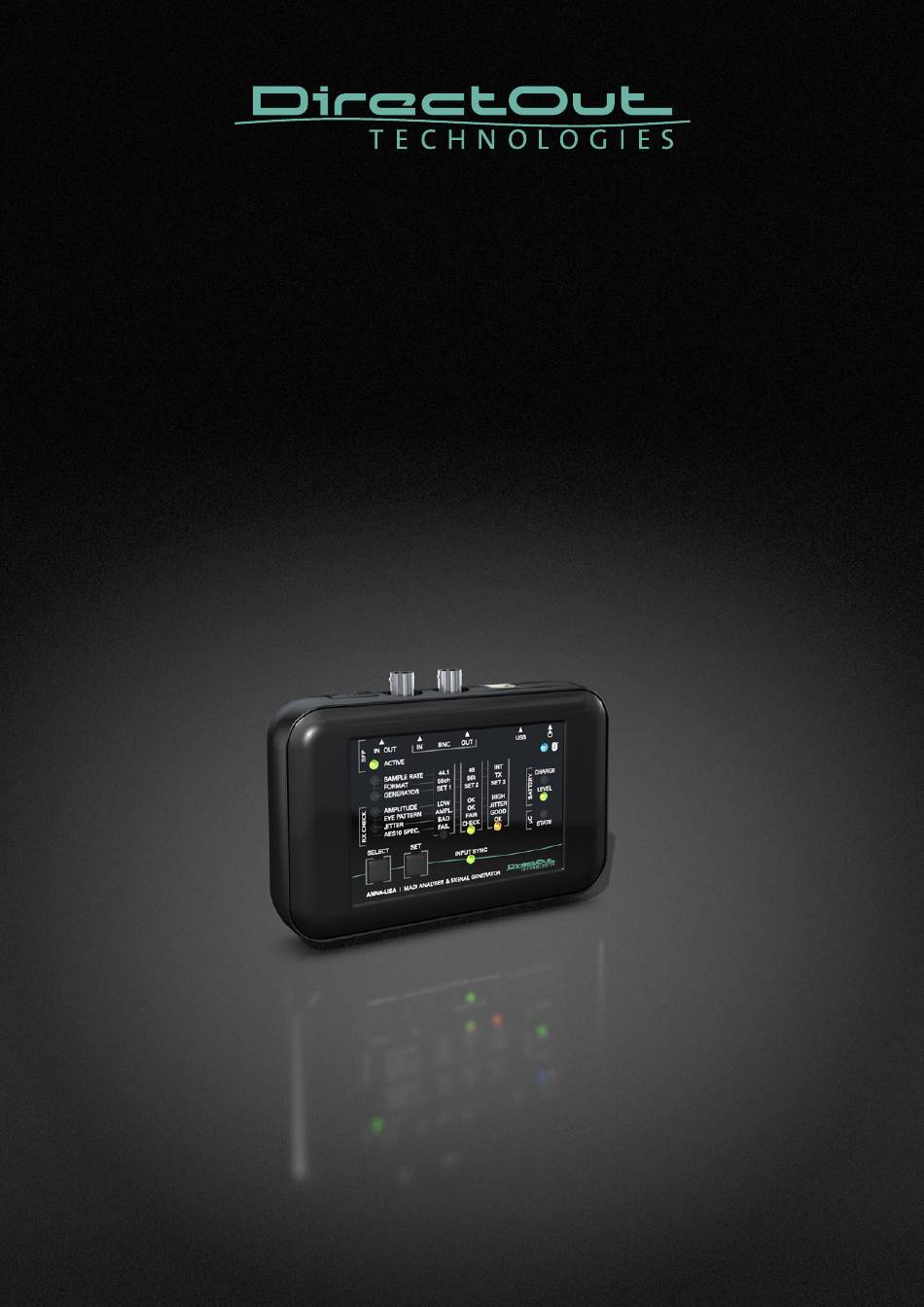

- Page 1 ANNA-LISA User‘s Manual Version 1.1...
- Page 2 DirectOut GmbH cannot be held responsible for any misleading or incorrect informa- tion provided throughout this manual. DirectOut GmbH reserves the right to change specifications at any time without notice. DirectOut Technologies® is a registered trademark of the DirectOut GmbH. © DirectOut GmbH, 2019 page 2 of 36...
-
Page 3: Table Of Contents
AES10 Spec Conformity ................22 Input Selection .................... 23 Sync......................23 Sample Rate ....................24 Format ......................25 Generator ....................26 Amplitude ....................27 Eye Pattern ....................28 Jitter ......................29 ANNA-LISA Manual - Version 1.1 page 3 of 36... - Page 4 CHAPTER 5: Troubleshooting and Maintenance Troubleshooting ................... 31 Maintenance ....................31 CHAPTER 6: Technical Data Index page 4 of 36 ANNA-LISA Manual - Version 1.1...
-
Page 5: About This Manual
N OT E S are used for important points of clarification or cross references. WAR NI N GS! alert you when an action should always be observed. ANNA-LISA Manual - Version 1.1 page 5 of 36... -
Page 6: Chapter 1: Overview Introduction
Introduction Welcome to ANNA-LISA, DirectOut’s battery powered and mobile analyser and signal generator for MADI signals. ANNA-LISA provides a coaxial MADI I/O for standard BNC cabling and a fl exible SFP I/O to meet various connection standards by using SFP modules. Input signals are analysed (e.g. signal level, jitter, sample rate,...) and can be output or replaced by a generated signal (e.g. -
Page 7: Applications
CHAPTER 1: Overview Applications ANNA-LISA can be used in numerous applications where MADI connections are used. Both proper signal analysis and test signal generation serve the aim of solid operating conditions in MADI environments. Typical applications include: • ensuring stable signal connections •... -
Page 8: Chapter 2: Legal Issues & Facts
• Contact your DirectOut representative for exchanging the battery. • Do not expose the battery to temperatures below 0°C or higher than 45° C. • The battery is excluded from warranty claims. page 8 of 36 ANNA-LISA Manual - Version 1.1... -
Page 9: Defective Parts/Modules
Check their pulse and reanimate if their respiration is poor. Lay the body down and turn it to one side. Call for a doctor immediately. • Having sustained an electric shock, Always consult a doctor. ANNA-LISA Manual - Version 1.1 page 9 of 36... -
Page 10: Updates
This guide refers to firmware version 1.0. Intended Operation ANNA-LISA is designed for analysis and generation of MADI signals (AES10). WARN ING ! No compensation can be claimed for damages caused by operation of this unit other than for the intended use described above. Consecutive damages are also excluded explicitly. -
Page 11: Conformity & Certificates
EN61000-4-3 radiated field / EN61000-4-6 RF immunity / EN61000-4-8 power magnetic immunity Bluetooth® The installed bluetooth® antenna complies with the standards listed below: • BQB Listed: B014867 - SPP and DUN profiles ANNA-LISA Manual - Version 1.1 page 11 of 36... -
Page 12: Contact
Manufacturer: Leine-Weser-Labor GmbH, Brabeckstr. 121, 30539 Hannover, Germany Contents The contents of your ANNA-LISA package should include: • 1 x ANNA-LISA • 1 x USB cable • 1 x product information To complete the delivery please download from the DirectOut website: www.directout.eu... -
Page 13: Accessory
Temperature (min) 0° Celsius 0° Celsius Temperature (max) 70° Celsius 70° Celsius Type of DDM/DOM internal internal Extinction Ratio 8.20 dB 9 dB The modules support all analysing features of ANNA-LISA. ANNA-LISA Manual - Version 1.1 page 13 of 36... -
Page 14: Chapter 3: Installation
Connect signal cable(s) for the MADI signals. Turn on the power switch. T I P! Keep any packaging in order to protect the device should it need to be dispatched for service. page 14 of 36 ANNA-LISA Manual - Version 1.1... -
Page 15: Charging The Battery
N OT E If the battery is empty the device can be operated with an external USB power supply. The battery can only be charged when the device is switched off. ANNA-LISA Manual - Version 1.1 page 15 of 36... -
Page 16: Chapter 4: Operation
• 44.1 kHz or 48 kHz = 1 FS • 88.2 kHz or 96 kHz = 2 FS • 176.4 kHz or 192 kHz = 4 FS page 16 of 36 ANNA-LISA Manual - Version 1.1... -
Page 17: Global Control
USB 2.0 socket (Type B) Connect here for charging the battery. Signal Connections ANNA-LISA provides two MADI I/Os: • coaxial BNC port • SFP cage to connect other media carrying MADI signals, e.g. fi bre (single mode/multi mode), different wavelengths etc. -
Page 18: Battery
= immediate charging required (< 3.3 V) NOT E The operating time of the battery depends on the environmental conditions (tem- perature, type of installed SFP module). NOT E See „Charging the battery“ on page 15. page 18 of 36 ANNA-LISA Manual - Version 1.1... -
Page 19: State
The device is equipped with a bluetooth® antenna for remote control via mobile devices. Bluetooth® LED (blue) - indicating connection state with remote software OFF = no remote connection active ON = remote software is connected ANNA-LISA Manual - Version 1.1 page 19 of 36... -
Page 20: Operating Principles
The three LEDs in the row monitor the of the selected parameter (except the SFP ACTIVE parameter). The values are expressed by using different colors and combinations of the three LEDs. page 20 of 36 ANNA-LISA Manual - Version 1.1... -
Page 21: Menu Structure
64ch, 48k, TX 56ch, 48k, TX 64ch, 96k, TX 56ch, 96k, TX PRESET 0 PRESET 1 PRESET 2 Generator PRESET 3 Amplitude Eye Pattern Jitter * LED display depends on input signal ANNA-LISA Manual - Version 1.1 page 21 of 36... -
Page 22: Aes10 Spec Conformity
MADI stream has questionable prop- FAIL OFF erties that might cause problems. CHECK ON yellow OK OFF All measured properties are within FAIL OFF normal parameters. CHECK OFF OK ON green page 22 of 36 ANNA-LISA Manual - Version 1.1... -
Page 23: Input Selection
The device can be clocked internally or by the active input signal. INPUT SYNC LED (green) - indicating input lock/sync state = no signal detected = locked and input signal is in sync with clock reference blinking = locked on input signal ANNA-LISA Manual - Version 1.1 page 23 of 36... -
Page 24: Sample Rate
44.1 kHz, > 1 FS 44.1 ON yellow 48 OFF INT ON yellow internal clock, 48 kHz, > 1 FS 44.1 OFF 48 ON yellow INT ON yellow Pressing ‘SELECT’ exits the sample rate submenu. page 24 of 36 ANNA-LISA Manual - Version 1.1... -
Page 25: Format
96k OFF TX ON yellow 64ch, 96k Frame 56ch OFF 96k ON green TX ON yellow 56ch, 96k Frame 56ch ON green 96k ON green TX ON yellow Pressing ‘SELECT’ exits the format submenu. ANNA-LISA Manual - Version 1.1 page 25 of 36... -
Page 26: Generator
(good for debugging 2FS /4FS setups SET 3 OFF with s/mux) Preset 3 SET 1 OFF uncorrelated pink noise on all chan- SET 2 OFF nels SET 3 ON green Pressing ‘SELECT’ exits the generator submenu. page 26 of 36 ANNA-LISA Manual - Version 1.1... -
Page 27: Amplitude
For the SFP input, the RX power measurement of the SFP module is read out and displayed in the same fashion as for the BNC input. If the SFP module has no DDM capabilities, the ‘AMPLITUDE’ led blinks to indicate that this parameter cannot be measured. ANNA-LISA Manual - Version 1.1 page 27 of 36... -
Page 28: Eye Pattern
JITTER ON yellow If the SFP input is selected, a module with DDM is required for the signal level analysis (see „Amplitude“ on page 27). * exemplary code - more combinations possible. page 28 of 36 ANNA-LISA Manual - Version 1.1... -
Page 29: Jitter
For the SFP input, the RX power measurement of the SFP module is read out and displayed in the same fashion as for the BNC input. If the SFP module has no DDM capabilities, the ‘AMPLITUDE’ led blinks to indicate that this parameter cannot be measured. ANNA-LISA Manual - Version 1.1 page 29 of 36... - Page 30 CHAPTER 4: Operation page 30 of 36 ANNA-LISA Manual - Version 1.1...
-
Page 31: Troubleshooting
Maintenance To clean the device, use a soft, dry cloth. To protect the surface, avoid using clean- ing agents. The device should be switched off during the cleaning process. ANNA-LISA Manual - Version 1.1 page 31 of 36... -
Page 32: Chapter 6: Technical Data
MADI Format (I/O) • 48k Frame, 96k Frame • 56 channel, 64 channel • 1 x USB socket (Type B) • for charging Bluetooth® • Bluetooth 2.1/2.0/1.2/1.1 (fully qualified) • v2.0+EDR support page 32 of 36 ANNA-LISA Manual - Version 1.1... -
Page 33: Index
Defective Parts/Modules ......9 Environmental Conditions ......14 Feature Summary ........6 Firmware Update ........14 First Aid ............. 9 Intended Operation ........10 Menu Structure ........21 Pink Noise see Generator ANNA-LISA Manual - Version 1.1 page 33 of 36... - Page 34 Notes page 34 of 36 ANNA-LISA Manual - Version 1.1...
- Page 35 Notes ANNA-LISA Manual - Version 1.1 page 35 of 36...
- Page 36 DirectOut GmbH Leipziger Strasse 32 T: +49-3727-5665-100 09648 Mittweida F: +49-3727-5665-101 Germany www.directout.eu...
