Summary of Contents for DirectOut Technologies MADI.MONI

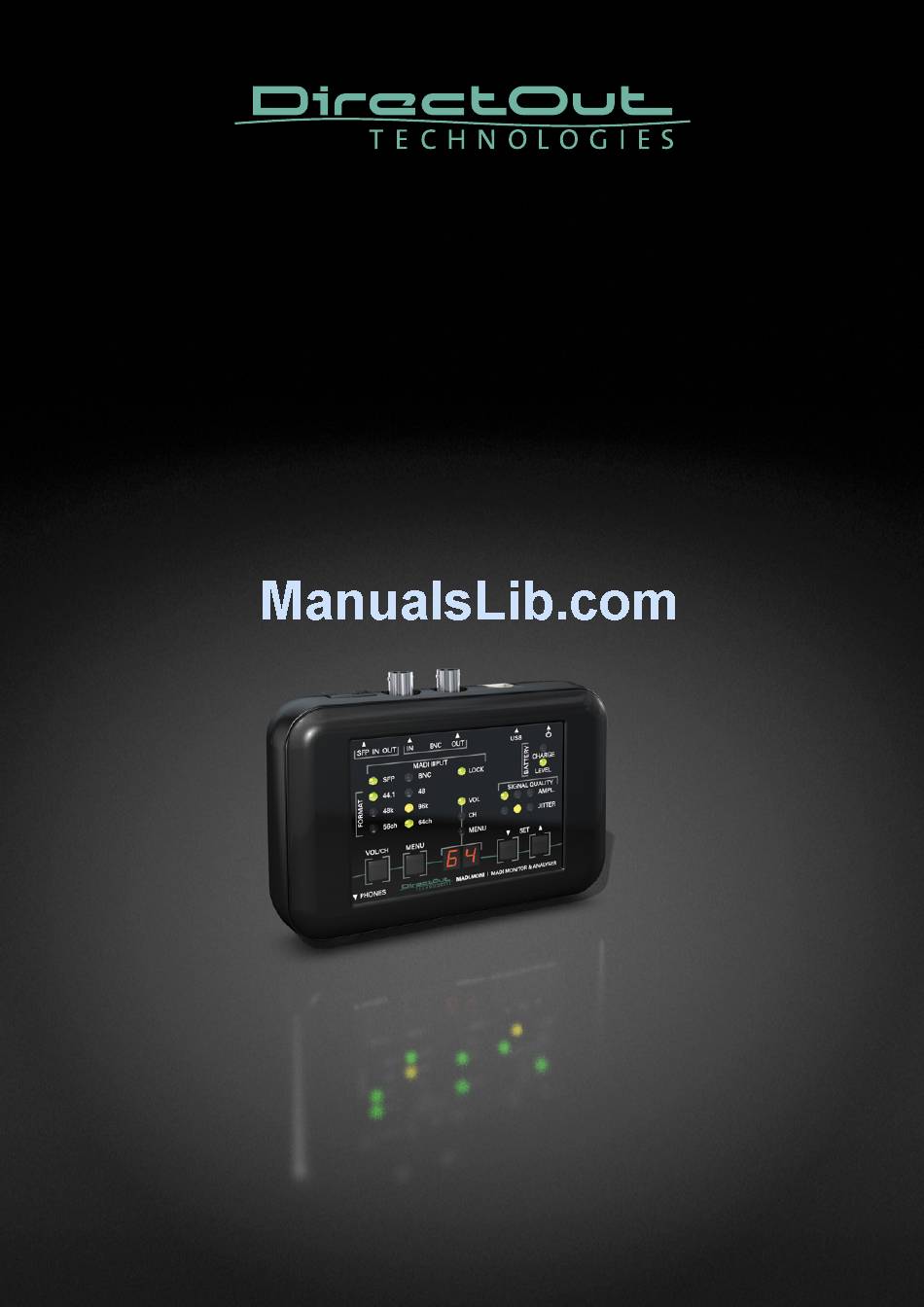

- Page 1 MADI.MONI User‘s Manual Version 1.1...
- Page 2 DirectOut GmbH cannot be held responsible for any misleading or incorrect information provided throughout this manual. DirectOut GmbH reserves the right to change specifications at any time without notice. DirectOut Technologies® is a registered trademark of the DirectOut GmbH. © DirectOut GmbH, 2017 page 2 of 40...
-
Page 3: Table Of Contents
Input Selection .................... 26 Sync......................26 Menu Structure ................... 27 Sample Rate ....................28 Frame Format ....................29 Channel Mode ..................... 30 Amplitude ....................31 Jitter ......................32 Calibration BNC I/O ..................33 MADI.MONI Manual - Version 1.1 page 3 of 40... - Page 4 CHAPTER 5: Troubleshooting and Maintenance Troubleshooting ................... 35 Maintenance ....................35 CHAPTER 6: Technical Data Index page 4 of 40 MADI.MONI Manual - Version 1.1...
-
Page 5: About This Manual
N OT E S ! are used for important points of clarification or cross references. WAR NI N GS! alert you when an action should always be observed. MADI.MONI Manual - Version 1.1 page 5 of 40... -
Page 6: Chapter 1: Overview Introduction
Introduction Welcome to MADI.MONI, DirectOut’s battery powered, mobile monitor and tester for MADI signals. MADI.MONI provides a coaxial MADI I/O for standard BNC cabling and a fl exible SFP I/O to meet various connection standards by using SFP modules. Input signals are analysed (e.g. signal level, jitter, sample rate,...) and can be monitored via a headphone output. -
Page 7: Applications
CHAPTER 1: Overview Applications MADI.MONI can be used in numerous applications where MADI connections are used. Both quick integrity check of the physical link and monitoring the audio signal serve the aim of solid operating conditions in MADI environments. Typical applications include: •... -
Page 8: Chapter 2: Legal Issues & Facts
• Contact your DirectOut representative for exchanging the battery. • Do not expose the battery to temperatures below 0°C or higher than 45° C. • The battery is excluded from warranty claims. page 8 of 40 MADI.MONI Manual - Version 1.1... -
Page 9: Defective Parts/Modules
Check their pulse and reanimate if their respiration is poor. Lay the body down and turn it to one side. Call for a doctor immediately. • Having sustained an electric shock, Always consult a doctor. MADI.MONI Manual - Version 1.1 page 9 of 40... -
Page 10: Updates
This guide refers to firmware version 1.3. Intended Operation MADI.MONI is designed for analysis and monitoring of MADI signals (AES10). WARN ING ! No compensation can be claimed for damages caused by operation of this unit other than for the intended use described above. Consecutive damages are also excluded explicitly. -
Page 11: Conformity & Certificates
Due to the directive 2002/96/EC for waste disposal this device must be recycled. For correct recycling please dispatch the device to: DirectOut GmbH, Leipziger Str. 32 09648 Mittweida Germany Only stamped parcels will be accepted! WEEE-Reg.-No. DE 123456789 MADI.MONI Manual - Version 1.1 page 11 of 40... -
Page 12: Contact
Manufacturer: Leine-Weser-Labor GmbH, Brabeckstr. 121, 30539 Hannover, Germany Contents The contents of your MADI.MONI package should include: • 1 x MADI.MONI • 1 x USB cable • 1 x product information To complete the delivery please download from the DirectOut website: www.directout.eu... -
Page 13: Accessory
Temperature (min) 0° Celsius 0° Celsius Temperature (max) 70° Celsius 70° Celsius Type of DDM/DOM internal internal Extinction Ratio 8.20 dB 9 dB The modules support all analysing features of MADI.MONI. MADI.MONI Manual - Version 1.1 page 13 of 40... -
Page 14: Chapter 3: Installation
Ensure that the unit has suffi cient air circulation for cooling. Connect signal cable(s) for the MADI signals. Connect the headphones for monitoring. Turn on the power switch and check the battery condition. page 14 of 40 MADI.MONI Manual - Version 1.1... - Page 15 N OT E ! ! To update the fi rmware an installed USB Serial driver (Windows®) and the Update Tool are necessary. The software and the installation instructions are available at www.directout.eu. MADI.MONI Manual - Version 1.1 page 15 of 40...
- Page 16 Calibration of BNC I/O To assure accuracy of the measuring of a coaxial MADI signal, the BNC I/O shall be calibrated first - see „Calibration BNC I/O“ on page 33. page 16 of 40 MADI.MONI Manual - Version 1.1...
-
Page 17: Charging The Battery
N OT E ! If the battery is empty the device can be operated with an external USB power supply. The battery will only be charged when the device is switched off. MADI.MONI Manual - Version 1.1 page 17 of 40... -
Page 18: Chapter 4: Operation
• 44.1 kHz or 48 kHz = 1 FS • 88.2 kHz or 96 kHz = 2 FS • 176.4 kHz or 192 kHz = 4 FS page 18 of 40 MADI.MONI Manual - Version 1.1... -
Page 19: Global Control
Connect here for charging the battery or fi rmware updates. Signal Connections MADI.MONI provides two MADI I/Os: • coaxial BNC port • SFP cage to connect other media carrying MADI signals, e.g. fi bre (single mode/multi mode), different wavelengths etc. -
Page 20: Battery
NOT E ! The operating time of the battery depends on the environmental conditions (temperature, type of installed SFP module). NOT E ! See „Charging the battery“ on page 17 . page 20 of 40 MADI.MONI Manual - Version 1.1... -
Page 21: Operating Principles
On the following pages each parameter and its corresponding values are described. The „Menu Structure“ on page 27 provides a basic overview of the device settings. MADI.MONI Manual - Version 1.1 page 21 of 40... - Page 22 The content of the alphanumeric display follows the navigation control. The device resumes to idle mode (= level meter) after about 10 seconds. NOT E ! Volume Control and Channel Selection do not affect the MADI output signal. page 22 of 40 MADI.MONI Manual - Version 1.1...
- Page 23 = monitoring channel 05 (both sides) * the monitoring mode for the headphones output is adjusted in the device settings - see „Display - Menu settings“ on page 24. MADI.MONI Manual - Version 1.1 page 23 of 40...
- Page 24 * A 96k Frame input signal forces the scaling factor temporarily to 2 FS, overriding this setting until a 48k Frame input signal is resumed. Legend: c = cage = SFP , C = Channel = monitor channel mode page 24 of 40 MADI.MONI Manual - Version 1.1...
- Page 25 Display - Level meter (during idle mode) Display The signal level of the selected channels is indicated (left and right individually). LSB is used = audio is present - 30 dBFS - 18 dBFS - 6 dBFS MADI.MONI Manual - Version 1.1 page 25 of 40...
-
Page 26: Input Selection
= no signal detected at selected input = selected input is in sync FLASHING = selected input is locked but clock rate is out of range (< 28 kHz or > 54 kHz) page 26 of 40 MADI.MONI Manual - Version 1.1... -
Page 27: Menu Structure
2 = dim level 2 Display Brightness 3 = dim level 3 4 = dim level 4 Legend: c = cage = SFP , C = Channel = monitor channel mode MADI.MONI Manual - Version 1.1 page 27 of 40... -
Page 28: Sample Rate
44145 Hz < FS < 47952 Hz both leds FLASHING green FS = 48000 Hz ± 0.1 % 44.1 OFF 48 ON FS > 48049 Hz 44.1 OFF 48 FLASHING green page 28 of 40 MADI.MONI Manual - Version 1.1... -
Page 29: Frame Format
96k ON, yellow N OT E ! A 96k Frame signal forces the scaling factor temporarily to 2 FS. Once a 48k Frame signal is detected the set scaling factor is resumed. MADI.MONI Manual - Version 1.1 page 29 of 40... -
Page 30: Channel Mode
64ch OFF 56 channels < N < 64 channels both leds FLASHING concurrently, green N = 64 channels 56ch OFF 64ch ON, green N > 64 channels 56ch OFF 64ch FLASHING, green page 30 of 40 MADI.MONI Manual - Version 1.1... -
Page 31: Amplitude
The AES10 spec requires the voltage of the carrier to be between 300..600 mV. N OT E It is advised to perform the calibration of the BNC I/O at periodic intervals - see page 33. MADI.MONI Manual - Version 1.1 page 31 of 40... -
Page 32: Jitter
LEFT ON, yellow MID OFF RIGHT OFF average LEFT OFF MID ON, yellow RIGHT OFF good LEFT OFF MID ON, green RIGHT ON, green excellent LEFT OFF MID OFF RIGHT ON, green page 32 of 40 MADI.MONI Manual - Version 1.1... -
Page 33: Calibration Bnc I/O
Display Progress of calibration calibration process is initiated calibration phase 2 calibration phase 3 calibration done N OT E If the display stays at ‘C1’ check the cabling. MADI.MONI Manual - Version 1.1 page 33 of 40... - Page 34 CHAPTER 4: Operation This page is left blank intentionally. page 34 of 40 MADI.MONI Manual - Version 1.1...
-
Page 35: Troubleshooting
Maintenance To clean the device, use a soft, dry cloth. To protect the surface, avoid using cleaning agents. The device should be switched off during the cleaning process. MADI.MONI Manual - Version 1.1 page 35 of 40... -
Page 36: Chapter 6: Technical Data
• 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12.5 %) MADI Format (I/O) • 48k Frame, 96k Frame • 56 channel, 64 channel • 1 x USB 2.0 socket (Type B) • for charging and firmware updates page 36 of 40 MADI.MONI Manual - Version 1.1... -
Page 37: Index
Menu settings ........24 Volume control ........23 Environmental Conditions ......14 Feature Summary ........6 Firmware ..........15 First Aid ............. 9 Frame Format .......... 29 Intended Operation ........10 MADI.MONI Manual - Version 1.1 page 37 of 40... - Page 38 NOTE page 38 of 40 MADI.MONI Manual - Version 1.1...
- Page 39 NOTE MADI.MONI Manual - Version 1.1 page 39 of 40...
- Page 40 DirectOut GmbH Leipziger Strasse 32 T: +49-3727-5665-100 09648 Mittweida F: +49-3727-5665-101 Germany www.directout.eu...
