Summary of Contents for Genexis GMC-TK01-P2110

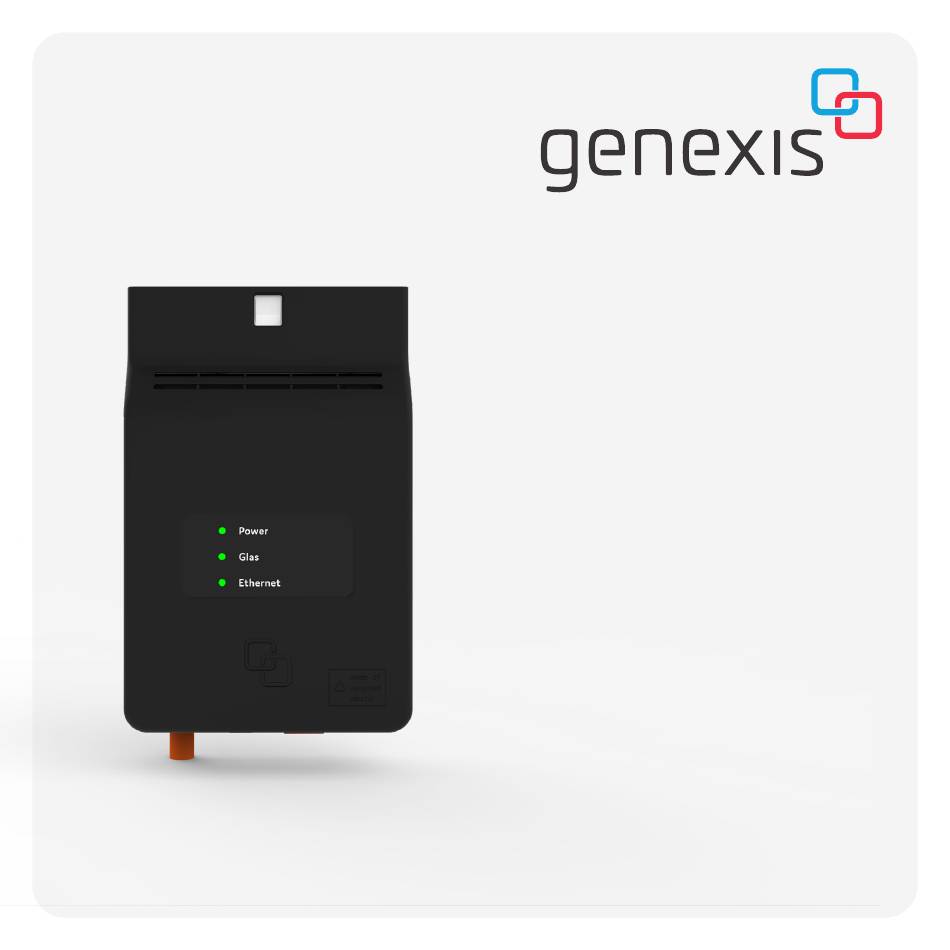

  • Page 1 GMC-TK01- P2110 Installation Guide...
  • Page 2 LED & port overview Power Green – system ok – power off Glas Green – WAN link ok Green (blinking) – WAN port connected, traffic ongoing – no WAN link Ethernet Green – link up with 1G speed Yellow – link is up with 10/100M speed Green/yellow (blinking) –...

  • Page 3: Installation Guide

    Install patch cover Check if the following items are in the giftbox The fiber patch cover houses a green fiber The fiber connector on the FTU is protected • GMC-TK01-P2110 connector. by the blue shutter (shown below). • Power adapter 1.
  • Page 4 FTU illustrations below) on the GMC and FTU line The device will power on immediately. clicks fully into place in the slot of the GMC. The GMC-TK01-P2110 is now correctly installed.
  • Page 5 Safety and Care Operating Conditions Care • Do not operate the device in temperatures below 0° C or above 40° C. • Always unplug your GMC from the power supply before cleaning! • If needed, the GMC can be cleaned by wiping it over using a soft, dry cloth. Avoid any abrasive Safe Operation material that might scratch or damage the surface.
  • Page 6 Revision 1.0 - December 2019 Copyright © 2019 Genexis B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
