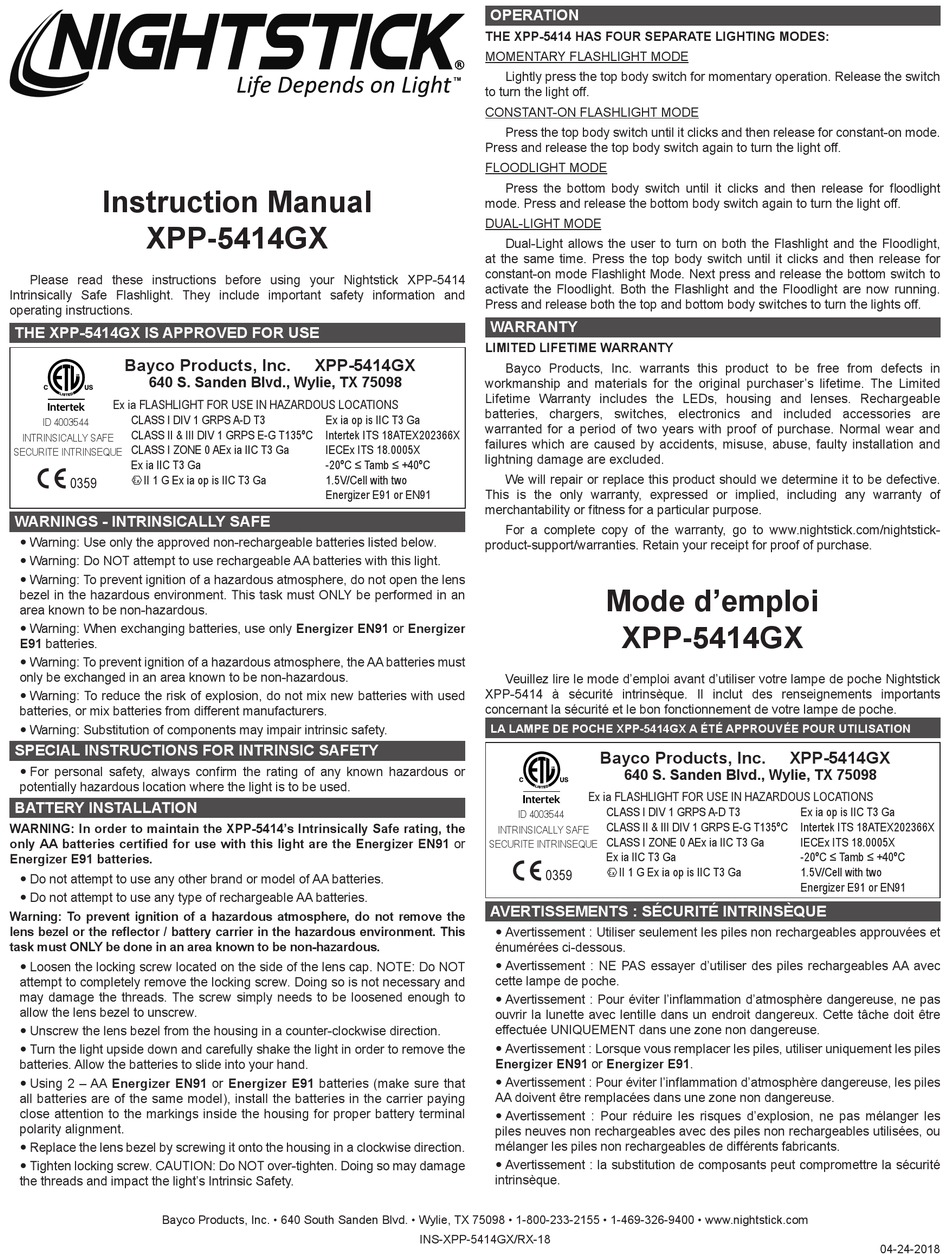

NightStick XPP-5414GX Instruction Manual

Instruction Manual
XPP-5414GX
Please read these instructions before using your Nightstick XPP-5414
Intrinsically Safe Flashlight. They include important safety information and
operating instructions.
THE XPP-5414GX IS APPROVED FOR USE
Bayco Products, Inc.
640 S. Sanden Blvd., Wylie, TX 75098
Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS
CLASS I DIV 1 GRPS A-D T3
ID 4003544
CLASS II & III DIV 1 GRPS E-G T135ºC
INTRINSICALLY SAFE
CLASS I ZONE 0 AEx ia IIC T3 Ga
SECURITE INTRINSEQUE
Ex ia IIC T3 Ga
II 1 G Ex ia op is IIC T3 Ga
0359
WARNINGS - INTRINSICALLY SAFE
y Warning: Use only the approved non-rechargeable batteries listed below.
y Warning: Do NOT attempt to use rechargeable AA batteries with this light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open the lens
bezel in the hazardous environment. This task must ONLY be performed in an
area known to be non-hazardous.
y Warning: When exchanging batteries, use only Energizer EN91 or Energizer
E91 batteries.
y Warning: To prevent ignition of a hazardous atmosphere, the AA batteries must
only be exchanged in an area known to be non-hazardous.
y Warning: To reduce the risk of explosion, do not mix new batteries with used
batteries, or mix batteries from different manufacturers.
y Warning: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
y For personal safety, always confirm the rating of any known hazardous or
potentially hazardous location where the light is to be used.
BATTERY INSTALLATION
WARNING: In order to maintain the XPP-5414's Intrinsically Safe rating, the
only AA batteries certified for use with this light are the Energizer EN91 or
Energizer E91 batteries.
y Do not attempt to use any other brand or model of AA batteries.
y Do not attempt to use any type of rechargeable AA batteries.
Warning: To prevent ignition of a hazardous atmosphere, do not remove the
lens bezel or the reflector / battery carrier in the hazardous environment. This
task must ONLY be done in an area known to be non-hazardous.
y Loosen the locking screw located on the side of the lens cap. NOTE: Do NOT
attempt to completely remove the locking screw. Doing so is not necessary and
may damage the threads. The screw simply needs to be loosened enough to
allow the lens bezel to unscrew.
y Unscrew the lens bezel from the housing in a counter-clockwise direction.
y Turn the light upside down and carefully shake the light in order to remove the
batteries. Allow the batteries to slide into your hand.
y Using 2 – AA Energizer EN91 or Energizer E91 batteries (make sure that
all batteries are of the same model), install the batteries in the carrier paying
close attention to the markings inside the housing for proper battery terminal
polarity alignment.
y Replace the lens bezel by screwing it onto the housing in a clockwise direction.
y Tighten locking screw. CAUTION: Do NOT over-tighten. Doing so may damage
the threads and impact the light's Intrinsic Safety.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
OPERATION
THE XPP-5414 HAS FOUR SEPARATE LIGHTING MODES:
MOMENTARY FLASHLIGHT MODE
to turn the light off.
CONSTANT-ON FLASHLIGHT MODE
Press and release the top body switch again to turn the light off.
FLOODLIGHT MODE
mode. Press and release the bottom body switch again to turn the light off.
DUAL-LIGHT MODE
at the same time. Press the top body switch until it clicks and then release for
constant-on mode Flashlight Mode. Next press and release the bottom switch to
activate the Floodlight. Both the Flashlight and the Floodlight are now running.
Press and release both the top and bottom body switches to turn the lights off.
WARRANTY
LIMITED LIFETIME WARRANTY
XPP-5414GX
workmanship and materials for the original purchaser's lifetime. The Limited
Lifetime Warranty includes the LEDs, housing and lenses. Rechargeable
batteries, chargers, switches, electronics and included accessories are
Ex ia op is IIC T3 Ga
warranted for a period of two years with proof of purchase. Normal wear and
Intertek ITS 18ATEX202366X
failures which are caused by accidents, misuse, abuse, faulty installation and
IECEx ITS 18.0005X
lightning damage are excluded.
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell with two
This is the only warranty, expressed or implied, including any warranty of
Energizer E91 or EN91
merchantability or fitness for a particular purpose.
product-support/warranties. Retain your receipt for proof of purchase.
XPP-5414 à sécurité intrinsèque. Il inclut des renseignements importants
concernant la sécurité et le bon fonctionnement de votre lampe de poche.
LA LAMPE DE POCHE XPP-5414GX A ÉTÉ APPROUVÉE POUR UTILISATION
SECURITE INTRINSEQUE
AVERTISSEMENTS : SÉCURITÉ INTRINSÈQUE
INS-XPP-5414GX/RX-18
Lightly press the top body switch for momentary operation. Release the switch
Press the top body switch until it clicks and then release for constant-on mode.
Press the bottom body switch until it clicks and then release for floodlight
Dual-Light allows the user to turn on both the Flashlight and the Floodlight,
Bayco Products, Inc. warrants this product to be free from defects in
We will repair or replace this product should we determine it to be defective.
For a complete copy of the warranty, go to www.nightstick.com/nightstick-
Mode d'emploi
XPP-5414GX
Veuillez lire le mode d'emploi avant d'utiliser votre lampe de poche Nightstick
Bayco Products, Inc.
640 S. Sanden Blvd., Wylie, TX 75098
Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS
CLASS I DIV 1 GRPS A-D T3
ID 4003544
CLASS II & III DIV 1 GRPS E-G T135ºC
INTRINSICALLY SAFE
CLASS I ZONE 0 AEx ia IIC T3 Ga
Ex ia IIC T3 Ga
II 1 G Ex ia op is IIC T3 Ga
0359
y Avertissement : Utiliser seulement les piles non rechargeables approuvées et
énumérées ci-dessous.
y Avertissement : NE PAS essayer d'utiliser des piles rechargeables AA avec
cette lampe de poche.
y Avertissement : Pour éviter l'inflammation d'atmosphère dangereuse, ne pas
ouvrir la lunette avec lentille dans un endroit dangereux. Cette tâche doit être
effectuée UNIQUEMENT dans une zone non dangereuse.
y Avertissement : Lorsque vous remplacer les piles, utiliser uniquement les piles
Energizer EN91 or Energizer E91.
y Avertissement : Pour éviter l'inflammation d'atmosphère dangereuse, les piles
AA doivent être remplacées dans une zone non dangereuse.
y Avertissement : Pour réduire les risques d'explosion, ne pas mélanger les
piles neuves non rechargeables avec des piles non rechargeables utilisées, ou
mélanger les piles non rechargeables de différents fabricants.
y Avertissement : la substitution de composants peut compromettre la sécurité
intrinsèque.
XPP-5414GX
Ex ia op is IIC T3 Ga
Intertek ITS 18ATEX202366X
IECEx ITS 18.0005X
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell with two
Energizer E91 or EN91
04-24-2018
