SERVICE MANUAL
System
Laser: Semiconductor laser
Signal format system: NTSC/PAL
Audio characteristics
Frequency response: DVD VIDEO (PCM
96 kHz): 2 Hz to 44 kHz (±1.0 dB)/DVD
VIDEO (PCM 48 kHz): 2 Hz to 22 kHz
(±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB)
Signal-to-noise ratio (S/N ratio): 115 dB
(LINE OUT L/R (AUDIO) jacks only)
Harmonic distortion: 0.003 %
Dynamic range: DVD VIDEO: 103 dB/CD:
99 dB
Wow and flutter: Less than detected value
(±0.001% W PEAK)
The signals from LINE OUT L/R (AUDIO)
jacks are measured. When you play PCM
sound tracks with a 96 kHz sampling
frequency, the output signals from the
DIGITAL OUT (OPTICAL) jack are
converted to 48 kHz sampling frequency.

SPECIFICATIONS

Outputs
(Jack name: Jack type/Output level/Load
impedance)
LINE OUT (AUDIO): Phono jack/2 Vrms/
Over 10 kilohms
DIGITAL OUT (OPTICAL): Optical
output jack/–18 dBm (wave length
660 nm)
COMPONENT VIDEO OUT (Y, C
, C
B
Phono jack/Y: 1.0 Vp-p/C
, C
:
B
R
0.7 Vp-p/75 ohms
LINE OUT (VIDEO): Phono jack/1.0 Vp-p/
75 ohms
S VIDEO OUT: 4-pin mini DIN/
Y: 1.0 Vp-p/C: 0.3 Vp-p (PAL),
0.286 Vp-p (NTSC)/75 ohms
XD-P15
RM-Z400A/RM-Z400E
Hong Kong Model
Singapore Model
General
Power requirements:
110 –240 V AC, 50/60 Hz
Power consumption: 10 W
Dimensions (approx.):
215× 55×3 00 mm (width/height/depth)
incl. projecting parts
Mass (approx.): 2.0 kg
):
Operating temperature: 5ºC to 35ºC
R
Operating humidity: 25% to 80%
Supplied accessories
See page 8-9 .
Specifications and design are subject to
change without notice.

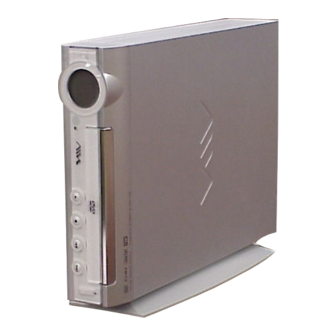

CD/DVD PLAYER
AEP Model
UK Model
E Model
