Page 1: User Manual
COLOR VIDEO DOOR PHONE USER MANUAL Thank you for purchasing our products. The company is not responsible for any safety accidents caused by abnormal operation of the product. Please carefully read this User's Guide(in particular, precautions for safety) before using this product . -
Page 2: Table Of Contents
Index Warning and Caution The function and name of each part Features and main function Package contents System layout Wiring diagram Installation method Cable specification Incoming call answer Monitor doorbells or CCTV cameras Broadcast function Internal call among monitors Talking volume adjust Brightness/color/contrast/display model adjust Don't disturb function Monitor listening... -
Page 3: Warning And Caution
Warning and caution Make sure to follow the instructions to prevent any danger or property losses. It indicates prohibition. It indicates disassembly. Warning Death or serious injury is expected. It indicates prohibition of contact. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket. - Page 4 It indicates prohibition. Caution It indicates disassembly. A injury or property losses are expected. It indicates prohibition of contact. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket. CAUTION The socket holes are lager than usual.
-
Page 5: The Function And Name Of Each Part

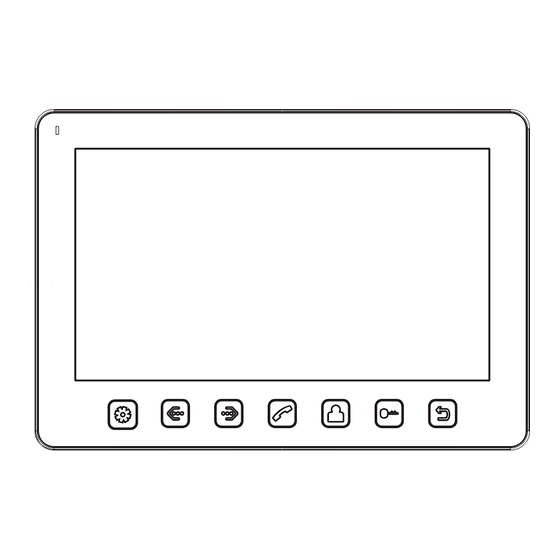

The function and name of each part Function description Item Speaker Menu button Enter system settings Adjust - Left button Right button Adjust + Answer button Answer/Call Monitor button Monitor Unlock button Unlock Back button Back/hang up Indicator light Power indicator light Microphone Page 3... -
Page 6: Features And Main Function
Features and main function MODEL LIST 1.Features 7" color digital LCD, high definition Hands free design, perfect intercom with clear voice comfortable touch button The optional multi-language, friendly interface 12 polyphonic ring-tones switch freely Simple operation 2.Main function Unlock Broadcast function Monitor listening Call transfer “Don't disturb”... -
Page 7: System Layout
System layout 1.The port 2 connect doorbell panel The system can maximum support 1 main monitor, 3 sub monitors, 2 door panels and 8 CCTV cameras. MAIN MONITOR SUB MONITOR SUB MONITOR SUB MONITOR DOORBELL1 CCTV1 CCTV1 CCTV1 CCTV1 DOORBELL2 CCTV2 CCTV2 CCTV2... -
Page 8: Wiring Diagram
Wiring diagram Solution1 A D - 1 + 1 5 V G N D G N D DATA V D - 1 G N D A D 2 G N D ROOM1 PWR2 V D 2 Doorbell 2 electronic lock 2 CCTV1 A D 1 CCVT1... - Page 9 Wiring diagram Solution2 A D - 1 + 1 5 V G N D G N D DATA V D - 1 A D 2 G N D ROOM1 CCVT3 PWR2 V D 2 CCTV1 A D 1 CCVT1 G N D G N D G N D CCTV2...
-
Page 10: Installation Method
Installation method SINGLE MONITOR INSTALLATION 1.Refer to relevant wiring diagram for the system you have chosen and ensure you have the correct cable. 2.Determine the monitor installation position: -suggest to install at 1.5~1.6Meters; -suggest distance between indoor monitor and doorbell is at least 350 mm; 3.Ensure no power supply connection before installation finished 4.Take off the bracket from the back of the monitor. -
Page 11: Cable Specification
Cable Specification Cable specification Our system has 1 solution to unlock the door: Unlock signal from doorbell. (The cable shield wire needs to be grounded) When signal from the doorbell,cable specification is: Distance between monitor and door station is less than 30 meters, RVV 4*0.3MM cable is available;... -
Page 12: Incoming Call Answer
Incoming call answer When a visitor presses doorbell, all the indoor monitors in this house will chime simultaneously, the LCD will show “INCOMING CALL”. Press talk with the visitor. The monitor will return to standby state if no one answers after chime time ends. -
Page 13: Internal Call Among Monitors
Internal call among monitors If you make intercom request to all monitors At standby status, press button to call other monitor, If you have more than 2 monitors connected together in the system, please press to select target monitor, press button to confirm calling. -
Page 14: Monitor Listening
choosing on screen, press to choose the target indoor intercom and press to confirm. Note: a: When monitoring, the user can hear the sound from the being monitored room,but the people at the be-monitored intercom room can not hear the voice from monitoring intercom room. -
Page 15: System Setting
System setting In standby status ,short- press button to enter system setting menu. Setting items Options Notes LANGUAGE Default English(Russian optional) CHIME TIME Default 30seconds, (10 - 60 seconds adjustable) CHIME VOLUME Default 07, 01 - 10 adjustable. Door1 ring type 01 by default, 00-11 optionals RING TYPE Door2 ring type... -
Page 16: System Main Menu
Specification Items Content Power source DC15V Power consumption 7W(Max), 1W(In standby) Operation temperature 0 to +50 Operation humidity 0 - 95 Display panel 7 inch Intercom function Hands-free Connection 4 wires Dimension 185mm*127.5mm*18mm Weight 360g Page 14... - Page 17 Page 30...
- Page 18 The parameters of product are subject to changes without prior notice.
