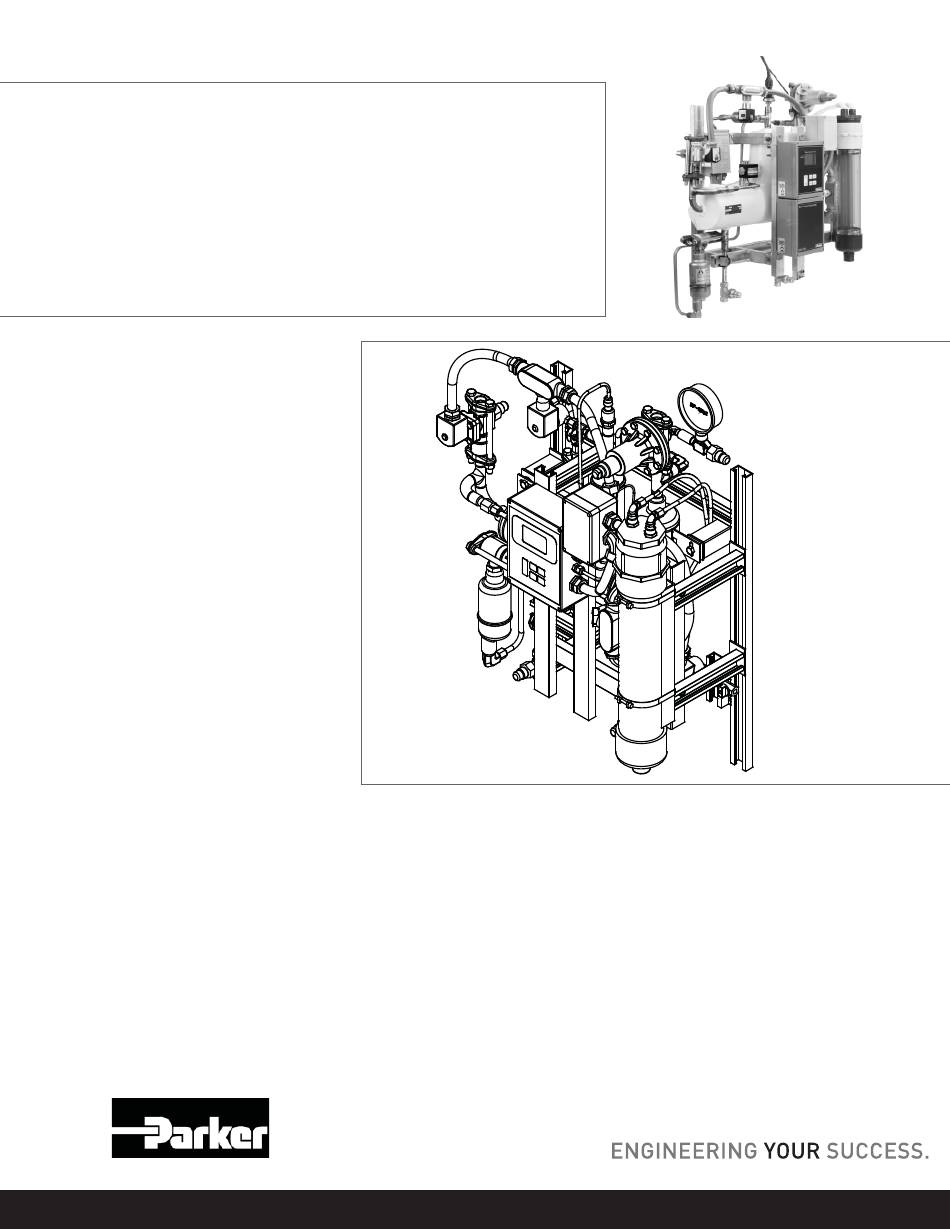

Auto Purger Model V200
Product Bulletin 75-00 J
Pressure Rating: 21 bar (305 psig)
Purpose:

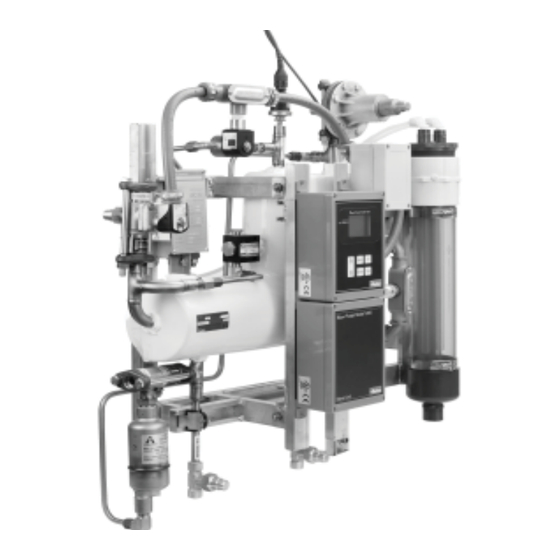

The Model V200 Auto Purger is
a unique energy-saving device
designed to effi ciently remove
foreign non-condensable gases from
ammonia refrigeration systems.
Contact Information:
Parker Hannifi n Corporation
Refrigerating Specialties Division
2445 South 25th. Avenue
Broadview, IL 60155-3891
phone (708) 681-6300
fax (708) 681-6306
www.parker.com
Product Features:
•
Smaller compact design with
equivalent capacity of our current
model
•
Light weight 29.5 kg (65 lbs)
•
Proprietary microprocessor control
for all sensing and control functions
•
Factory calibrated and wired
•
Auto or manual cycling capabilities
•
Up to 20 "Purge Points"
•
Automatically adjusts vent pressures
•
Energy saving sleep mode that
will activate with lack of non-
condensables
•
Electronic level, temperature, and
pressure monitoring for improved
performance
•
Records number of purger cycles
and times for each purge point
during a 7 day period
•
Purger is made of corrosion
resistant material
Advertisement
Related Manuals for Parker V200
Summary of Contents for Parker V200
- Page 1 Auto Purger Model V200 Product Bulletin 75-00 J Pressure Rating: 21 bar (305 psig) Purpose: The Model V200 Auto Purger is a unique energy-saving device designed to effi ciently remove foreign non-condensable gases from ammonia refrigeration systems. Contact Information: Product Features: •...
- Page 2 Th is leads to ensure no liquid refrigerant is drawn lower condensing pressure, runtime Foul by the purger. Th e Auto Purger V200 of the compressors, and operating has a liquid drainer at the foul gas costs.
- Page 3 Controller Water Drain line Drain V200 Auto Purger Fill and Cool Down A built in feature of the Auto Purger refrigerant from the foul gas. is sleep mode. Sleep mode allows the Using the suction line; the liquid system to bypass purge points after...
- Page 4 Condensed refrigerant and non- condensable gases rise through the Any oil that may collect in the V200 heat exchanger and into the vapor purger can be drained off from the vent. As the liquid rises it lifts an two oil drains.
- Page 5 Controller Water Drain line Drain V200 Auto Purger Release of Non-Condensable Gases 3. Release of Non-Condensable Gases bubbler rises it will overfl ow the As the refrigerant level drops in drain tube and exit the drain line. the vapor vent the fl oat will fall...
- Page 6 Page 6 / Bulletin 75-00 J Installation initial start-up screen is displayed. Th e water All purgers are packed for a maximum protection. Un- solenoid will energize and water should be seen pack carefully. Check the carton to make sure all items fi lling the tank.
- Page 7 Bulletin 75-00 J / Page 7 return to the main menu. press the “Enter” key to return to the main menu. Control Features Setup 2. When in the main operating screen press and release the Th is includes date, time, purge type (automatic, manual, “Menu”...
- Page 8 Page 8 / Bulletin 75-00 J If you need to stop all Purging in the “Auto” mode, select POINT VENTS TIME the Terminate Purge Cycle by using the up/down arrow 00:00 keys. Press “Enter” and release to make your selection. In LIQUID SOL 00:00 VENT / WATER SOL...
- Page 9 Bulletin 75-00 J / Page 9 V200 Auto Purger Compact Design Dimensions V200 Auto Purger Electrical Wiring Diagram for a 4 Point Purger...
- Page 10 Plug Pkg, Pipe 1/8” Purger Orifi ce 0.040 208667 1/2” CK-4A-2, Check Valve 101047 Plug Pkg, Pipe 1/8” Purger Orifi ce 0.026 208665 Water Bubbler, Clear PVC V200 Top Inlet 208789 Conversion Kit, Steel Tube to Nylon 208669 Conversion Kit, Steel Tube Cabinet Style to Nylon 208670 Liquid Drainer (1/2”...
- Page 11 Page 12 / Bulletin 75-00 J V200 Auto Purger Electrical Wiring Diagram for the Slave Unit (16 Additional Purge Points) Note: Common shown on the purge point solenoids connections are common to the relay. Incoming line power (120/240 volts) should be supplied to these terminals. An incoming natural should be supplied to one of each of the coil leads.
- Page 12 Check for loose wires connecting the pressure transducer to the main controller board. Faulty pressure transducer. Replace pressure transducer if necessary. Note: all items with a (#) can be located in the V200 auto purger parts diagram. V200 Service Pointers...
- Page 13 Damaged main controller board. Replace controller if necessary. Note: all items with a (#) can be located in the V200 auto purger parts diagram. V200 Service Pointers Continued...
- Page 14 - one line form the bubbler cap goes to the fi tting / orifi ce assembly and the other goes to the water valve Use a standard steel tubing cutter to cut plastic line. V200 Auto Purger - Bubbler Replacement Instructions...
- Page 15 Refrigerating Specialties the liquid has been removed. Division. Defective products, or parts thereof returned to the © 2008 Parker Hannifi n Corporation 309643 ECN: 8999 03/17/2009...
