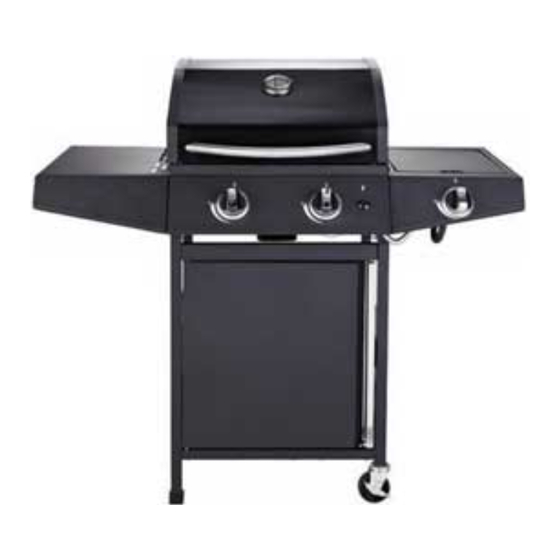

Montana 2 Burner Gas BBQ
Dimensions
Width - 110cm
Depth - 55.5cm
Height - 107.5cm
Important -
Please read this instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08450 778888
Please keep for future reference
129638
Issue 1 - 28/10/13
Advertisement
Related Manuals for Montana KS12107
Summary of Contents for Montana KS12107
- Page 1 Montana 2 Burner Gas BBQ Assembly Instructions - 129638 Please keep for future reference Dimensions Width - 110cm Depth - 55.5cm Height - 107.5cm Important - Please read this instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08450 778888...
- Page 2 Safety and Care Advice Important - Please read this instructions fully before starting assembly Assembly time: approx. 40 mins. • Retain these instructions for future reference. • For outdoors use only – do not use indoors. Do not use below ground level and confined spaces. •...
- Page 3 Safety and Care Advice or tension. The hose should hang freely with no bends, folds, or kinks that could obstruct free flow of gas. Apart from the connection point, no part of the hose should touch any hot barbecue parts. Always inspect the hose for cuts, cracks, or excessive wear before use.
- Page 4 Safety and Care Advice Manual Ignition Instruction for Main Burner Insert lit match through the match-lighting hole at the side or bottom of the barbecue body. • Push in and turn the rightmost control knob anti-clockwise to the Max position, the rightmost burner •...
- Page 5 Safety and Care Advice Care and Maintenance Regularly clean your barbecue between uses and especially after extended periods of storage. Ensure the barbecue and its components are sufficiently cool before cleaning. Do not leave the barbecue ex- posed to outside weather conditions or stored in damp, moist areas. Never douse the barbecue with water when its surfaces are hot.
- Page 6 Safety and Care Advice Fixings All screws and bolts, etc. should be checked and tightened on a regular basis. Storage Store your barbecue in a cool dry place. It must be inspected on a regular basis as damp or condensa- tion can form which may result in damage to the barbecue.
- Page 7 If you have damaged or missing components, Components - Parts call the Customer Helpline: 08450 778888 Please check you have all the panels listed below Warming rack x1 Grill Assembly x1 Cooking grill x2 Heat tent x2 Grease cup x1 Side burner grate x1 Side burner x1 Side burner electrode wire x1...
- Page 8 Components - Parts Please check you have all the panels listed below Side burner panel x1 Cart - Left side panel Cart - Right side panel assembly x1 assembly x1 Door Transom x1 Cart support bracket x2 Front door x1 Bottom shelf assembly x1 Locking caster x2...
- Page 9 Components - Fittings Please check you have all the panels listed below Note The quantities below are the correct amount to complete the assembly. : : : : 35mm Bolt x 8 12mm Bolt x16 10mm Bolt x6 Tool required Philips screwdriver Small hammer Wrench...
-
Page 10: Assembly Instructions
Assembly Instructions Step 1 Put the cart left side panel assembly on the bottom shelf assembly using 35mm bolts Check the orientation of the panel assembly and fix the bolts tightly by the screw- driver. FRONT Step 2 Put the cart right side panel assembly on the bottom shelf assembly... - Page 11 Assembly Instructions Step 3 Fix the cart support bracket to the left rear leg of the cart left side panel assembly and the bottom shelf assembly using 12mm bolts Then fix the cart support bracket to the right rear FRONT leg of the cart right side panel assembly and the...
- Page 12 Assembly Instructions Step 5 Fix the door transom the left front leg of the cart left side panel assembly the right front leg of the cart right side panel assembly using 12mm bolts FRONT FRONT Step 6 Place the door post of the front door on the bottom shelf assembly...
- Page 13 Assembly Instructions Step 7 Fix the grill assembly the cart left side panel assem- and the cart right side panel assembly using 35mm bolts FRONT Step 8 Screw 4pcs of 12mm bolts onto the left side of the grill assembly Have half of the bolt threads go into the bolt holes.
- Page 14 Assembly Instructions Step 9 Screw 4pcs of 12mm bolts onto the right side of the grill assembly Have half of the bolt threads go into the bolt holes. Do not tighten at this stage. Align the 12mm bolts properly with the side burner assembly Fix the bolts tightly by the screwdriver after the align-...
- Page 15 Assembly Instructions Step 11 Fix the 10mm bolt the side burner panel Note: Do not tighten the bolts. Hang the side burner panel on the side burner assembly Slide the 10mm bolt left- wards until the panel is fixed on the side burner assembly Fix the side burner panel on the main control panel of...
- Page 16 Assembly Instructions Step 12 Fix the valve on the side burner panel using those two screws loosen on proce- dure a. Align the side burner ven- turi against the valve. Important: Make sure the valve tip goes into the burner venturi completely with good alignment.
- Page 17 Assembly Instructions Step 13 Put the side burner knob on the side burner panel Step 14 Put the side burner grate on the side burner assembly and align with the holes.
- Page 18 Assembly Instructions Step 15 Put the heat tent cook- ing grill and warming rack on the grill assembly Step 16 Put the grease cup at the bottom of the grill assembly...
- Page 19 Assembly Instructions Step 17 Assembly is complete. Customer Helpline: 08450 778888 If you need help or have damaged or missing parts, call the...
- Page 20 Technical Specification Model Number KS12107 I3P (37) Gas Category Propane Type of Gas Gas Pressure 37 mbar 359/BU/1015 Pin Number 0.89mm Injector Size (Main Burner) Injector Size (Side Burner) 0.89mm 9.6 kW Total Heat Input 6.4 kW 2 Burner Heat Input Side Burner Heat Input 3.2 kW...
-
Page 21: Troubleshooting
Troubleshooting Problem Possible Cause Solution Burner will not light LP gas cylinder is empty Replace with full cylinder using the ignition sys- Faulty regulator Have regulator checked or replace Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire...
