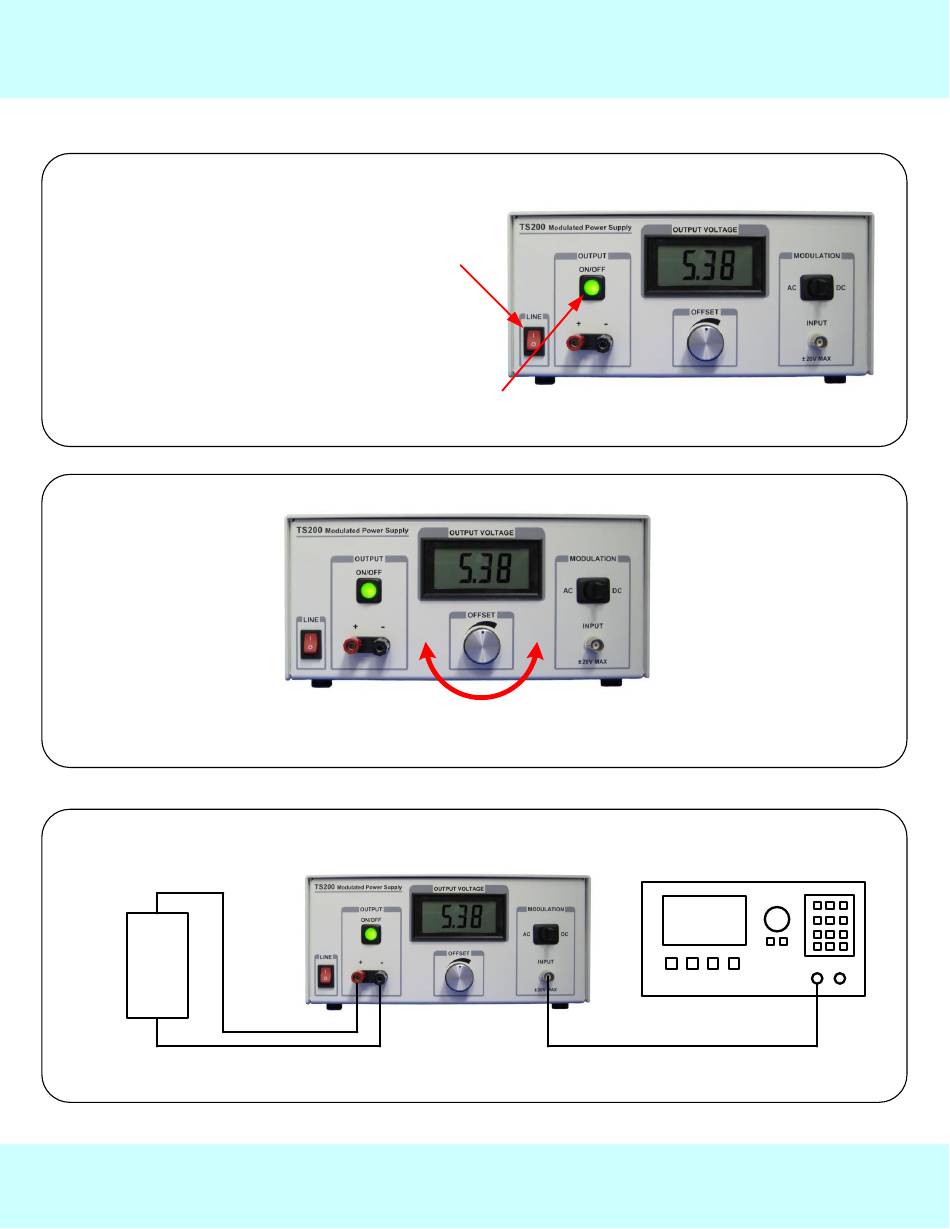

Quick Start Guide
Amplifying Current or Voltage
Step 1-A: Plug in the AC power cord (not shown)
Step 1-B: Turn on the TS200 by press the
LINE button
Step 1-C: Enable the output by press the
ON/OFF button
Step 2: Turn the OFFSET knob to set the DC voltage (e.g. 0V)
Current or Voltage Amplifier Connection Diagram
Function Generator
100kHz
SINE
Load
or
DUT
Sinewave
Accel Instruments
www.accelinstruments.com
