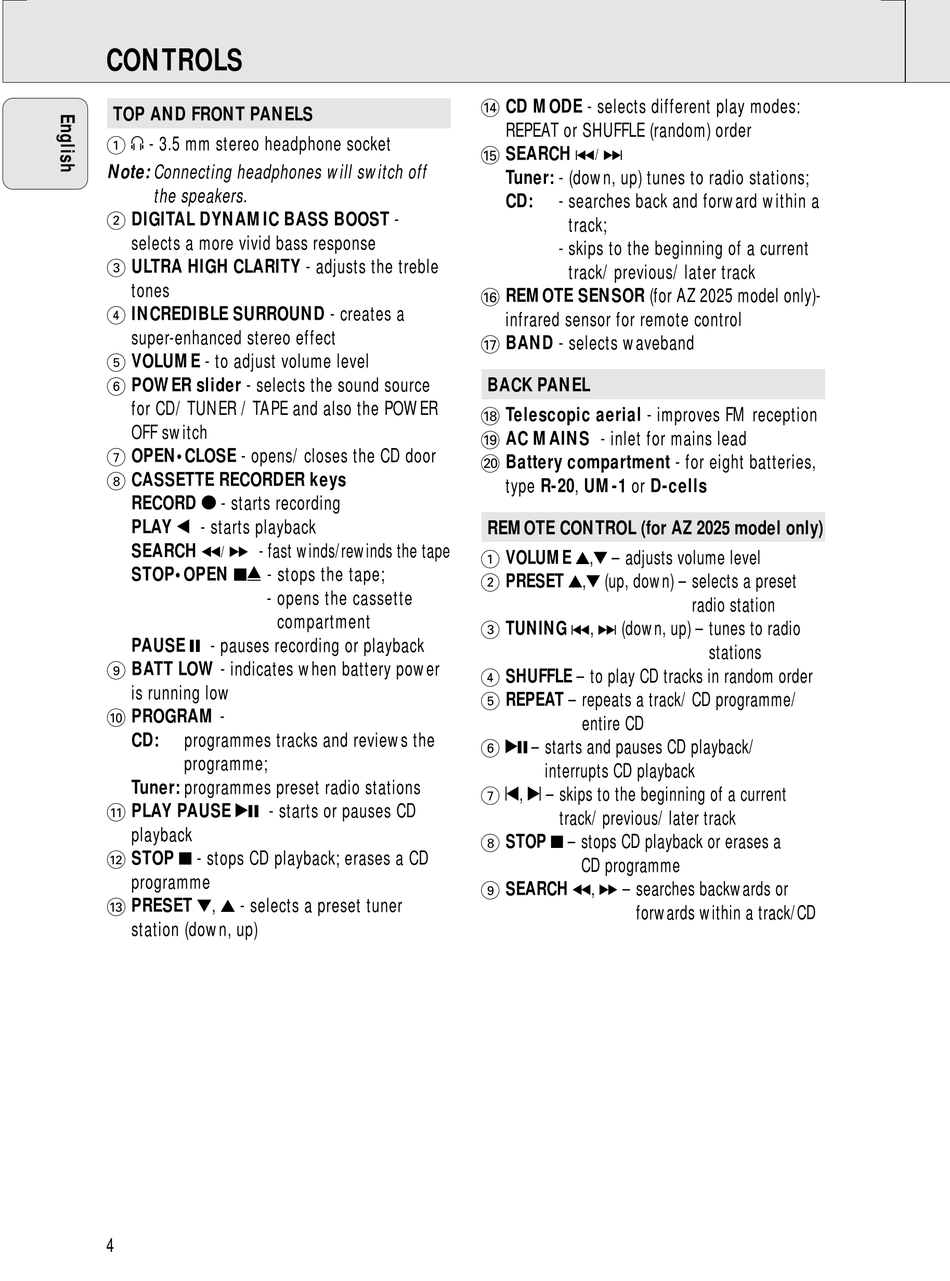

CONTROLS
TOP AND FRONT PANELS
1 p - 3.5 mm stereo headphone socket
Note: Connecting headphones will switch off
the speakers.
2 DIGITAL DYNAMIC BASS BOOST -
selects a more vivid bass response
3 ULTRA HIGH CLARITY - adjusts the treble
tones
4 INCREDIBLE SURROUND - creates a
super-enhanced stereo effect
5 VOLUME - to adjust volume level
6 POWER slider - selects the sound source
for CD/ TUNER / TAPE and also the POWER
OFF switch
7 OPEN•CLOSE - opens/ closes the CD door
8 CASSETTE RECORDER keys
RECORD 0 - starts recording
PLAY 1 - starts playback
SEARCH 5 6 - fast winds/rewinds the tape
/
STOP•OPEN 9/ - stops the tape;
PAUSE ; - pauses recording or playback
9 BATT LOW - indicates when battery power
is running low
0 PROGRAM -
CD: programmes tracks and reviews the
programme;
Tuner: programmes preset radio stations
! PLAY PAUSE 2; - starts or pauses CD
playback
@ STOP 9 - stops CD playback; erases a CD
programme
# PRESET 4, 3 - selects a preset tuner
station (down, up)
4
- opens the cassette
compartment
$ CD MODE - selects different play modes:
REPEAT or SHUFFLE (random) order
% SEARCH ∞ §
/
Tuner: - (down, up) tunes to radio stations;
CD: - searches back and forward within a
track;
- skips to the beginning of a current
track/ previous/ later track
^ REMOTE SENSOR (for AZ 2025 model only)-
infrared sensor for remote control
& BAND - selects waveband
BACK PANEL
* Telescopic aerial - improves FM reception
( AC MAINS - inlet for mains lead
) Battery compartment - for eight batteries,
type R-20, UM-1 or D-cells
REMOTE CONTROL (for AZ 2025 model only)
1 VOLUME 3,4 – adjusts volume level
2 PRESET 3,4 (up, down) – selects a preset
3 TUNING ∞, § (down, up) – tunes to radio
4 SHUFFLE – to play CD tracks in random order
5 REPEAT – repeats a track/ CD programme/
entire CD
6 2; – starts and pauses CD playback/
interrupts CD playback
7 ¡, ™ – skips to the beginning of a current
track/ previous/ later track
8 STOP 9 – stops CD playback or erases a
CD programme
9 SEARCH 5, 6 – searches backwards or
forwards within a track/CD
radio station
stations
