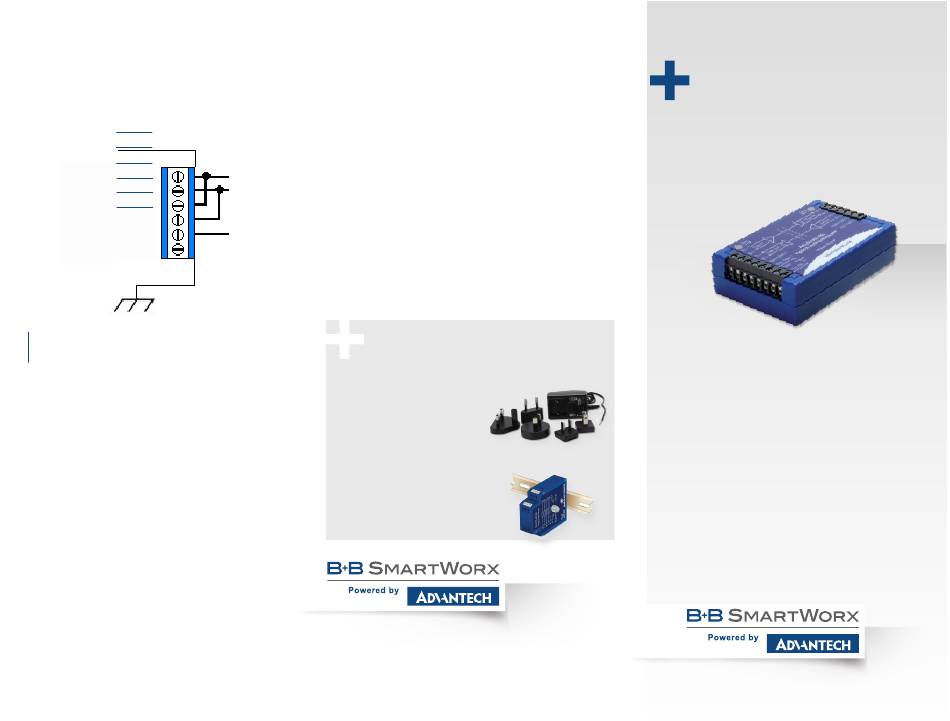

4. Loopback Test continued
Using HyperTerminal or a similar program, connect
to the appropriate COM port. Turn off Hyper Terminal
local echo. Set baud rate to 9600. Transmit data. If
you can see the data you are typing, the test is suc-
cessful.
DATA OUT A
DATA OUT B
DATA IN A
DATA IN B
SIGNAL GND
PROT. GND
5

Troubleshooting

Q. What type of cable do I need for
RS-422/485?
A. Category 5 cable is available as Shielded
Twisted Pair (STP) as well as Unshielded
Twisted Pair (UTP) and generally exceeds
the recommendations for RS-422 making it
an excellent choice for RS-422 and RS-485
systems.
Q. How do I wire Model BB-485OP for 2-wire?
A. Make sure to externally jump TDA to RDA and
TDB to RDB.
Q. Do I have to run a Signal Ground on Model
BB-485OP?
A. Yes, all B+B SmartWorx optically isolated
devices require a Signal Ground.
Documenatation Number: 710-10767-00_r2_485OP_2818qsg
Installation Information
Underwriters Laboratories Conditions of
Acceptability – When installed in the end-use
equipment, consideration should be given to the
following:
1. The wiring terminals are suitable for factory
wiring only.
2. This device is to be mounted in a suitable
enclosure in the end-product.
3. This device is suitable for operation at a
maximum surrounding air temperature as
described in the documentation.
4. These devices are intended for use in a pollution
degree 2 environment.
• Input Voltage: 10 – 14 VDC
• Input Power: 1.0 Watt
• Wire Range: 22 – 14 AWG
• Tightening Torque: 0.5 Nm
• Temperature rating of field installed conductors is
105 °C minimum, sized for 60 °C ampacity.
• Use copper wire only maximum surrounding
ambient air temperature 55 °C.
Recommended Accessories
Level VI Power Supply,
12 VDC, 500 mA,
stripped & tinned,
int'l blade kit
# BB-SMi6-12-V-ST
Dataline Surge
Suppressor
# BB-HESP4DR
1 (888) 948-2248 | Europe: +353 91 792444
advantech-bb.com
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: (815) 433-5100 | Fax: (815) 433-5109
www.advantech-bb.com | E-mail: support@advantech-bb.com

QUICK START

GUIDE
Model BB-485OP
RS-422/485 Optically Isolated Repeater
Before you begin, be
sure you have the following:
+ BB-485OP Repeater
+ 12 VDC Wall Power Supply
with Stripped & Tinned Leads
www.advantech-bb.com
Fast and easy on the web:
