Summary of Contents for Kartsana S-127

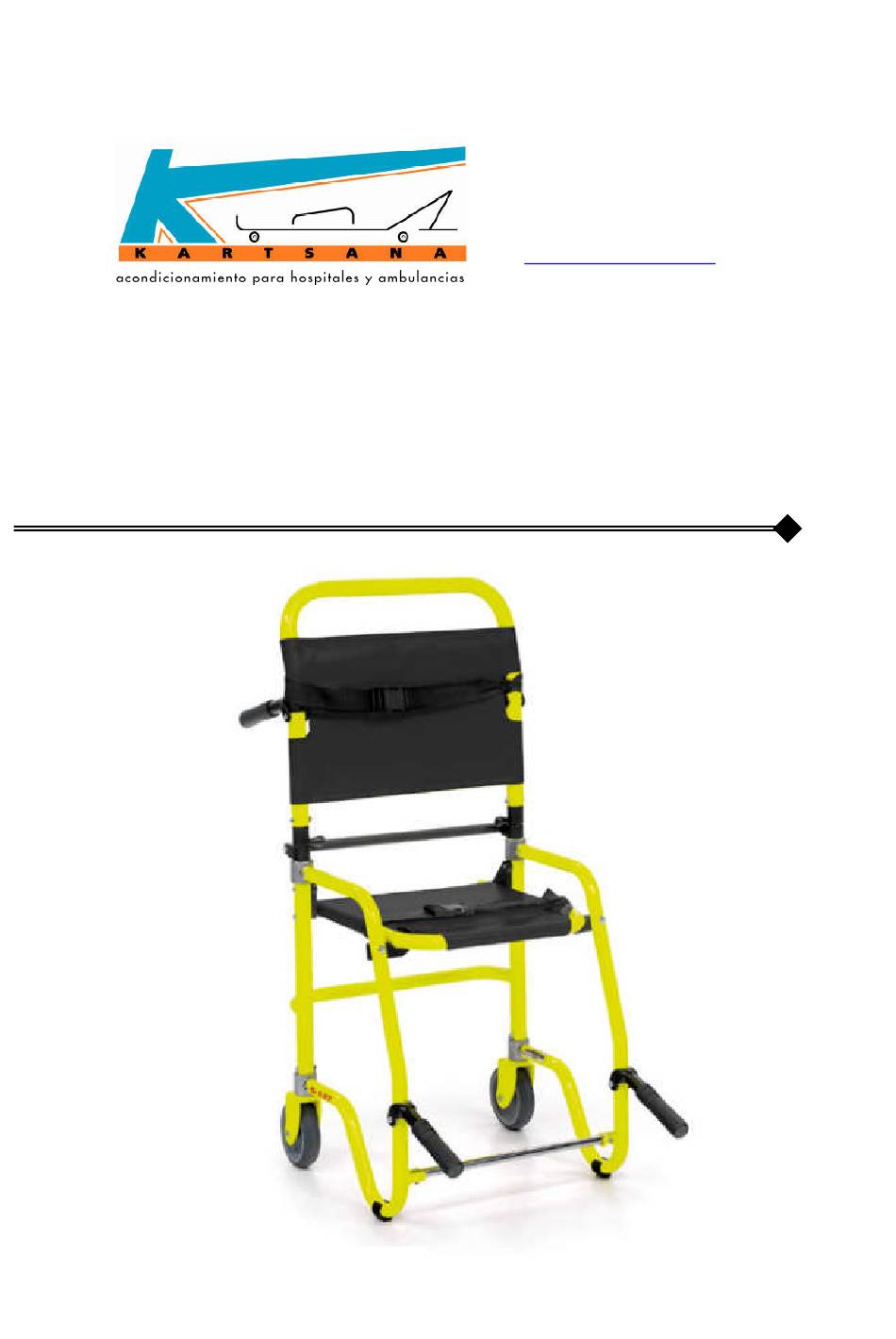

- Page 1 C. Narcís Monturiol, 34 08192 Sant Quirze del Vallès BARCELONA TEL. 93 714-49-24 ventas@kartsana.com www.kartsana.com INSTRUCTION MANUAL CHAIR S-127 Read these maintenance instructions before using the product and keep them for future reference.
-
Page 3: Table Of Contents
OPERATION AND HANDLING CHAIR S-127 CONTENTS 1.- INTRODUCTION 1.1.- F OREWORD 1.2.- R ESPONSIBILITY AND WARRANTY 1.3.- S PECIFICATIONS 1.4.- A TTENTION 1.5.- S UMMARY OF SAFETY PRECAUTIONS 2.- INSTRUCTION MANUAL 2.1.- T ECHNICAL CHARACTERISTICS 2.2.- F OLDING AND UNFOLDING OF THE CHAIR 2.3.- H... - Page 4 OPERATION AND HANDLING CHAIR S-127 Rev.3 08-02-18...
-
Page 5: Introduction
1.1.- Foreword The chair S-127 was especially developed for professional EMS and patient transport. The chair S-127 has been tested according to standards UNE-EN 1865 and UNE-EN 1789. All indications referring to operation, cleaning and disinfection are made according to our best knowledge and experience. -
Page 6: Attention
Some cleaning products are corrosive in nature and may cause damage to the product if used improperly. If the products described above are used to clean Kartsana equipment, measures must be taken to ensure the chair are wiped with clean water and thor- oughly dried following cleaning. - Page 7 - Kartsana recommends that, prior to installation, the certified mechanic plan the placement of the safety hook in the rear of the vehicle.
-
Page 8: Instruction Manual
OPERATION AND HANDLING CHAIR S-127 2.- INSTRUCTION MANUAL 2.1.- Technical characteristics Weight: 7.2 Kg. Measurements in mm: Max. Load: 150 Kg. Please be careful especially to mechanical anchorage points of the chair to secure safe function. FOLDED CHAIR UNFOLDED CHAIR Rev.3... -
Page 9: Folding And Unfolding Of The Chair
OPERATION AND HANDLING CHAIR S-127 2.2.- Folding and unfolding of the chair To fold out the chair, hold the upper bar of the backrest with one hand and with the other hand press down the bar with the seating. The chair is completely folded out when it hearably latches. -
Page 10: Handles
OPERATION AND HANDLING CHAIR S-127 To fold the chair, the black cross bar under the seating must be briefly pressed (preferably use your foot) to release the safety mechanism. Simultaneously hold with one hand the upper bar of the backrest and pull with the other hand the bar with the seating. -
Page 11: How To Fix The Safety Belts
Complete removing or raven amending the belt system bears high risks. Kartsana as- sumes no liability for damages resulting from using none or a different belt system during patient transport. -
Page 12: Exploded View
OPERATION AND HANDLING CHAIR S-127 5.- EXPLODED VIEW Rev.3 08-02-18... - Page 13 OPERATION AND HANDLING CHAIR S-127 Spare parts list S-127 N.º Referencia Descripción CANT. 01-0096-001 FUNDICION T TRAVESERO PATAS S.300 01-0102-001 FUNDICION BISAGRA HEMBRA S-117 01-0103-001 BISAGRA MACHO S-117 01-0104-001 SOPORTE FUNDICION ASIENTO DCH. 01-0105-001 SOPORTE FUNDICION ASIENTO IZQ 01-0185-001 FUNDICION PUÑO S.119 01-0186-001 FUNDICION PUÑOS S-127...
- Page 14 43 14-0054-002 ETIQUETA S-127 44 50-0120-001 SOPORTE RUEDA SOLDADA S.117-118-119 45 50-0121-001 PATA SOLDADA SILLA S-117 46 50-0129-001 Cjto. sold. pata izq. S-127 47 50-0130-001 Conj. sold. pata dch. S-127 48 50-0745-001 ASIENTO SOLDADO S-127 49 52-0018-001 CINTURON CORTO CINTURA S118-119 Rev.3...
- Page 15 OPERATION AND HANDLING CHAIR S-127 Rev.3 08-02-18...
- Page 16 OPERATION AND HANDLING CHAIR S-127 Sistema de gestión certificado Rev.3 08-02-18...
