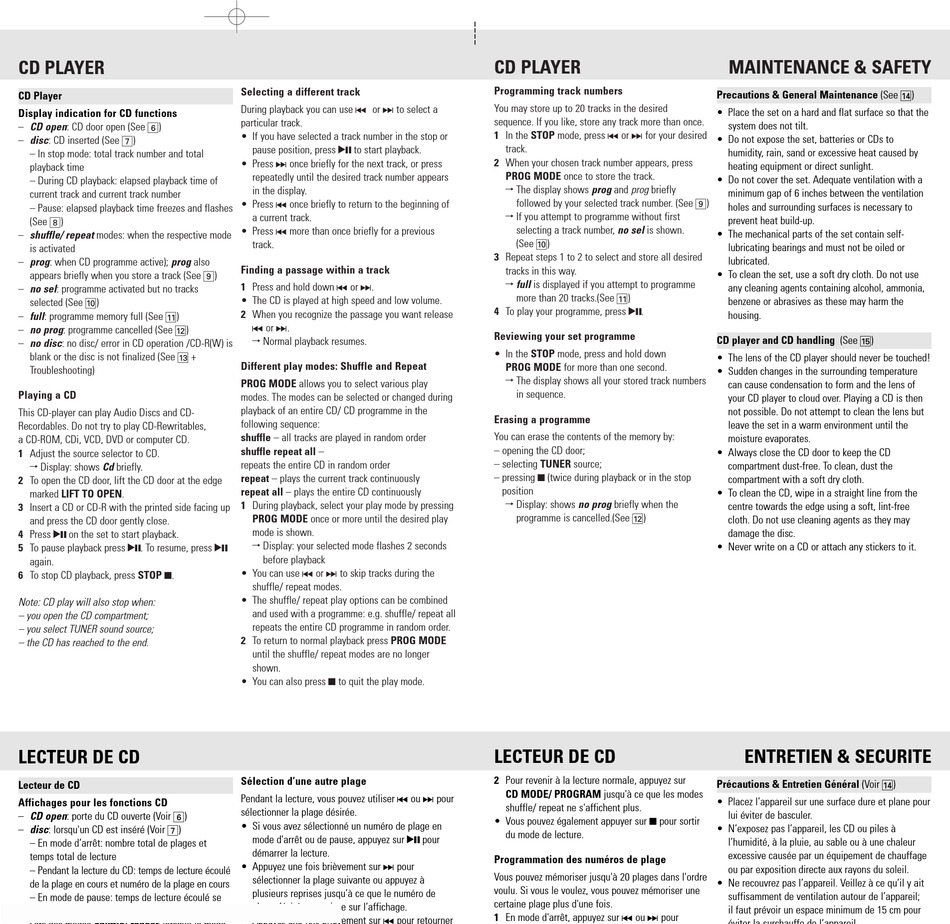

Philips AZ3014/05 User Manual page 8

CD PLAYER
CD Player
Display indication for CD functions
– CD open: CD door open (See 6)
– disc: CD inserted (See 7)
– In stop mode: total track number and total
playback time
– During CD playback: elapsed playback time of
current track and current track number
– Pause: elapsed playback time freezes and flashes
(See 8)
– shuffle/ repeat modes: when the respective mode
is activated
– prog: when CD programme active); prog also
appears briefly when you store a track (See 9)
– no sel: programme activated but no tracks
selected (See 0)
– full: programme memory full (See !)
– no prog: programme cancelled (See @)
– no disc: no disc/ error in CD operation /CD-R(W) is
blank or the disc is not finalized (See # +
Troubleshooting)
Playing a CD
This CD-player can play Audio Discs and CD-
Recordables. Do not try to play CD-Rewritables,
a CD-ROM, CDi, VCD, DVD or computer CD.
1 Adjust the source selector to CD.
™ Display: shows Cd briefly.
2 To open the CD door, lift the CD door at the edge
marked LIFT TO OPEN.
3 Insert a CD or CD-R with the printed side facing up
and press the CD door gently close.
4 Press 2; on the set to start playback.
5 To pause playback press 2;. To resume, press 2;
again.
6 To stop CD playback, press STOP 9.
Note: CD play will also stop when:
– you open the CD compartment;
– you select TUNER sound source;
– the CD has reached to the end.
Selecting a different track
During playback you can use ∞ or § to select a
particular track.
• If you have selected a track number in the stop or
pause position, press 2; to start playback.
• Press § once briefly for the next track, or press
repeatedly until the desired track number appears
in the display.
• Press ∞ once briefly to return to the beginning of
a current track.
• Press ∞ more than once briefly for a previous
track.
Finding a passage within a track
1 Press and hold down ∞ or §.
• The CD is played at high speed and low volume.
2 When you recognize the passage you want release
∞ or §.
™ Normal playback resumes.
Different play modes: Shuffle and Repeat
PROG MODE allows you to select various play
modes. The modes can be selected or changed during
playback of an entire CD/ CD programme in the
following sequence:
shuffle – all tracks are played in random order
shuffle repeat all –
repeats the entire CD in random order
repeat – plays the current track continuously
repeat all – plays the entire CD continuously
1 During playback, select your play mode by pressing
PROG MODE once or more until the desired play
mode is shown.
™ Display: your selected mode flashes 2 seconds
before playback
• You can use ∞ or § to skip tracks during the
shuffle/ repeat modes.
• The shuffle/ repeat play options can be combined
and used with a programme: e.g. shuffle/ repeat all
repeats the entire CD programme in random order.
2 To return to normal playback press PROG MODE
until the shuffle/ repeat modes are no longer
shown.
• You can also press 9 to quit the play mode.
CD PLAYER
Programming track numbers
You may store up to 20 tracks in the desired
sequence. If you like, store any track more than once.
1 In the STOP mode, press ∞ or § for your desired
track.
2 When your chosen track number appears, press
PROG MODE once to store the track.
™ The display shows prog and prog briefly
followed by your selected track number. (See 9)
™ If you attempt to programme without first
selecting a track number, no sel is shown.
(See 0)
3 Repeat steps 1 to 2 to select and store all desired
tracks in this way.
™ full is displayed if you attempt to programme
more than 20 tracks.(See !)
4 To play your programme, press 2;.
Reviewing your set programme
• In the STOP mode, press and hold down
PROG MODE for more than one second.
™ The display shows all your stored track numbers
in sequence.
Erasing a programme
You can erase the contents of the memory by:
– opening the CD door;
– selecting TUNER source;
– pressing 9 (twice during playback or in the stop
position
™ Display: shows no prog briefly when the
programme is cancelled.(See @)
MAINTENANCE & SAFETY
Precautions & General Maintenance (See $)
• Place the set on a hard and flat surface so that the
system does not tilt.
• Do not expose the set, batteries or CDs to
humidity, rain, sand or excessive heat caused by
heating equipment or direct sunlight.
• Do not cover the set. Adequate ventilation with a
minimum gap of 6 inches between the ventilation
holes and surrounding surfaces is necessary to
prevent heat build-up.
• The mechanical parts of the set contain self-
lubricating bearings and must not be oiled or
lubricated.
• To clean the set, use a soft dry cloth. Do not use
any cleaning agents containing alcohol, ammonia,
benzene or abrasives as these may harm the
housing.
CD player and CD handling (See %)
• The lens of the CD player should never be touched!
• Sudden changes in the surrounding temperature
can cause condensation to form and the lens of
your CD player to cloud over. Playing a CD is then
not possible. Do not attempt to clean the lens but
leave the set in a warm environment until the
moisture evaporates.
• Always close the CD door to keep the CD
compartment dust-free. To clean, dust the
compartment with a soft dry cloth.
• To clean the CD, wipe in a straight line from the
centre towards the edge using a soft, lint-free
cloth. Do not use cleaning agents as they may
damage the disc.
• Never write on a CD or attach any stickers to it.
