iVistaTablet Digital Ink Pad+ User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Digital Ink Pad+
User Manual
Page | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digital Ink Pad+ and is the answer not in the manual?

Questions and answers

Related Manuals for iVistaTablet Digital Ink Pad+

Summary of Contents for iVistaTablet Digital Ink Pad+

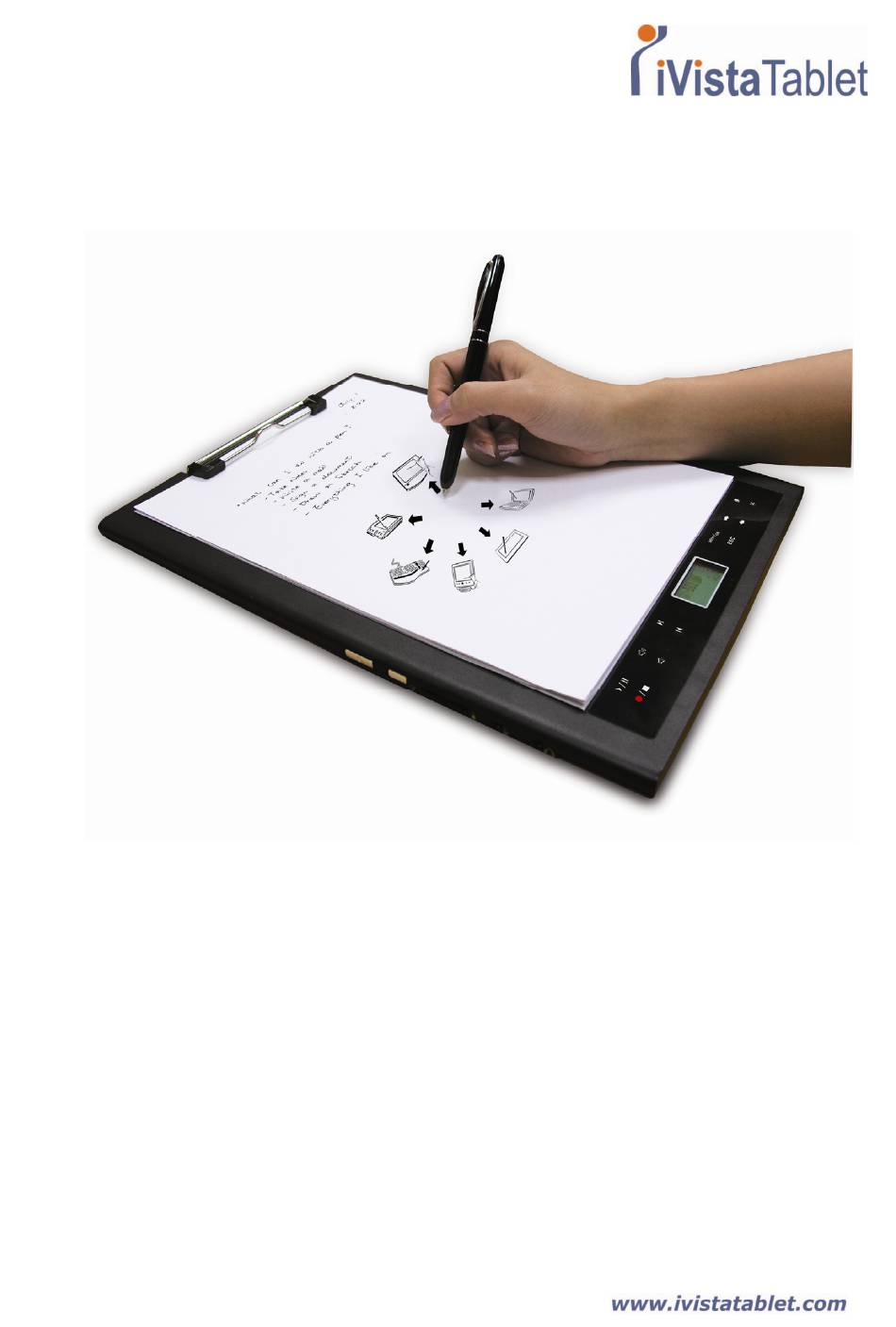

  • Page 1 Digital Ink Pad+ User Manual Page | 1...
  • Page 2 Welcome. Dear user, thank you for purchasing this product. Much investment in time and effort has gone into its development, and it is our hope that it will give you many years of trouble-free service. Notice 1. Purchasing new ink cartridges: The dimension of the pen cartridge is 2.3~2.4mm (diameter) x 67mm (length).

  • Page 3: Getting Started

    Getting Started The Digital Ink Pad+ is a handy device that captures your handwriting. While you take notes on paper, the Digital Ink Pad+ also digitally records everything you write or draw, so that you can present or edit your work on the computer. Besides, the Digital Ink Pad+ can also serve as a regular tablet.

  • Page 4: Package Contents

    Package Contents ‧ Digital Ink Pad+ ‧ Digital Ink Pen ‧ Notebook ‧ 2 x replacement ink cartridges ‧ USB cable ‧ ZA13 (hearing aid type ) battery ‧ Quick start guide ‧ Software CD Page | 4...
  • Page 5 The parts of Digital Ink Pad+ Front Note: The synchronized editing button can be used in the Free Note application to open the last file, record and edit files, refer to the Free Note manual for further information. When writing with the digital ink pen, the valid detectable height above the Digital Ink Pad+ is about 13mm (around 135 sheets), and the valid writing area is A4 sized.

  • Page 6: Lcd Panel

    LCD panel After the Digital Ink Pad+ is turned on, you can see the following icons displayed on the LCD panel: (a) Folder (A ~ Z). (b) Page number (1 ~ 999). Current page contains contents. Current page is blank. (d) Appears when writing with the digital ink pen.
  • Page 7 The digital ink pen Battery Installation Unscrew the rear tube from the front tube. Install the supplied ZA13 (hearing aid type ) battery into the battery compartment and screw it onto the rear tube until tight. You can then depress the top of the pen and start using it. Changing the pen cartridge The cartridge compartment can contain up to two replacement cartridges.
  • Page 8 2. Pull out the old cartridge. Insert the pen tip into the clip hole in the cartridge compartment. Tilt the pen to grip the pen tip, and then gently pull out the old cartridge. Or you can use the accessory tweezers to pull out the old cartridge. 3.

  • Page 9: Inserting A Memory Card (Optional)

    Inserting a memory card (optional) In addition to the internal memory, the Digital Ink Pad+ can also store data on a Secure Digital (SD) card. To insert a memory card, gently push the card as indicated until the card reaches the end of the slot The SD card comes with a write-protect switch.
  • Page 10 Inserting a notebook To hold a sheet of paper on the Digital Ink Pad+, lift the paper clip upward and place the paper on to the surface of the pad. Then release the paper clip to hold. Page | 10...
  • Page 11 Using your Digital Ink Pad+ Turn the Digital Ink Pad+ on and off. To power on the Digital Ink Pad+, push the power button as indicated. Page | 11...

  • Page 12: Recording Your Handwriting

    Recording your handwriting Writing When you are using the digital ink pen to write or draw on the Digital Ink Pad+, the pen icon will appear on the LCD panel. Your handwriting will be captured when this pen icon is displayed on the LCD panel. Create a new blank page To create a new blank page, tap the button.

  • Page 13: Page Numbering

    Erase page contents To erase the digital contents of the current page, tap the button. A prompt will appear on the LCD screen. Use the buttons to select and tap the Menu/OK button to confirm. After the contents are erased, the page icon will become .

  • Page 14: Recording A Voice Memo

    make the page number distinctive. Memory When the memory full ( ) icon is displaying on the LCD panel, it means the internal memory or memory card (depending on which you are using) has no more space to store your digital pages. Under such circumstances, you should erase some unwanted content if you need to continue writing on the same page.
  • Page 15 moment will synchronically shown on the display and be recorded into the original digital file (.TOP). 1. Check if you have finished the FreeNotes software installation 2. Open FreeNotes software and the desired .TOP file from in the navigation bar and you can see the notes appear in the Document Window.

  • Page 16: Menu Functions

    4. Proceed to write your ink notes with Digital Ink Pad+ and Digital Ink Pen. 5. When the editing is finished, click Exit to close the window. Menu Functions Folder functions Create new folders To create a new folder, tap the button for more than 2 seconds or tap Menu/OK >...

  • Page 17: Play Audio

    is simply by tapping for more than 2 seconds and next folder in sequence is opened. Folders first need to be created (see below) before you can move to them. Play audio Play voice recording 1. Voice recordings can be heard through a PC when the Digital Ink Pad+ is connected via the USB cable.

  • Page 18: Deleting And Formatting

    Settings Clock The internal clock can be set by either synchronizing the digital tablet with a PC, see Connection Modes on page 13 or manually. To manually configure the time tap Menu/OK > > . Use the to move sequentially through the date. Tap Menu/OK to move forwards to the next field.

  • Page 19: Volume Bar

    LCD panel - Tap Menu/OK > > . Use the to increase and decrease the volume. Volume Bar Note that it takes 2 taps to fill a volume bar. So the 5 bars represent 10 increments. Connection Modes Transfer data between PC and tablet Transferring notes between the tablet and a PC requires the installation of the My Ink or Free Notes software suite, see the user manual included with the software for details on use.

  • Page 20: Defining Tablet Functions

    Before using the Digital Ink Pad+ as a tablet, you must install the tablet driver. Connecting the Digital Ink Pad+ to your PC 1. Power on your computer. Press the power button of your computer to turn it on. 2. Connect the Digital Ink Pad+ to the computer. Connect the mini connector of the USB cable into the Digital Ink Pad+, and then connect the other end into the USB socket of the computer.
  • Page 21 can be defined in the tablet control panel. 1. Double-click the “USB Tablet” icon on the system tray. Double-click on the “USB Tablet” icon to bring up the settings window. 2. Set unit and tracking mode. Unit: You can select “inch” or 1 “cm” as the default unit. Tracking mode: You can set the pointer tracking mode to “Pen”...
  • Page 22 Page | 22...
  • Page 23 Page | 23...
  • Page 24 Page | 24...
  • Page 25 Page | 25 82-803w92030 v3.0...
