FORMTEK Lockformer TDC-Notcher Operator's Manual page 7

CAUTION: Release foot switch immediately after cutting is completed. If foot
Δ
switch is kept depressed oil pressure will be at maximum setting of relief valve
and will cause unnecessary heating of oil and possible damage to pump.
Notching heads will notch the equivalent of 16 ga. Material (.062),
NOTE: Notching heads not required can be quickly deactivated by closing the
valve at the notch head. This makes heads not required inoperative.
ADJUSTING THE NOTCH DEPTH

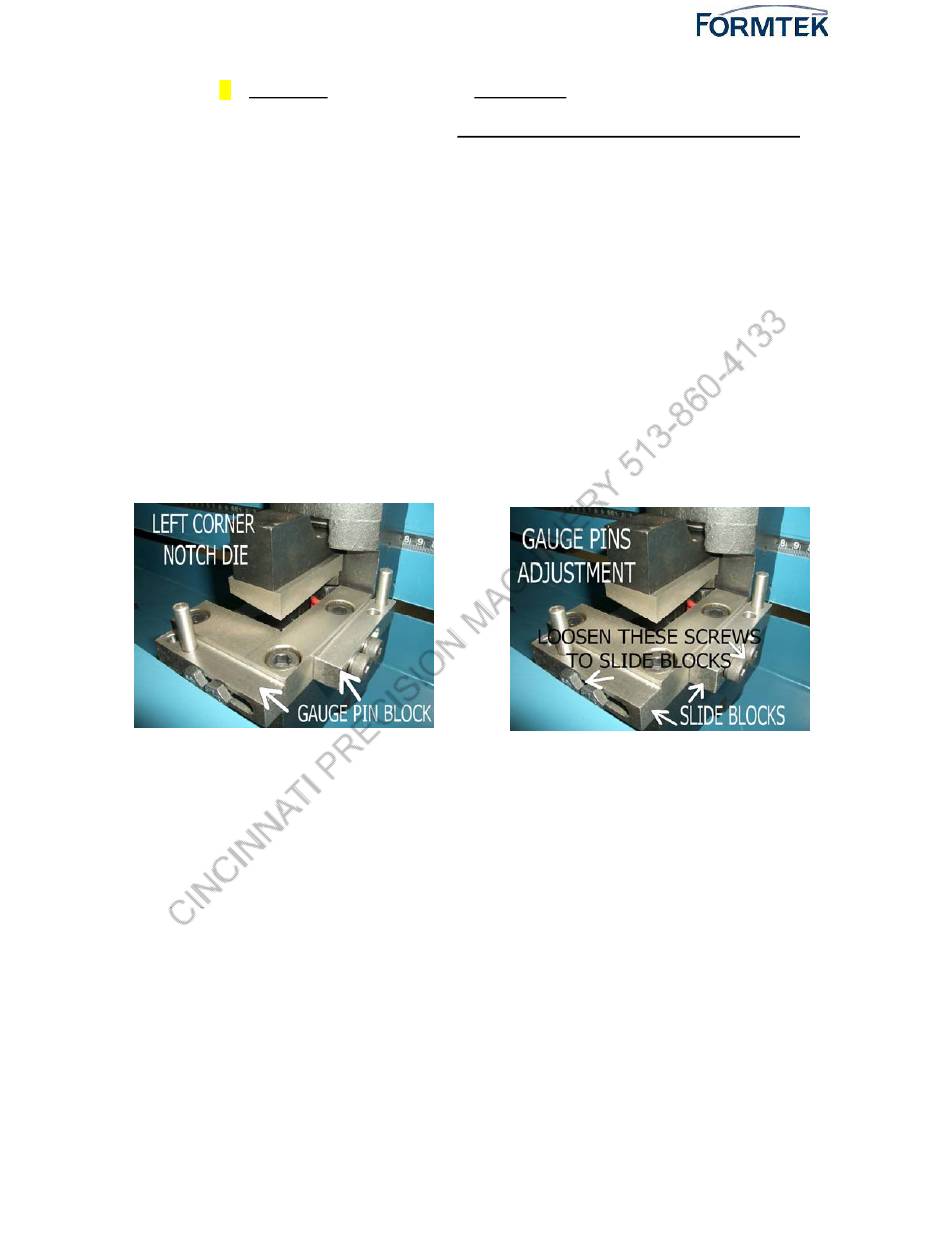

The notch depth can be adjusted by moving the gauge pin blocks or moving the pin to the next
hole.
1. Move the pin to the next hole. Moving the pin over should allow for either SMALL
PITTSBURGH or LARGE PITTSBURGH Notches.
2. Fine tuning the notch depth can be accomplished by loosening the screws that hold the blocks
and sliding the blocks in the desired direction to either add notch depth or subtract notch depth.
The gauge pin blocks are slotted for this purpose.
TDC NOTCH DEPTH - 2 7/16"inch (62mm)
TDF NOTCH DEPTH - 2/9/16inch (65mm)
VER. TDC-Notcher -CE 03-2006
