Summary of Contents for FORMTEK Lockformer TDC-Notcher

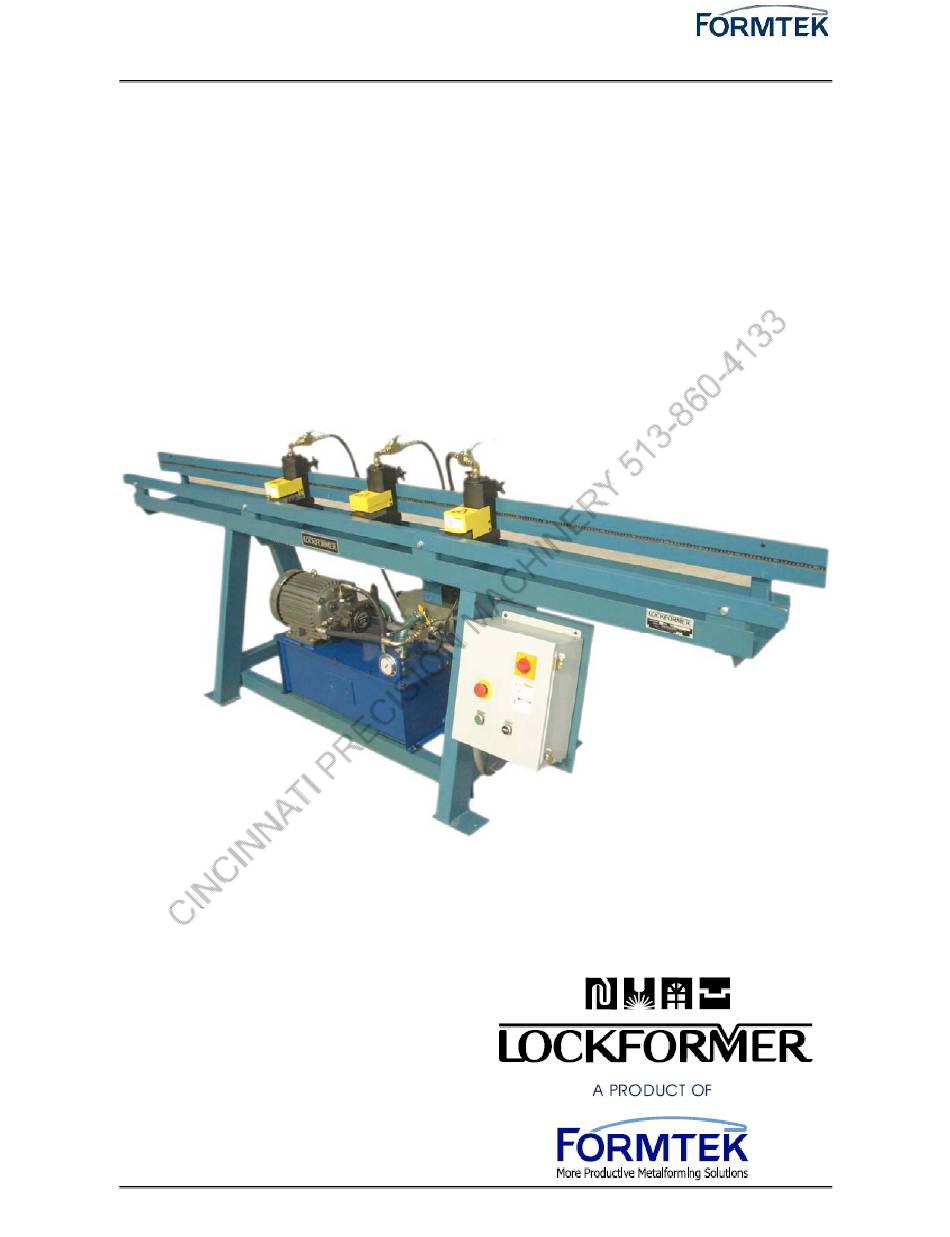

- Page 1 More Productive Metal Forming Solutions TDC-Notcher TDC Hydraulic Notcher OPERATOR’S MANUAL INSTRUCTIONS AND PARTS DIAGRAM PAGE 1 VER. TDC-Notcher -CE 03-2006...
-
Page 2: Safety Guidelines
More Productive Metal Forming Solutions WARNING THIS EQUIPMENT IS DESIGNED TO BE OPERATED WITH ALL COVERS SECURED IN PLACE. OPERATION WITHOUT THESE SAFEGUARDS MAY RESULT IN CONDITIONS WHICH ARE HAZARDOUS TO THE OPERATOR AND OBSERVERS. SAFETY GUIDELINES Before operating the machine, study and follow the safety precautions in this section. - Page 3 Replacement and maintenance parts must be purchased from FORMTEK or the component original equipment manufacturer. Use of other parts may result in unsafe operation or failure of the machinery. If there is a question to the suitability of a part, proper personnel FORMTEK should be consulted.
-
Page 4: Safety First
11 West 42nd Street New York, New York 10036 SOUND PRESSURE INFORMATION (noise levels) The Lockformer TDC-Notcher described in this manual has been tested for noise DB levels. At normal operating distance the machine should be no more then 85DB. YEAR OF MANUFACTURE PAGE 4 VER. -
Page 5: Installation
Provide a grounded 220/460V power supply at the point of operation. If a 380V motor is ordered, install the power supply in compliance with the local and national electric codes. For further information contact a certified electrician or the proper Formtek/Lockformer personnel. IMPORTANT: When starting unit check to see whether motor and pump rotation conforms to direction of arrows on motor and pump body. -
Page 6: Basic Operation
More Productive Metal Forming Solutions OPERATING INSTRUCTIONS ∆ DISCONNECT POWER BEFORE ATTEMPTING TO MAKE ANY ADJUSTMENTS ON THE MACHINE. Install power lock outs to prevent accidental start-up while working on the machine! The TDC NOTCHER has a Safety Lock-Out valve which is to be CLOSED (OFF) when ever the machine is serviced or adjusted. - Page 7 More Productive Metal Forming Solutions CAUTION: Release foot switch immediately after cutting is completed. If foot Δ switch is kept depressed oil pressure will be at maximum setting of relief valve and will cause unnecessary heating of oil and possible damage to pump. Notching heads will notch the equivalent of 16 ga.
-
Page 8: Maintenance
More Productive Metal Forming Solutions MAINTENANCE ∆ DISCONNECT POWER BEFORE ATTEMPTING TO MAKE ANY ADJUSTMENTS ON THE MACHINE. Install power lock outs to prevent accidental start-up while working on the machine! For proper maintenance of the hydraulic system, the oil should be kept clean and free of dirt or other foreign matter. - Page 9 More Productive Metal Forming Solutions TDC-Notcher PARTS PAGE 9 VER. TDC-Notcher -CE 03-2006...
- Page 10 More Productive Metal Forming Solutions PAGE 10 VER. TDC-Notcher -CE 03-2006...
- Page 11 More Productive Metal Forming Solutions PAGE 11 VER. TDC-Notcher -CE 03-2006...
- Page 12 More Productive Metal Forming Solutions PAGE 12 VER. TDC-Notcher -CE 03-2006...
- Page 13 More Productive Metal Forming Solutions PAGE 13 VER. TDC-Notcher -CE 03-2006...
- Page 14 More Productive Metal Forming Solutions PAGE 14 VER. TDC-Notcher -CE 03-2006...
- Page 15 More Productive Metal Forming Solutions Due to continuous improvements, FORMTEK reserves the right to modify the product design and specifications contained herein without notice. Please contact your Lockformer sales representative for the most current specification information. Use, publication, or sale of any images or content without the expressed written consent of FORMTEK is strictly prohibited.
