Mojave Audio MA-301fet Manual

Multi-pattern solid state condenser microphone
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Solid State Condenser Microphone
Please visit
www.mojaveaudio.com
• Recording Tips
• FAQ's
• Warranty Registration
• Customer Service
MA-301fet Multi-pattern
for more information including:
CONTENTS
2
2
3
3
3
4
5
6
6
7
7
7
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA-301fet and is the answer not in the manual?

Questions and answers

Related Manuals for Mojave Audio MA-301fet

Summary of Contents for Mojave Audio MA-301fet

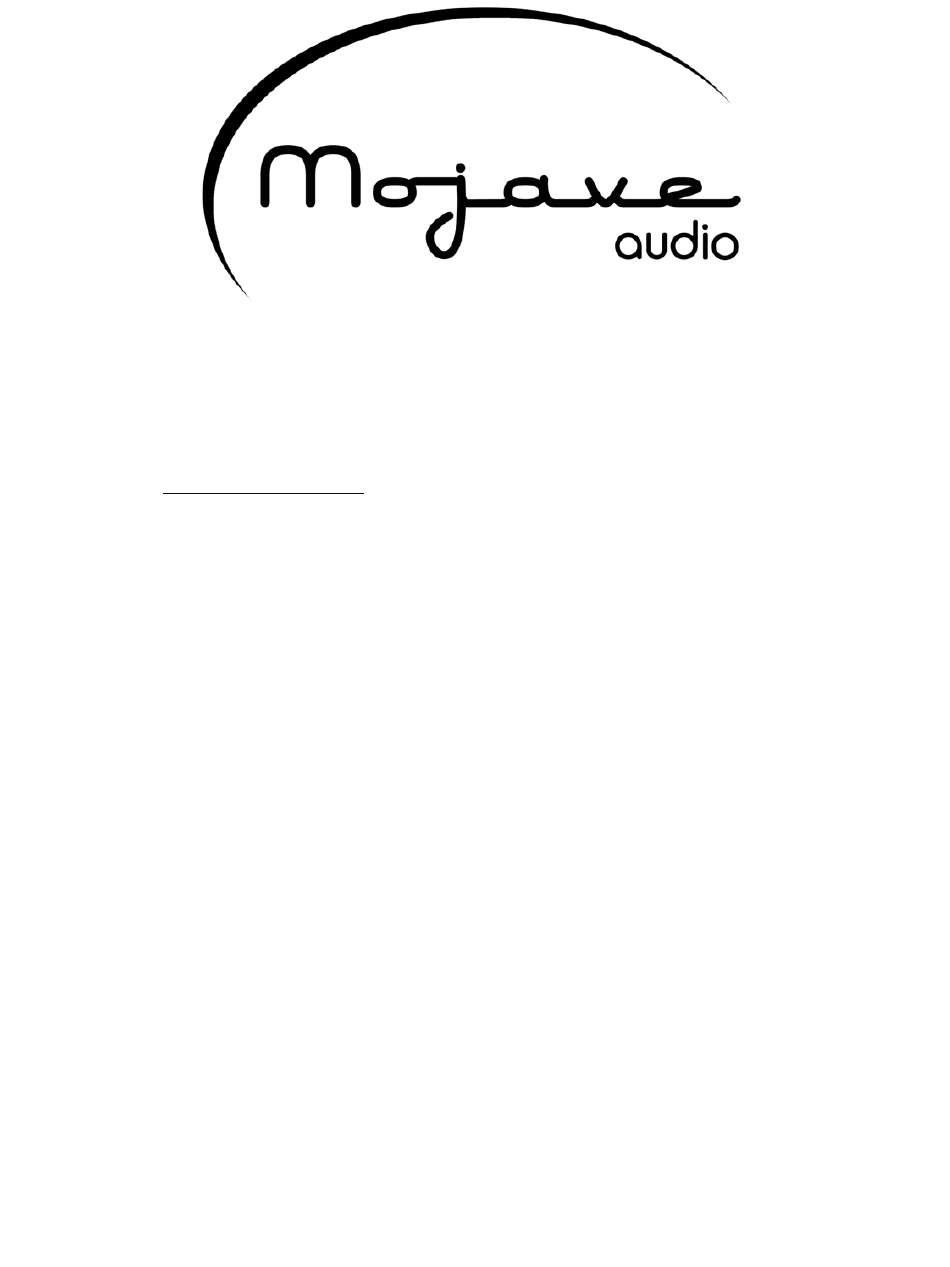

  • Page 1 MA-301fet Multi-pattern Solid State Condenser Microphone Please visit www.mojaveaudio.com for more information including: • Recording Tips • FAQ’s • Warranty Registration • Customer Service CONTENTS INTRODUCTION! UNPACKING AND INSPECTION! GENERAL INFORMATION! SAFETY INSTRUCTIONS ! OPERATION! CARE OF YOUR MICROPHONE! TECHNICAL SPECIFICATIONS!

  • Page 2: Introduction

    Condenser Microphone. Your MA-301fet was carefully designed and constructed using only the finest materials. The MA-301fet microphone is capable of delivering superb performance and, with minimal care, will do so for many years. Your MA-301fet was thoroughly tested and given a 24-hour factory burn in prior to shipment.

  • Page 3: General Information

    Never expose the MA-301fet microphone to water or any environment that may create an electrical hazard. In the event of a malfunction, disconnect the MA-301fet immediately and determine the nature of the malfunction before attempting to use it again.

  • Page 4: Care Of Your Microphone

    4. Do not expose the microphone to dusty, smoky or humid environments. 5. Any repairs must be performed by a qualified technician. There are no user serviceable parts in the MA-301fet. 6. Use a soft, lint free cloth to remove fingerprints and other blemishes on the microphone body.

  • Page 5: Technical Specifications

    TECHNICAL SPECIFICATIONS TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor, dual membrane DIAPHRAGM: 1-inch diameter, gold sputtered DIAPHRAGM THICKNESS: 3-micron POLAR PATTERN: Switchable between omnidirectional, cardioid and figure- eight FREQUENCY RESPONSE: 20 Hz-20kHz, + 3dB at ‘Flat’ setting. Bass cut switch provides 6dB per octave attenuation below 100Hz in ‘cut’...

  • Page 6: Polar Response

    POLAR RESPONSE Type: Multi-pattern FREQUENCY RESPONSE 20Hz – 20kHz, ± 3dB...

  • Page 7: Polar Pattern Selector

    POLAR PATTERN SELECTOR The three position polar pattern selector is a three-way switch found on the front side of the microphone. The selector allows the user to choose omnidirectional, cardioid or figure eight patterns. Omnidirectional: Left position. An omnidirectional polar pattern covers all directions and picks up all sound in a 360 degree radius.

  • Page 8: Warranty

    Please visit mojaveaudio.com to register your microphone and for the latest updates and technical information. Your Mojave Audio product is warranted to the original owner for a period of two years. Mojave Audio guarantees this product to be free from electrical and mechanical defects and will repair or replace defective components, or replace the microphone at Mojave Audio's option.
