125LB ATV RECEIVER
MOUNT SPREADER
Model AS-125ATV12
08022013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-125ATV12 and is the answer not in the manual?

Questions and answers

Luke D
March 8, 2025

Trying to find parts related to the spreader

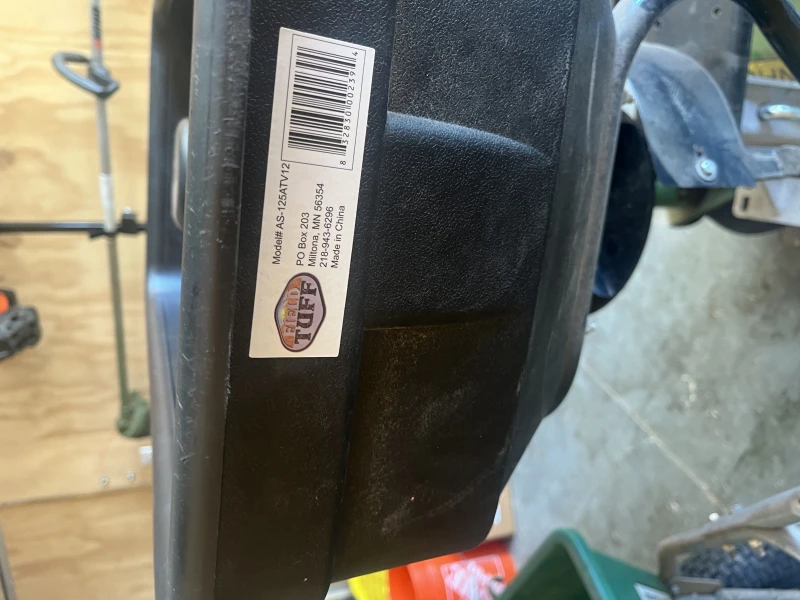

User image 67cc9724c9d67
1 comments:
Mr. Anderson
March 8, 2025

A replacement motor for the Field Tuff AS-125ATV12 spreader is available. The model number for the motor is TRI-AS-125ATV12-54.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Field Tuff AS-125ATV12

  • Page 1 125LB ATV RECEIVER MOUNT SPREADER Model AS-125ATV12 08022013...
  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS Be sure to wear safety glasses, a dust mask, and proper clothing to prevent coming in contact with any chemicals or dangerous materials that are being applied by this spreader. Make sure to remove any contents that are in the spreader’s hopper before attaching, detaching, or lifting this unit.
  • Page 3 Note: Settings for this product need to be determined by user since factors such as coarseness and density of “material used” affect the spread rates See page 3 “rate material used affect the spread rates. See page 3 rate worksheet” to calculate approximate spread rates. When Rate settings are not available, follow these guidelines to calculate spread rates: On the bag of material to spread...
  • Page 4 On the bag of material to spread, you will find recommended spread rates, usually in terms to the effect of: so many pounds will cover so many sq. ft. Find your Desired Application (spread) Rate Example: To find your desired rate, divide the area (sq. ft.) that bag of material covers by the weight of the bag of material itself.
  • Page 5: Carton Contents

    Carton Contents NOTE: If you have questions, problems, or missing parts please call our customer service before returning to your retailer. Contact us at 218-943-6296 ,8 a.m.-5 p.m., Monday-Friday CST.
  • Page 6 Assembly Instructions Step 1: 1. Connect the deflector plate (#16) to the crossbeam tube (#17) using hex bolt M6x16 (#5), hex lock nut M6 (#15) and big flat washer Ø6 (#4). And then tighten them. 2. Connect the crossbeam tube (#17) , connecting rod (#18) and hopper assemble tube (#14) using hex bolt M6x40 (#3), hex lock nut M6 (#15) and flat washer Ø6 (#50).
  • Page 7 Step 2: Assemble the connecting tube assembly (#25) and extension tube (#28) using “U” bolt (#29), lock washer Ø12 (#26) and hex lock nut M12 (#27), then tighten it. NOTE: extension tube (#28) can be reversed to fit 1.25” or 2”...
  • Page 8 Step 3: Connect the hopper assemble tube (#14) and spacer plate(#21) using hex bolt M6x40 (#3), hex bolt M6x20 (#20) ,hex lock nut M6 (#15) and flat washer Ø6 (#50). Fully tighten.
  • Page 9 Step 4: Assemble the connecting tube assembly (#25) and hopper tube assembly (#14) using hex bolt M10x25 (#22), lock washer Ø10 (#23) and flat washer Ø10 (#24) Fully tighten washer Ø10 (#24). Fully tighten.
  • Page 10 Step 5: 1. Pull out the switch box on the cable assembly , insert switch into the hole on the gauge base plate , then plug-in the cable, and connect the other end of the cable with the cable on the motor. 2.
  • Page 11 Step 6: 1. Connect the hopper assembly (#6) and hopper assemble tube (#14) using hex bolt M6x40 (#3),big flat washerØ6(#4) and hex lock nut M6 (#15), then tighten. 2. Connect the gauge base plate(#31) center spacer busing(#30) and hopper assembly (#6) using hex bolt M6x60(#60), big flat washer Ø6 (#4) and hex lock nut M6 (#15), then Connect the lower hole of gauge base plate (#31) and hopper assembly (#6) using hex bolt M6x16(#5) and hex lock nut M6 (#15).
  • Page 12 Step 7: Tighten all the nuts and bolts.
  • Page 13: Exploded Diagram

    Exploded Diagram...
  • Page 14: Part List

    Part List REF# DESCRIPTION REF# DESCRIPTION Fixed Plate RivetΦ5x13 Big Flat WasherΦ5 Gauge Base Plate Hex Bolt M6x40 Step Bolt M6X25 External Teeth Lock Washer Φ8 Big Flat WasherΦ6 Hex Bolt M6x16 Nylon Washer Hopper Assembly Gauge & Level Assembly Wire Clamp Wire Clamp Adjustable Handle...
  • Page 15: Warranty

    For replacement parts and technical questions, please call 1-218-943-6296. WARRANTY One-year limited warranty PO Box 203 Miltona, MN 56354 Made in CHINA...
