NuAire COOKERHOODC-SS-B Installation And Maintenance

1.0 Introduction

The Nuaire high performance Cooker Hood Extract Fan has
298 m³/hr extraction capacity. It incorporates a simple push button
control to generate speed and lighting. A non-return flap is included in
the unit.
Maximum Noise Level: 63 dB.
Casing shall be manufactured from easy to clean stainless steel.
The unit is fitted with two, washable metallic grease filters for quick and
easy maintenance.
Code Description appliance: COOKERHOODC-SS-B

2.0 Dimensions

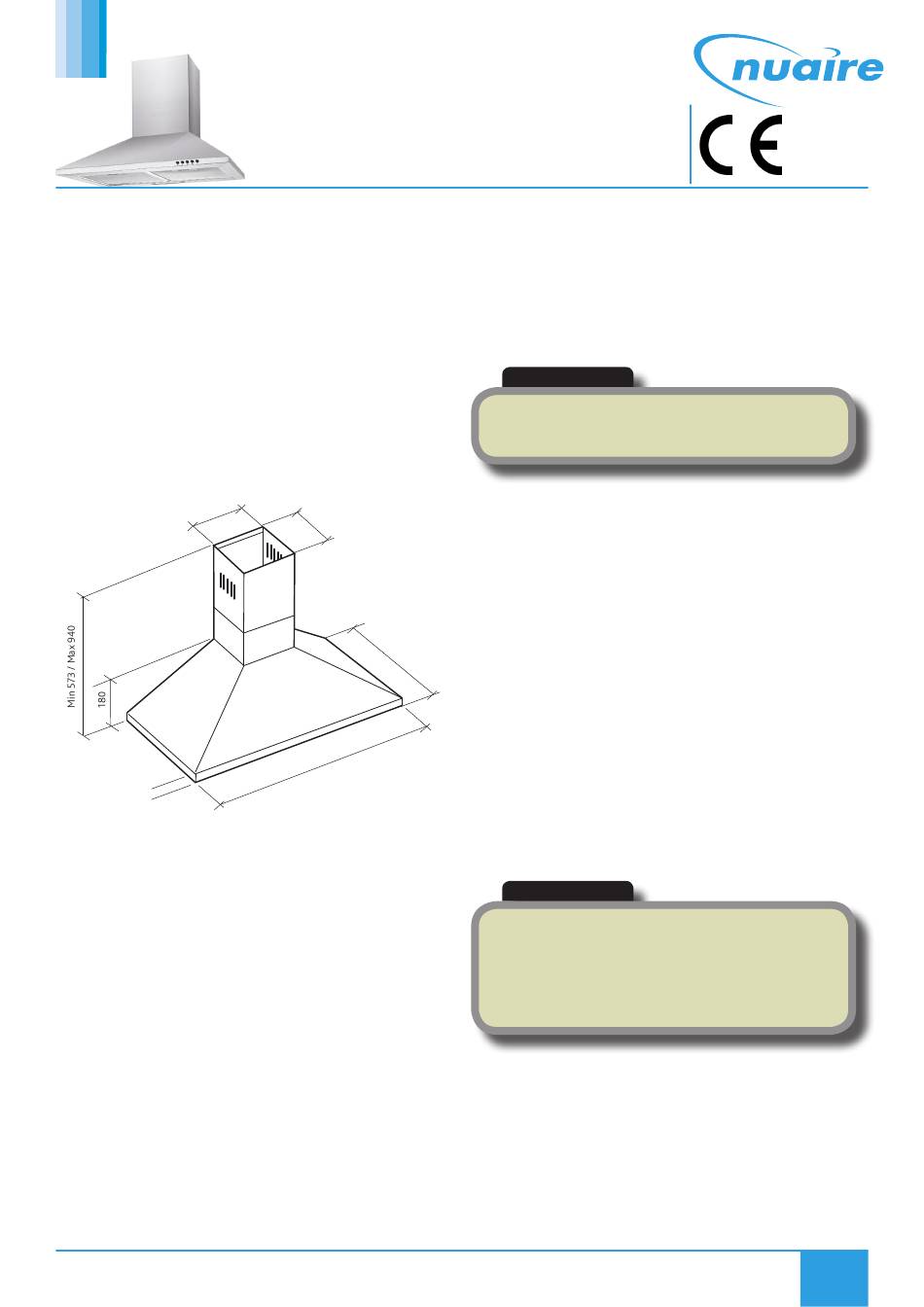

Figure 1. COOKERHOODC-SS-B Dimensions
222mm
20mm
Product Dimensions:
Height: 573mm - 940mm
Width: 600mm
Depth: 480mm
Chimney Section Dimensions:
172mm x 222mm

3.0 Installation

Installation must be carried out by competent personnel conforming to
all statutory and governing regulations. Electrical connection should be
undertaken by a qualified electrician.
The unit is designed for internal wall mounting (minimum two people)
in the vertical plane with the grease filters directly above the cooker
hob top/burners and is for domestic use only.
When installing the unit, the cooker hood should be placed at a
distance of 650-750mm above the cooking plane for best effect.
nuaire.co.uk 029 2085 8400
COOKERHOODC-SS-B
High Performance Extract Fan
Installation and Maintenance
172mm
480mm
600mm
If the unit is installed for use above a gas appliance then the provision
for ventilation must be in accordance with the Gas Safety Codes of
Practice BS.6172, BS.5440 & BS.6891
(Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation
and Use) Regulations, the Building Regulations issued by Department
of the Environment, the Building Standards (Scotland) (Consolidated)
Regulations issued by the Scottish Development Department.
Do not alter or modify the specifications of this product in any way.
IMPORTANT
Before commencing work on the hood,
including replacing light bulbs make sure that the unit has
been disconnected from the power supply.

3.1 General Installation

When installed between adjoining wall cabinets, the cabinets must not
overhang the hob.
The edges of the cooker hood are sharp - so handle the unit with care,
especially during installation and cleaning.
If the room where the cooker hood is to be used contains a fuel burning
appliance such as a central heating boiler then its flue must be of the
sealed or balanced flue type. If other types of flue or appliances are
fitted, ensure that there is an adequate supply of air in the room.
To ensure high extraction efficiency of the hood, ensure that the
ducting is fire retardant and bends are no more than 90 degrees. Also
ensure the ducting for the extractor function has the same diameter as
the outlet hole all the way through.
The cooker hood should not be exposed to a direct heat source from
the cooking device under it i.e. a naked flame from a gas burner or heat
from electric hobs without a pan on them.
Lights on the appliance should only be left on when using the unit.
IMPORTANT
Before installation, ensure the voltage (V) and frequency (Hz)
indicated on the rating plate are exactly the same as the
voltage and frequency of the home. The rating plate is on
inside of the hood behind the grease filters. Connect the unit
to the mains supply after the rest of the installation process
has been completed.
05. 03. 19. Document Number 671919
The EMC Directive
2014/30/EU
The Low Voltage
Directive
2014/35/EU
1
