NuAire COOKERHOODC-SS Installation And Maintenance

1.0 Introduction

The Nuaire high performance Cooker Hood Extract Fan has
500m 3 /hr extraction capacity through a tangential motor.
It incorporates a simple push button control to generate
speed and lighting.
Noise level: 54 - 62 dB.
Casing shall be manufactured from easy to clean stainless
steel.
The unit is fitted with two, washable metallic grease filters for
quick and easy maintenance.
Code Description appliance: COOKERHOODC-SS
Code Description Carbon filter: CKRH-CF (Pair)

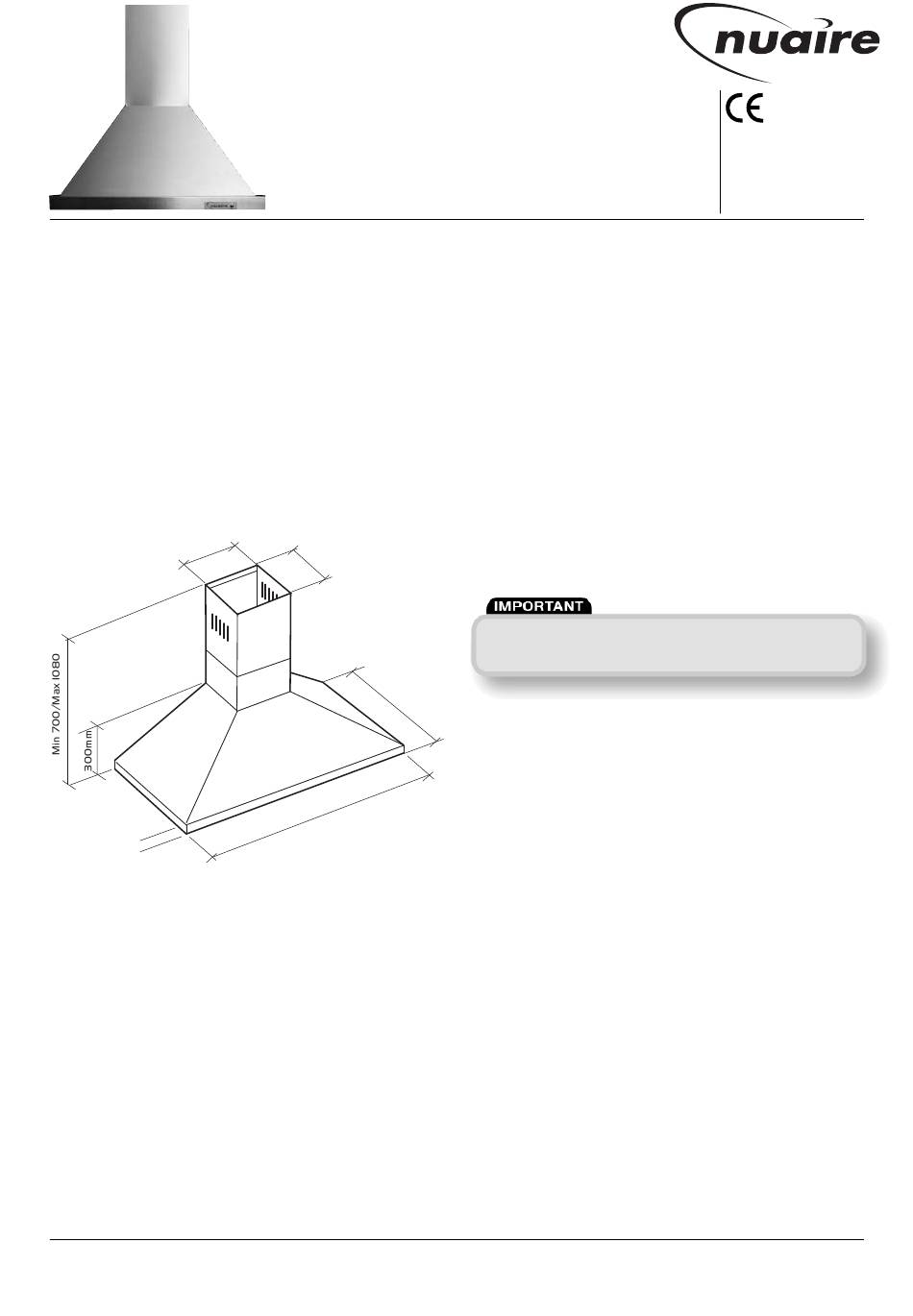

2.0 Dimensions

Fig.1.
221mm
40mm
Product Dimensions:
Height: 700mm - 1080mm
Width: 600mm
Depth: 500mm
Chimney Section Dimensions:
170mm x 221mm

3.0 Installation

Installation must be carried out by competent personnel
conforming to all statutory and governing regulations.
Electrical Connection should be undertaken by a qualified
electrician.
The unit is designed for internal wall mounting (minimum two
people) in the vertical plane with the grease filters directly above
the cooker hob top/burners and is for domestic use only.
Nuaire: A Trading Division of Polypipe Limited Western Industrial Estate Caerphilly United Kingdom CF83 1NA
T: 029 2088 5911 F: 029 2088 7033 E: info@nuaire.co.uk W: www.nuaire.co.uk
COOKERHOODC-SS
High Performance Extract Fan
Installation and Maintenance
Note: when installing the unit ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood.
Electric cookers 700mm
Gas cookers
Coal/oil cookers 800mm
If the unit is installed for use above a gas appliance then the
provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891
(Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety
(Installation and Use) Regulations, the Building Regulations
issued by Department of the Environment, the Building
Standards (Scotland) (Consolidated) Regulations issued by
the Scottish Development Department.
Do not alter or modify the specifications of this product in
170mm
any way.
500mm
3.1 Installation of the unit (general)
■
■
600mm
■
■
■
■
1
700mm
Isolation - Before commencing work on the hood, including
replacing light bulbs make sure that the unit has been
disconnected from the power supply.
When installed between adjoining wall cabinets, the
cabinets must not overhang the hob.
The edges of the cooker hood are sharp - so handle the
unit with care, especially during installation and cleaning
Do not clean in behind the grease filters.
If the room where the cooker hood is to be used contains
a fuel burning appliance such as a central heating boiler
then its flue must be of the sealed or balanced flue type.
If other types of flue or appliances are fitted, ensure that
there is an adequate supply of air in the room.
To ensure high extraction efficiency of the hood ensure
that the ducting is fire retardant and bends are no more
than 90 degrees. Also ensure the ducting for the extractor
function has the same diameter as the outlet hole all the
way through.
The cooker hood should not be exposed to a direct heat
source from the cooking devise under it i.e. a naked flame
from a gas burner or heat from electric hobs without a pan
on them.
Lights on the appliance should only be left on when
using the unit.
The EMC Directive
2014/30/EU
The Low Voltage
directive
2014/35/EU
09. 05. 17. Leaflet Number 671403
