INSTALLATION INSTRUCTIONS
Parts Included
1. One Aluminum Canister with Polyester Screen (PART
2. Two Shower Rails (PART
3. Two End Caps (PART

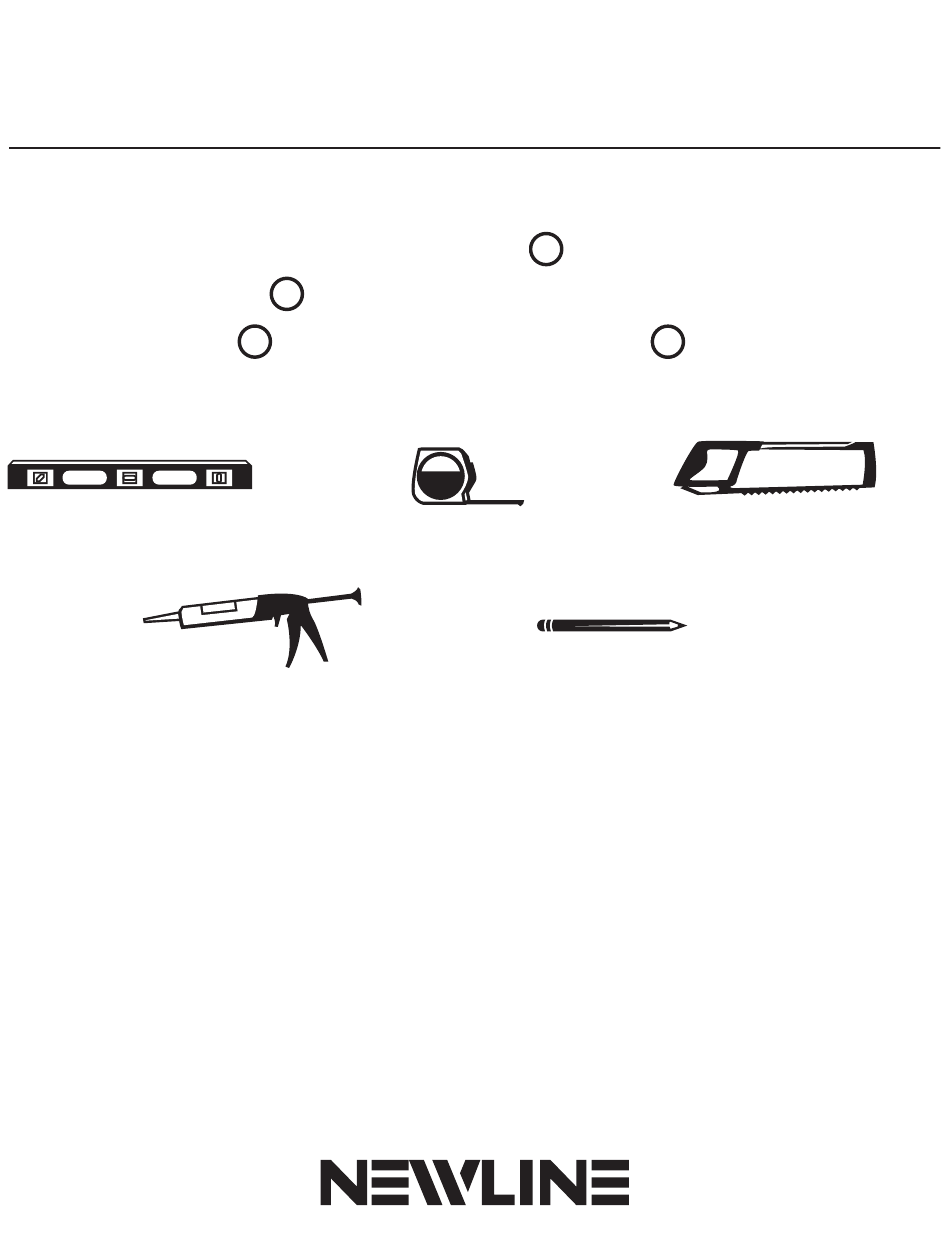

Tools Required
Level
Caulk
Before Installation
• Clean surface.
• Measure wall to wall both top and bottom to make sure they are equal (1/4" difference per side
allowed). If more than 1/4" attach double-sided foam tape behind part of the shower screen
frame to adjust.
www.newlinebathroom.com
B
)
C
) attached to One Side Extrusion (PART
Check our website
and see an installation video.
www.newlinebathroom.com
®
Screen
A
)
Tape Measure
• 1 •
D
)
Metal Handsaw
Pencil
